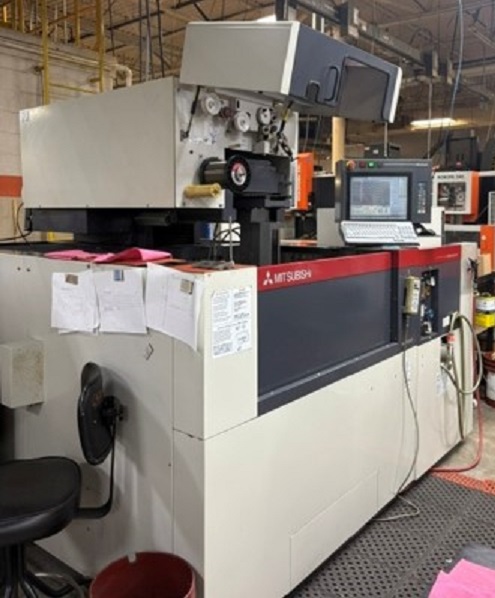

Mitsubishi FA-20S Advance Wire EDM

Stock Number: 0503

Mitsubishi FA-20S Advance

Age: 2010

Condition: As Is, Where Is

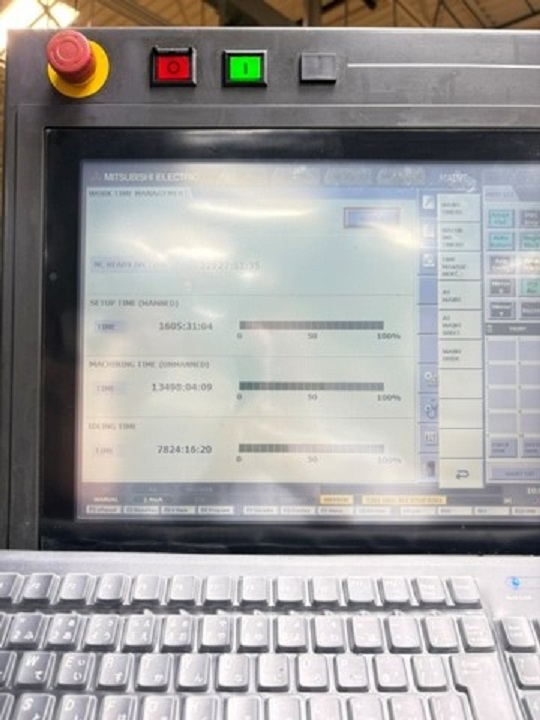

The FA Advance Series features the new M700 series control with 15" touch screen, providing easy user interface and many features that will Advance your edm machining. It also showcases Mitsubishi's continuous dedication to high precision. Die machining has never been as simple as it is now, with the S Series' anti-electrolysis technology. SL (Step Less) Control, developed with the FA-S Series, is a standard feature of the new S Series. PM5's new stepped shape capabilities have made machining multiple parts with varying thicknesses and shapes faster and easier, saving up to 50% machining time over previous models.

Click to view larger photo

Specification	Description
Machining Stroke ( X x Y x Z )	19.7" x 13.8" x 11.8"
Machining Stroke ( U x V )	+/- 3.0"
Maximum Workpiece Size	41.3" x 31.5" x 11.6"
Table Size	30.7" x 24.8"
Tank Dimensions	42" x 32" x 12"
Taper Capacity	+/-30 Degrees
Taper Angle @ Thickness	15 deg @ 10.5"
Maximum Workpiece Weight	3,300 Lbs
Maximum Drive Unit / Resolution	0.00001mm / 2 Millionths
Min Hole Diameter	.02"
Wire Diameter	0.004 - .012"
Max. Wire Spool Size STD (Optional)	22 Lb (44 Lbs)
Approximate Machine System Dimensions	101.5" L x 109.0"W x 84.6"H
Approximate Machine System Weight	9,116 Lbs

Equipped With:
* Mitsubishi M700 CNC Control * Submerged Machining Capability * Automatic Wire Threader * Automatic Fluid Level Control * Auto-Lock Vertical Tank Door Mechanism * Fine-Grain Dianite Casting Material * Moving Column Design * DC-Servo (Closed Loop) Torque Control Wire Tensioning System: * Direct Drive 32mm Ball Screws * Linear Motion Guide Ways * New Digital 500 Watt AC Servo Drive System * All-Axes Absolute Control System * Linear Glass Scales * Fine Resolution Encoder Feedback * Standard Long Travel 3-Inch U-V Taper Unit * 16 Step Programmable Flushing Control * Wire Chopper * Filtration System * Electric Chiller * All Available Manuals and Accessories ** Optional Consumable Starter Package $2,450 4 Spools of .010" Diameter Brass Wire - 13.2 lbs (WNG.25HW.P5/6KG - 1 case) 4 Filters - 5 Micron Paper Filter (A262) 1 Dual Canister DI Resin Cart w/Prefilter 4 Resin Socks - 1/2 cu ft Regenerated Resin (ZBDR) ** Optional 20KG (44lbs) Large Spooler Available $3,400 (#8135)
