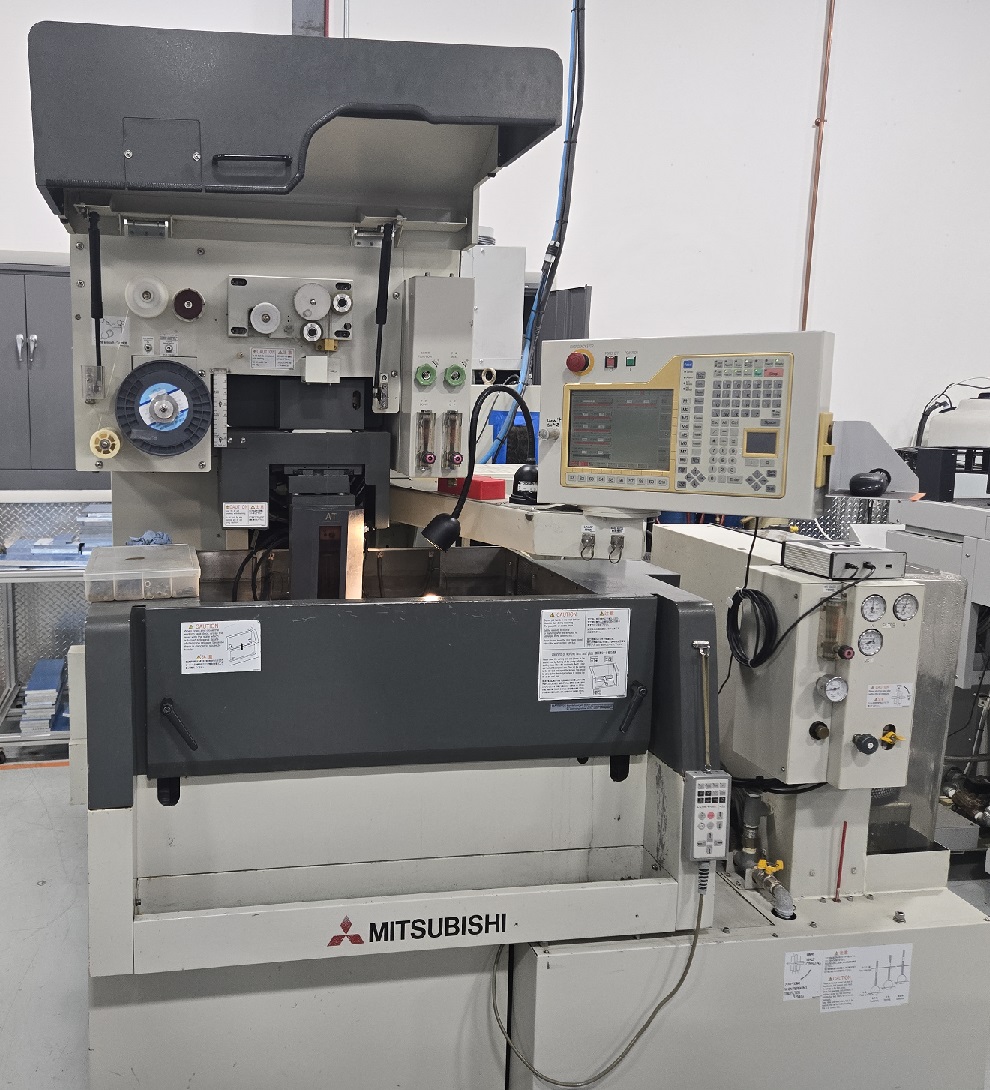

Mitsubishi FA-10 Wire EDM

Stock Number: 0501

Mitsubishi FA10

Age: 2001

Condition: As Is, Where Is

The FA Series showcases Mitsubishi's continuous dedication to high precision. Die machining has never been as simple as it is now, with the FA Series' anti-electrolysis technology. Power Master makes parts with varying thicknesses and shapes faster and easier, saving up to 50% machining time over previous models

Click to view larger photo

Specification	Description
Machining Stroke (X x Y x Z)	13.8" x 9.8" x 8.6"
Table Size	23.2" x 20.2"
Maximum Workpiece Size	31.5" x 23.6" x 8.5"
Maximum Workpiece Weight	1,105 lbs
Machining Stroke (U x V)	ą1.25" x ą1.25"
Taper Capacity	+-30 deg max / +-15deg @ 4"
Wire Diameter Range Possible	0.006"~0.012"
Wire Guides Included.	.010"
Min Hole Diameter for Autothread	.020"
Max Wire Spool Size	22Lbs
Filter Tank Capacity	116 gal
Approximate Overall Dimensions	77.7" x 81.6" x 80.71"
Approximate Machine Weight	4,400 lbs

Equipped With:

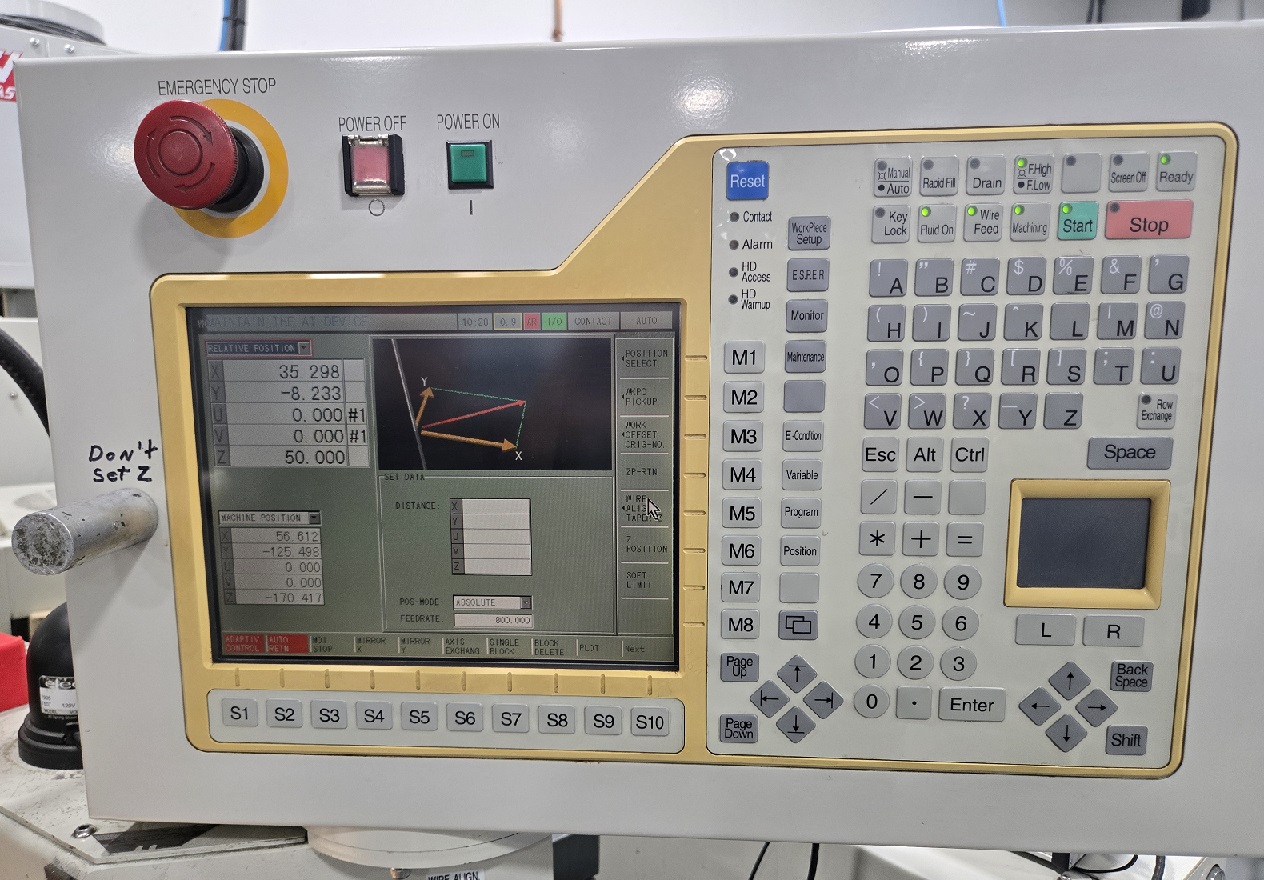

* Mitsubishi 64 Bit PC Based CNC Control * Submerged Machining Capability * Automatic Wire Threader (AT) * Wire Chopper * Automatic Fluid Level Control * Auto-Lock Vertical Tank Door Mechanism * Full 4-Sided Work Table * Color CRT With 3D Graphics * Power Master Control (Automatically Adjusts Power Settings) * Standard Hand Pendant Control * Fine-Grain Dianite Casting Material * Moving Column Design * Auto Lube System * Filtration System * Electric Chiller System: * Direct Drive 25mm Ball Screws * Linear Motion Guide Ways * AC Servo Drives * Fine Resolution Encoder Feedback * All Available Manuals and Accessories ** Optional Consumable Starter Package $2,450 4 Spools of .010" Diameter Brass Wire - 13.2 lbs (WNG.25HW.P5/6KG - 1 case) 4 Filters - 5 Micron Paper Filter (A262) 1 Dual Canister DI Resin Cart w/ Prefilter 4 Resin Socks - 1/2 cu ft Regenerated Resin (ZBDR) ** Optional 20KG (44lbs) Large Spooler Available $3,400 (#8135)
