Mitsubishi FA-20 Wire EDM

Stock Number: 0496

Mitsubishi FA-20

Age: 2004

Condition: As Is, Where Is

The FA Series is Mitsubishi Electric's newest wire EDM machine that supplies customers the optimum solution by incorporating the world's fastest technologies. This machine series sets new standards that thoroughly pursue the goal of "Fast, Easy, and Reliable" operation. It also showcases Mitsubishi's continuous dedication to high precision. Features: * 10 Second Threading System * AT Device for Various Wire Types including Coated Wires * Wire Break-point Insertion and Submerged Threading * New-style Wire Tension System * AT Self-cleaning Process * VF Monitor - Real-time Cutting Speed Graphic * New-style Work Tank Seal Plate Mechanism

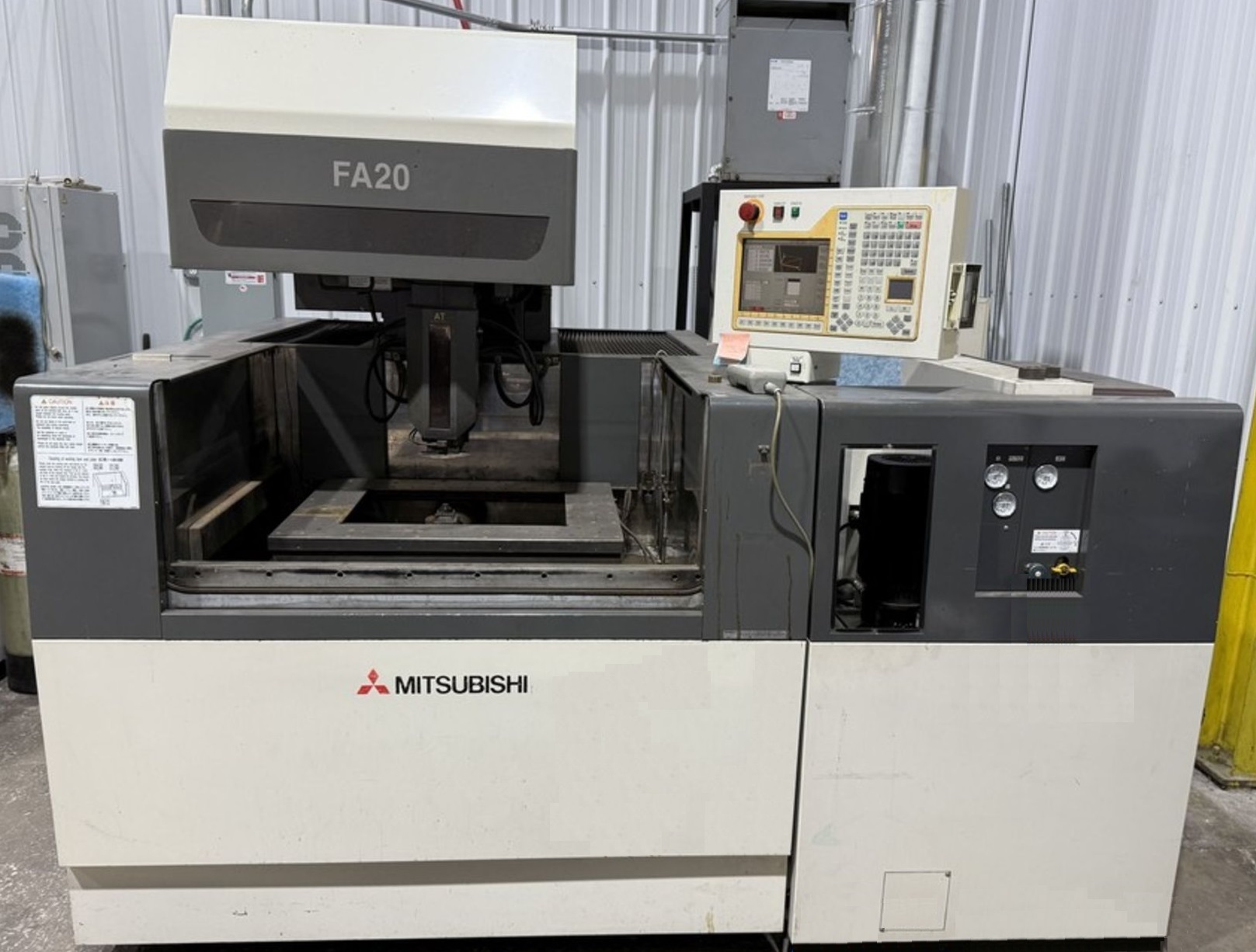

Click to view larger photo

Specification	Description
Machining Stroke ( X x Y x Z )	13.7" x 19.6" x 11.8"
Machining Stroke ( U x V )	+/- 1.25"
Maximum Workpiece Size	41.3" x 31.4" x 11.8"
Table Size	30.7" x 24.8"
Tank Dimensions	42" x 32" x 12"
Taper Capacity	+/-30 Degrees
Taper Angle @ Thickness	15 deg @ 3.93"
Maximum Workpiece Weight	1,763 lbs
Maximum Drive Unit / Resolution	0.00001mm / 2 Millionths
Wire Diameter Capability STD (Optional)	.008" - .012" (.004" - .006")
Wire Guides Included	.010"
Max. Wire Spool Size STD (Optional)	22 lb (44 lb)
Dielectric Water Capacity	190 gal
Approximate Machine System Dimensions	101.5" L x 104.3"W x 82.7"H
Approximate Machine System Weight	9,170 lbs

Equipped With:

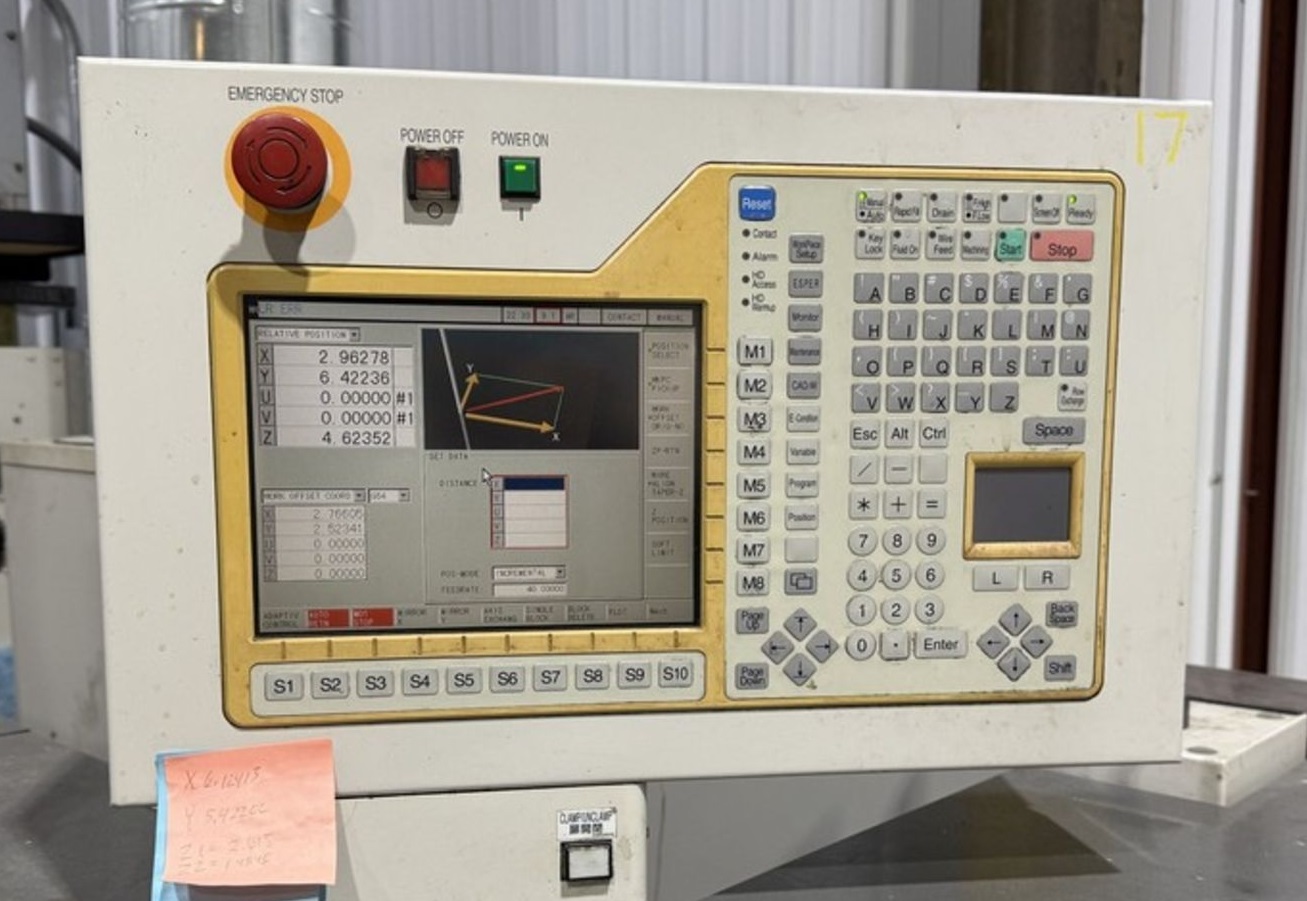

* Mitsubishi 64 Bit High-Speed CNC Control * Submerged Machining Capability * Automatic Wire Threader (AT) * Anti-Electrolysis Power Supply (AE3-HS) * Power Master 2 - Automatic Varying Part Thickness Optimization * Corner Master II - Precision Corner Control * 3D Graphic Function * Wire Chopper * All Stainless Steel Machine Tank & Fluid Tank * Filtration System * Electric Chiller * All Available System Disks, Manuals, and Accessories ** Photos are NOT the actual machine
