Charmilles Robofil 240 Wire EDM
Stock Number: 0480

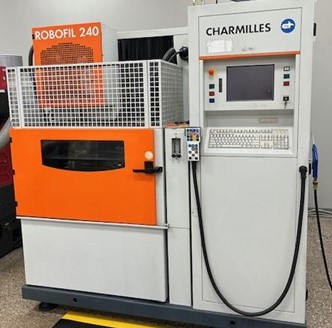

Charmilles Robofil 240
Age: 2004
Condition: As Is, Where Is
* Space saving compact design
* Chrome harden table - 56Rc
* Heavy workpiece design without the loss of accuracy
* Low consumable cost filtration system
* 30° taper capability at max Z height
* 0.00002" resolution glass scales on all axes
* Industrial speed of 37sq. inches/hour
* Collision protection on all axes
* Rhenocast base for thermo stability and vibration dampening
Click to view larger photo
| Specification | Description |
|---|
| X, Y, Z Travels: | 13.77" x 8.66" x 8.66" |
| U, V Travel: | 13.77" x 8.66" |
| Maximum Taper Angle: | +/- 30 Deg / 8.66" |
| Wire Capability: | .004" to .012" |
| Wire Guides Included: | .010" |
| Table Dimensions: | 26.77" x 17.72" |
| Maximum Workpiece Dimensions: | 39.37" x 21.65" x 8.66" |
| Reservoir Capacity: | 201 Gallons |
| Power Supply: | 380/400 V, 10 KVA |
| Machine Dimensions: | 79.53" x 80.71" x 78.74" |
| Machine Weight: | 5,401 lbs |
Equipped With:

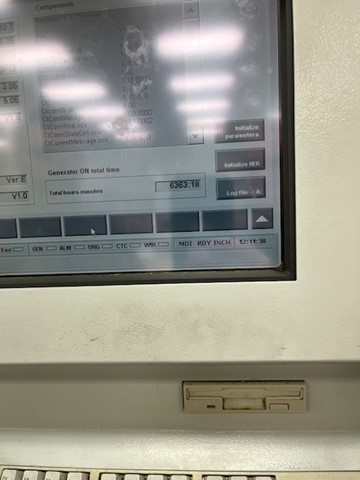

* Charmilles CNC Control Unit
* Automatic Wire Thread (AWT)
* Advantage Chiller Unit
* Submerged Machining
* Complete Dielectric Filtration System
* Programmable Power Z Axis
* Anti-Collision protection
* All Available Disks and Manuals
