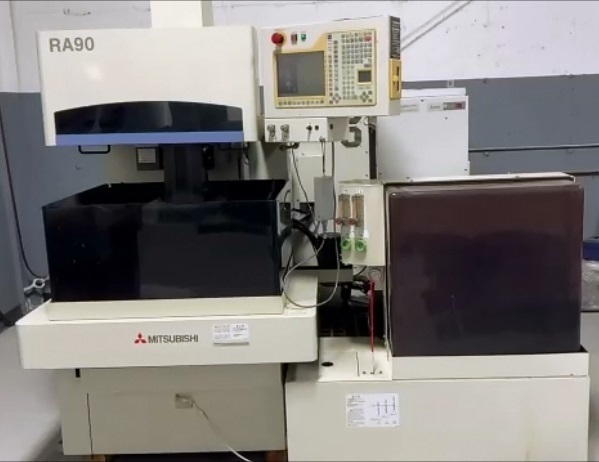

Mitsubishi RA90/AT CNC Wire EDM


Mitsubishi RA90/AT CNC Wire EDM

Stock Number: 0463

Mitsubishi RA90

Age: 2000

Condition: As Is, Where Is





Click to view larger photo


SpecificationDescription
Machine Travels 12.6" x 9.8" x 6.49"
U/V Travel1.25" x 1.25"
Taper Capability15 deg @ 4.0"
Max Workpiece Dimensions 33.8" x 29.9" x 6.3"
Workpiece Weight771 Lbs
Table Dimensions22.5" x 18.8"
Wire Spool Size22 Lbs
Table Rapid Feed 51.18 IPM
Wire Diameter Range Capability .004" - .012"
Wire Guides Included.010"
Filter SystemPaper Cartridge
Filter Precision3 Micron
Filter Tank Capacity118 Gal
Machine Dimensions 57" x 77" x 80"H
Total Power Input9 KVa
Total Machine Weight4,210 Lbs

Equipped With:

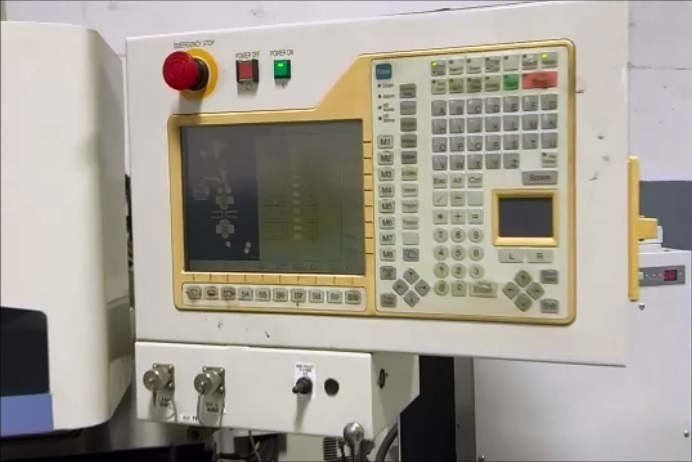

* Mitsubishi RAS-1 64 bit CNC Control * Non-submerged Machining Capabilty * Automatic Wire Threader (AT) * Latest Version Software Updated * 50A Transistor Pulse Power Supply * Built-in AVR * 10.4" Color LCD Display * Handheld Pendant Control * Power Master * Air Cooling Unit * All Available Disks, Manuals and Accessories
