Mitsubishi MV2400R Wire EDM


Mitsubishi MV2400R Wire EDM

Stock Number: 0460

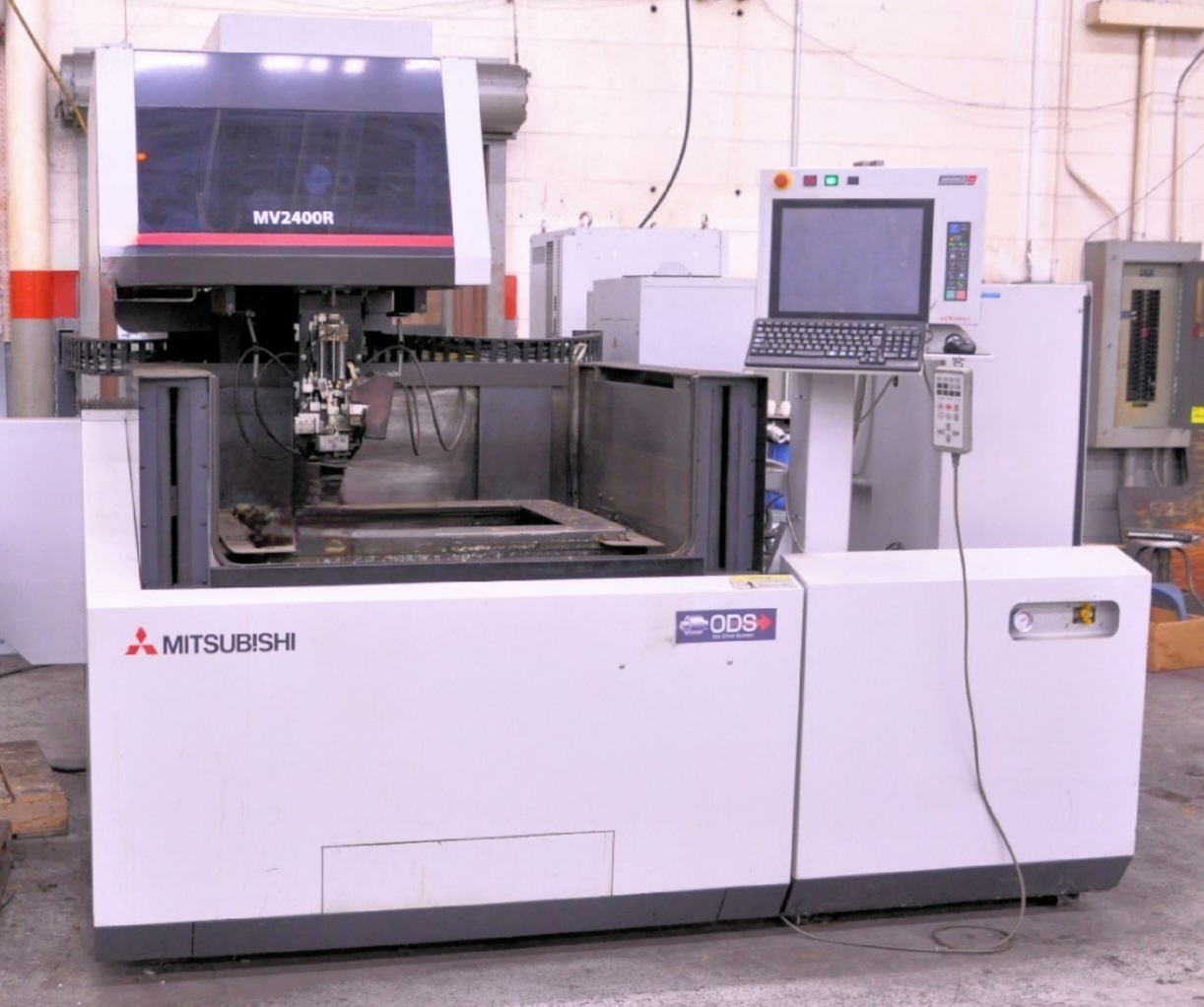

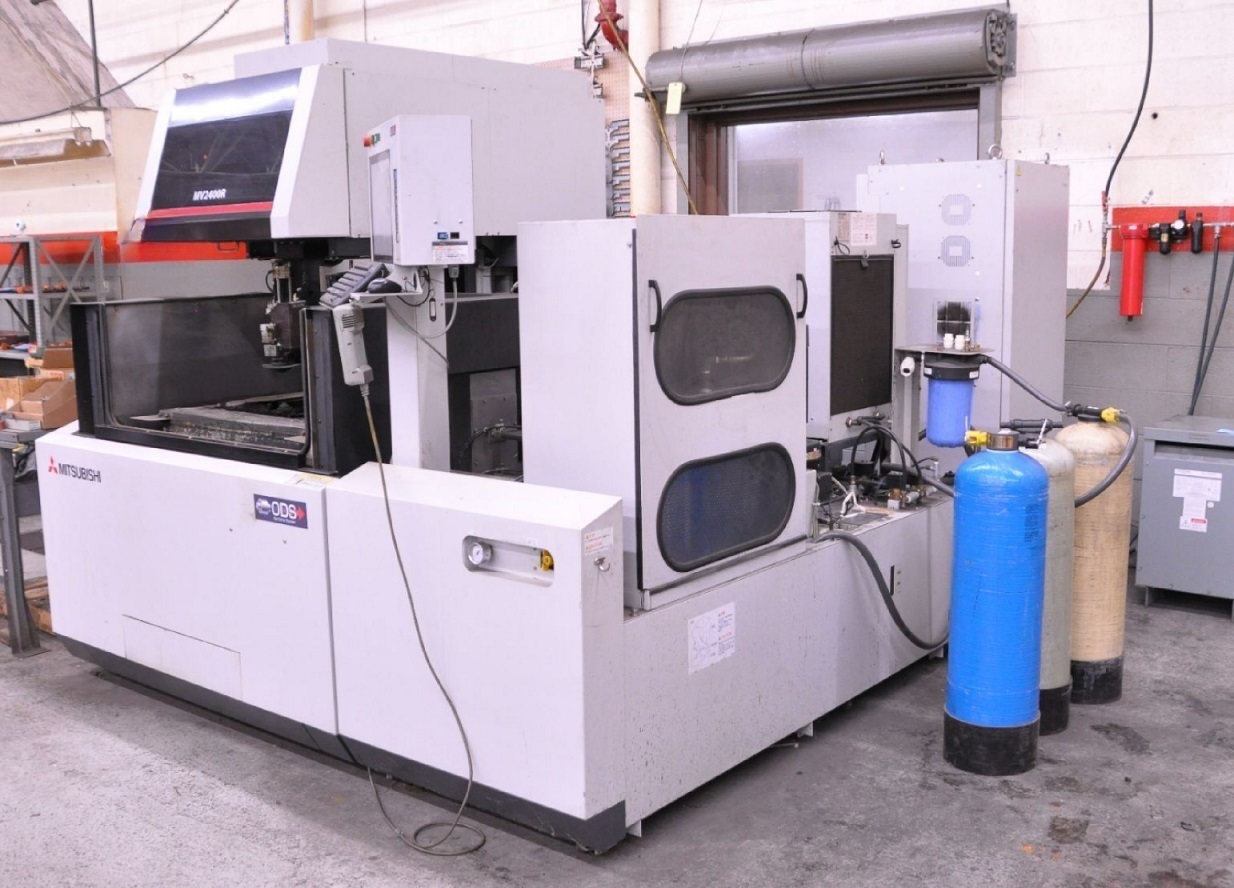

Mitsubishi MV2400R

Age: 2013

Condition: As Is, Where Is


The Mitsubishi MV series machine features the M700 series control with a 15-inch touchscreen for easier user interface. Mitsubishi is dedicated to constant innovation and strives to build only the highest quality machines. The MV series features new improvements in machine construction, auto-threading, internal machine communication, power supply technology and operating costs. The MV1200-R also includes a new, non-contact Cylindrical Drive System. The machine's improved features are sure to advance your EDM machining. Features: * 10 Second Threading System * New-Style Cut-wire Collection System * AT Device for Various Wire Types including Coated Wires * Wire Break-point Insertion and Submerged Threading * New-Style Wire Tension System * AT Self-Cleaning Process * VF Monitor - Real-Time Cutting Speed Graphic * New-Style Work Tank Seal Plate Mechanism


Click to view larger photo


SpecificationDescription
Machining Stroke ( X x Y x Z )Machining Stroke ( X x Y x Z )
Table Dimensions33" x 25.2" (4-Sided)
Maximum Workpiece Size31.9" x 27.6" x 8.5"
Maximum Submerged Workpiece Weight 3,300 lbs
U & V Axis Travel3" x 3"
Machining Stroke ( U x V )±2.4" x ±2.4"
Taper Capacity+-30 deg max / +-15deg @ 8"
Wire Diameter Range Possible 0.004"~0.012"
Minimum Resolution.000002"
Min Hole Diameter for Autothread.020"
Max Wire Spool Size22 lbs
Filter Tank Capacity145 Gal
Approximate Floor Space9' x 10'
Approximate Machine Weight7,716LBS

Equipped With:

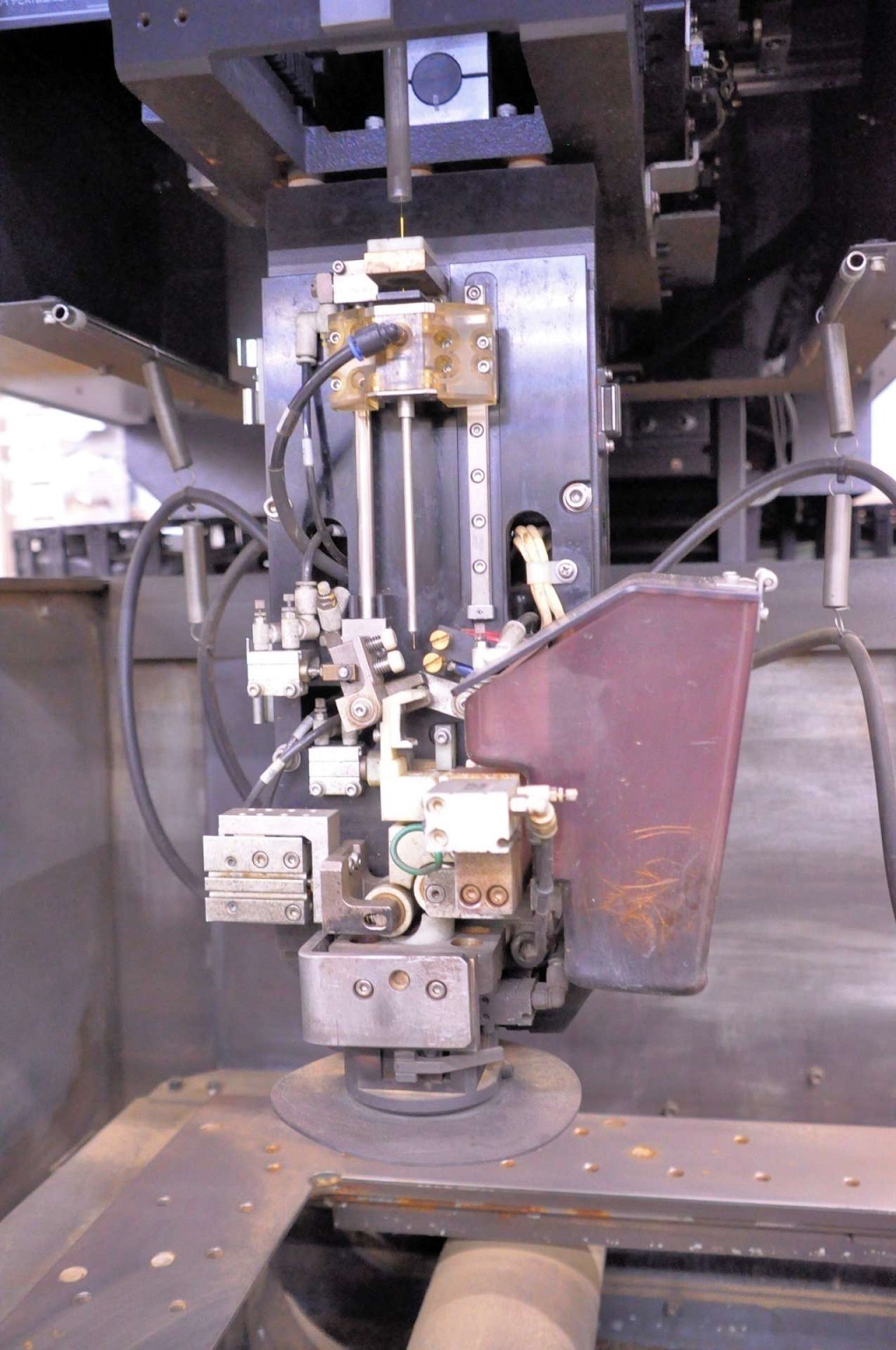

* Mitsubishi Advance Plus 3 Control * 15" Touch Screen * Non-Contact Cylindrical Drive Technology * V350-V AEII Power Supply * DMX-S (Digital Matrix Sensor) Shapes Each Spark Reducing Electrode Wear * World's First Linear Shaft Drive System XYUV All Fiber Optic Servo Control (4X Faster Internal Communication Speed) * Submerged Machining to 12.2" Deep * Automatic Fluid Level Control * Manual Vertical Machine Tank Door One Piece * Hardened 4-Sided Stainless Work Table * Fine Grain "Dianite" Casting Material * Fixed Table Traveling Column Construction (Column Moves in X & Y) * Windows XP Operating System * PM5 Power Master Control Improves Poor Flush * Program Input Methods: Keyboard, USB Flash Memory, and Ethernet with FTP Standard * DC-Servo (Closed Loop) Torque Control Wire Tensioning System * Linear Glass Scale Feedback (X-Y-U-V Axes) * Optical Rotary Encoder Feedback (Z-Axis) * Auto-Threading with Scrap Wire Processor (Chopper) * 14" AT Annealing Length Improves Threading Reliability * Inverter Controlled 16-Step Programmable Flushing * Full Time AEII (Anti-Electrolysis) Power Supply Protection * Dielectric Fluid Chiller Standard * Auto-Oiler Lubrication System * All Available Manuals and Accessories
