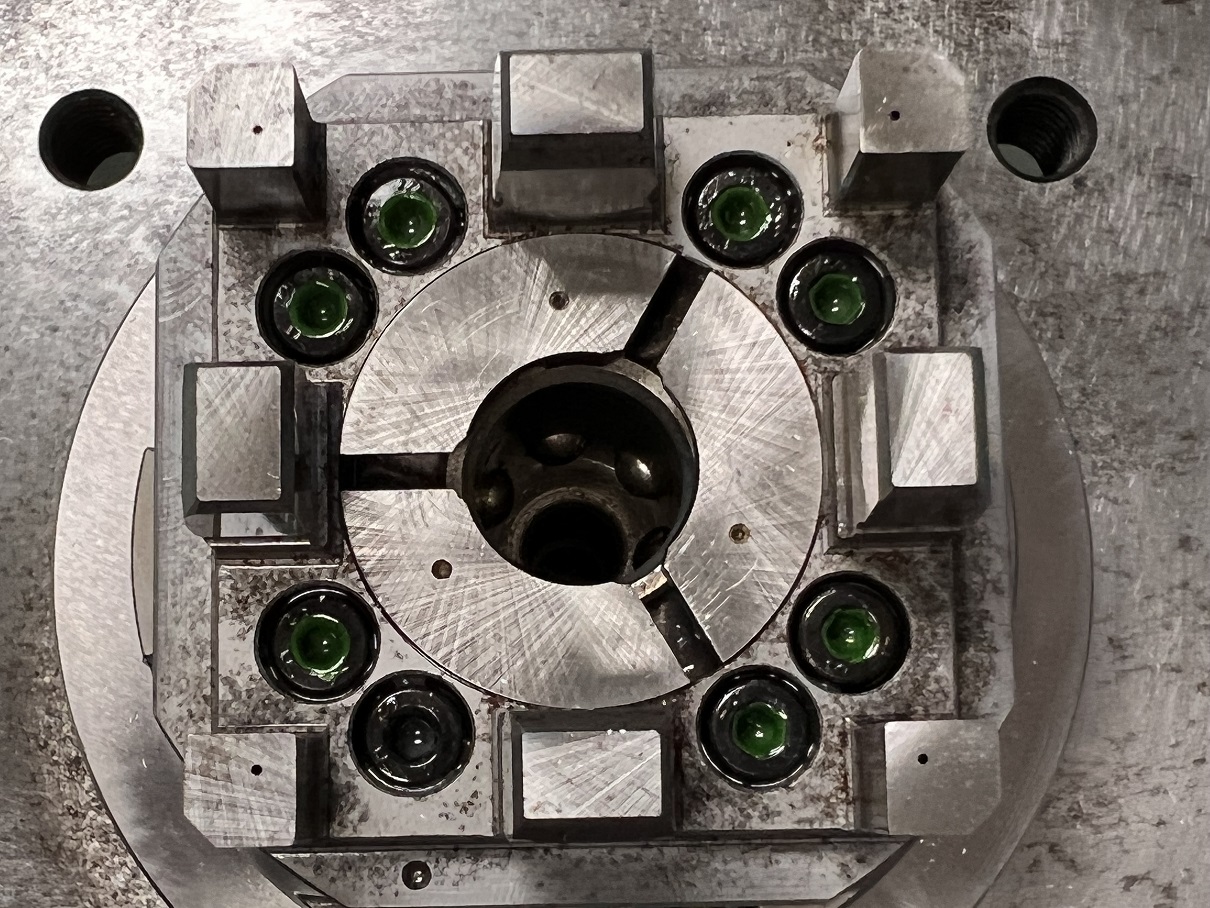

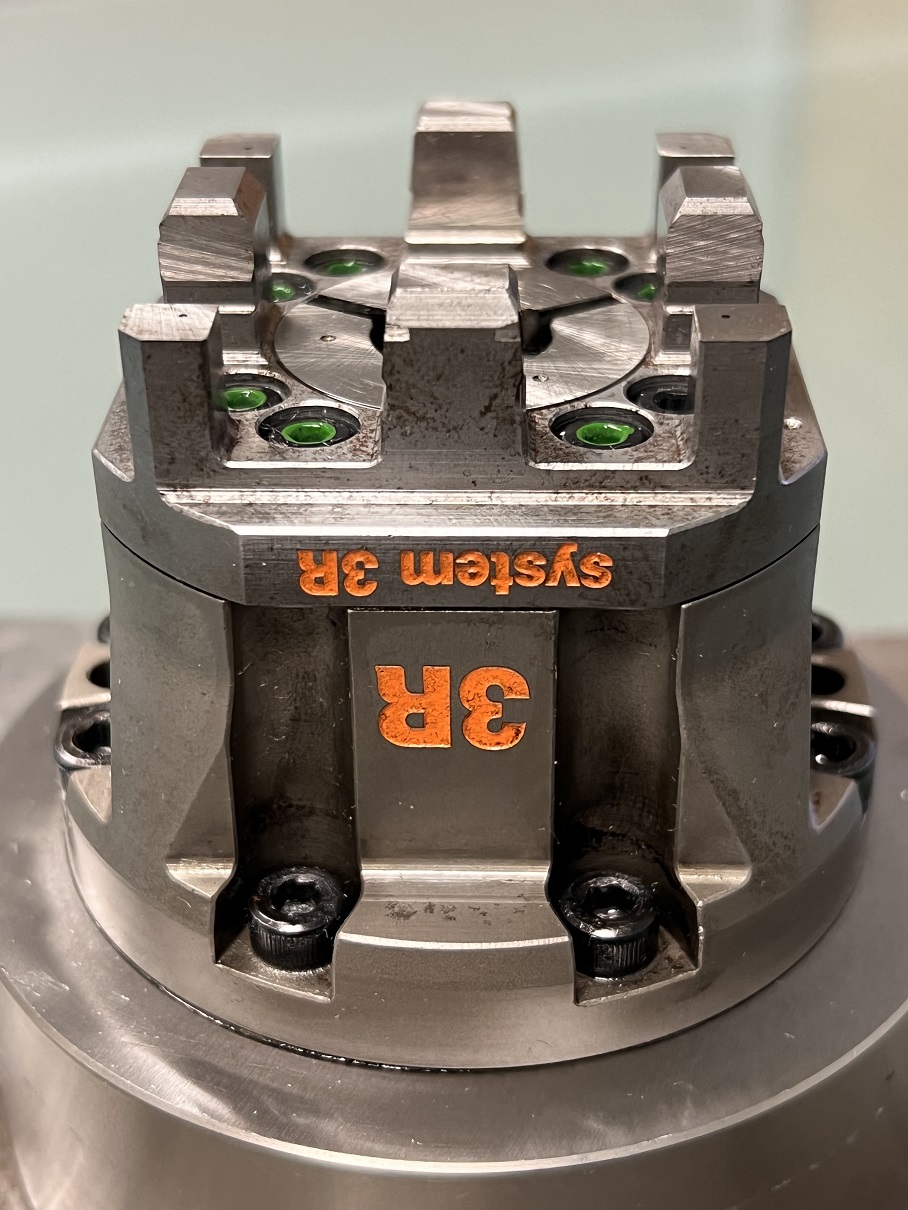

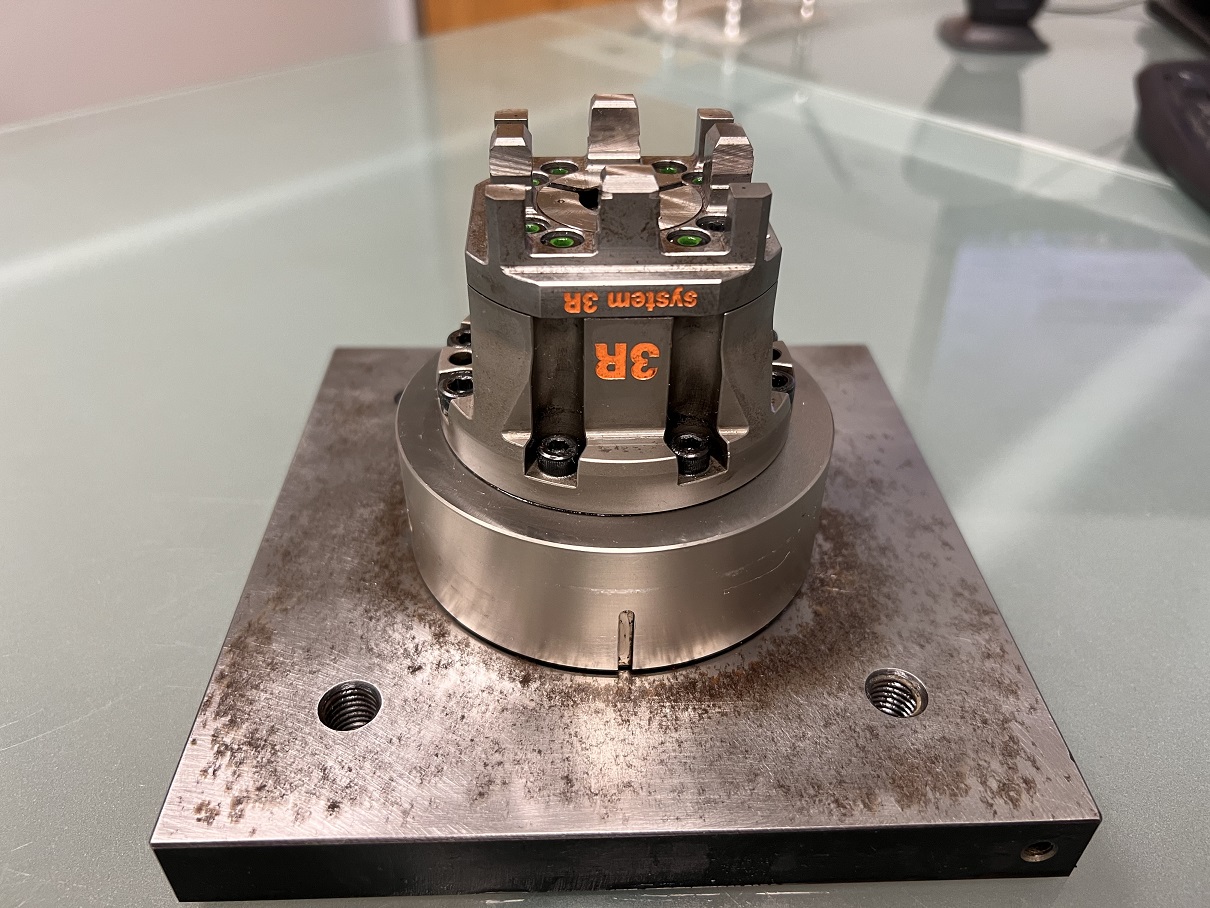

System 3R Macro Combi Spindle Chuck w/Adapter Plate 3R-460.EX-A $2,150

System 3R Macro Combi Spindle Chuck w/Adapter Plate 3R-460.EX-A $2,150

Stock Number: 9088

System 3R 3R-460.EX-A

Condition: As Is, Where Is




Click to view larger photo


Equipped With:
Pneumatic chuck for mounting directly on the machine spindle or on the table. All X/Y/Z references in hardened and ground steel. Note: When ordering state machine make and type. For MacroCombi (Macro & MacroJunior) * Clamping force 5000 N * Fixed index positions Macro 4x90° & MacroJunior 3x120° Four M6 clearance holes, 67x20 mm and four M5 clearance holes, 63x26 mm Required drawbar for Macro holder 3R-405.16 Required drawbar for MacroJunior holder 3R-405.11 Required air pressure 6±1 bar Air-blast cleaning of the Z-references Flushing connection Weight 1.9 kg. (4.2lbs) * Recommended tightening torque, manual chuck 4 Nm * Spindle Chuck for Mitsubishi, Sodick, Makino and all other asian brands of sinker EDMs. Currently 1 in Stock
