System 3R WEDM Manual Macro Chuck w/90 Deg Adapter 3R-602.27 $1,675

System 3R WEDM Manual Macro Chuck w/90 Deg Adapter 3R-602.27 $1,675

Stock Number: 9064

System 3R 3R-606.27

Condition: As Is, Where Is




Click to view larger photo


Equipped With:

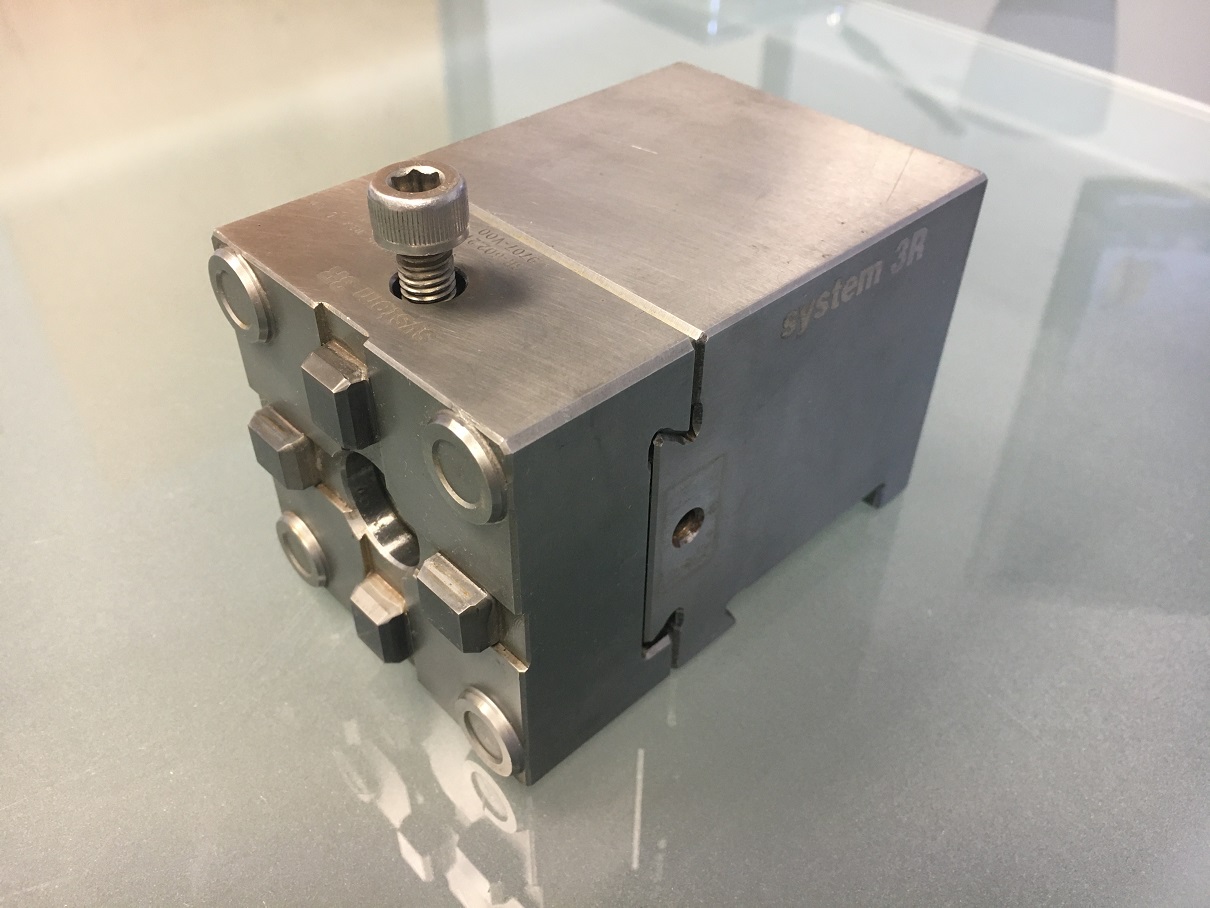

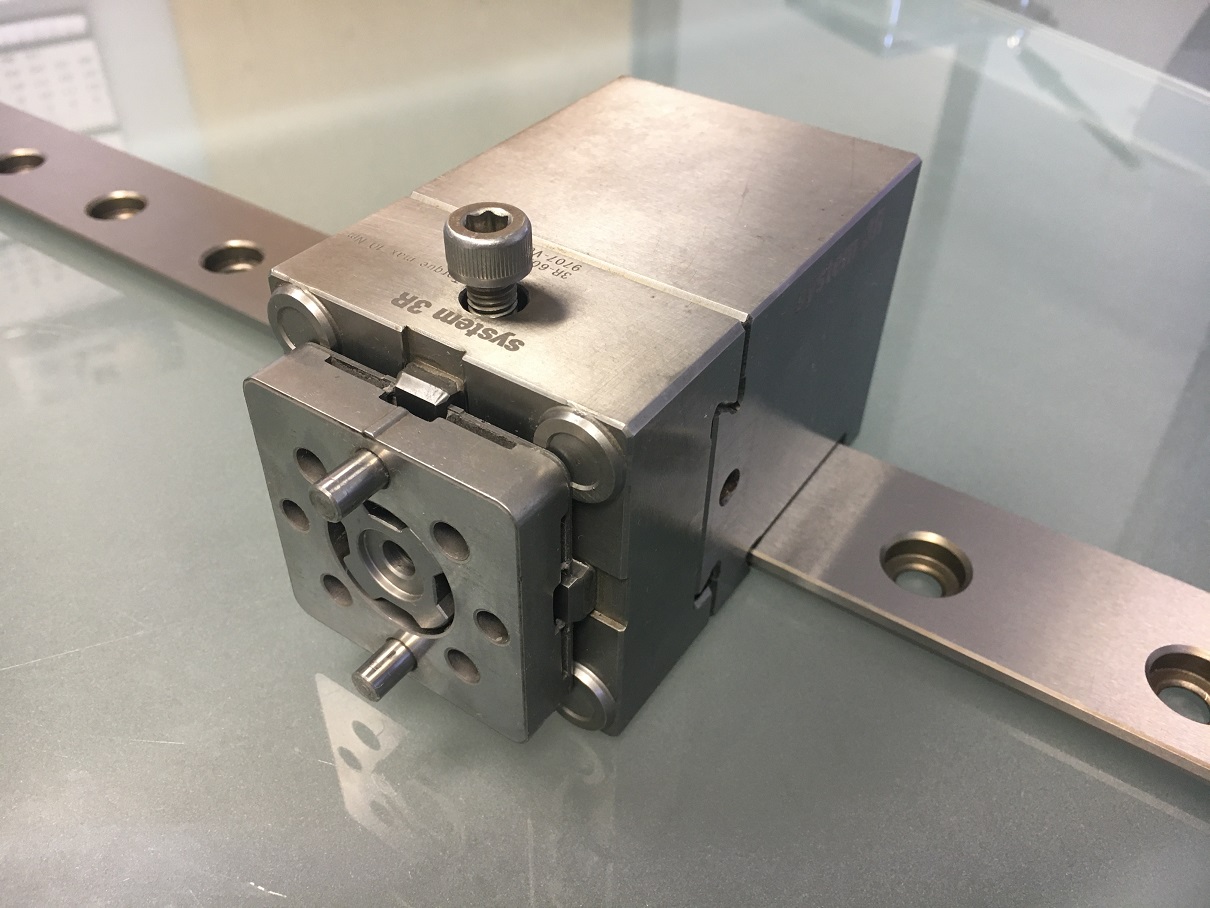

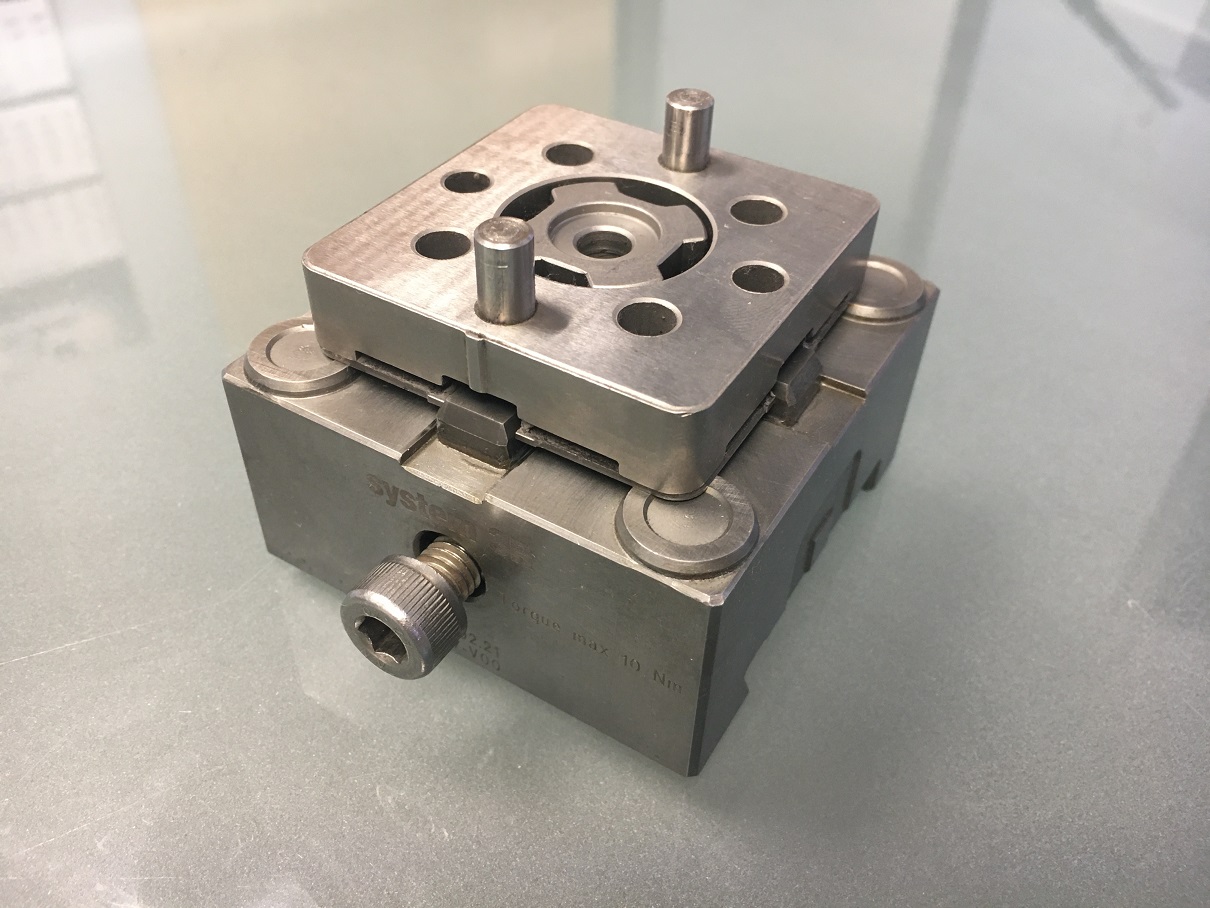

Stainless steel manual Macro chuck with dovetail mounting capability for use on wire EDMs for Macro holders. Actual original part # 3R-602.21, which designates that the drawbar tightens with a screw instead of a lever. This set also includes a System 3R 3R-201J which is a stainless steel 90 degree adapter for mounting any Macro holder in the vertical position on a wire EDM. Required drawbar 3R-605.2 Clamping force 6000 N Fixed index positions 4x90º Weight 1.1 kg. These items have been checked out to make sure they are accurate and operate properly. * The dovetail rail, Macro holder, and drawbar pictured are for demonstration purposes and are NOT included with the purchase. 1 Set Available
