System 3R Measuring Probe 3R-656.21-SP03 $950.00

System 3R Measuring Probe 3R-656.21-SP03 $950.00

Stock Number: 9061

System 3R 3R-656.21-SP03

Condition: As Is, Where Is




Click to view larger photo


Equipped With:

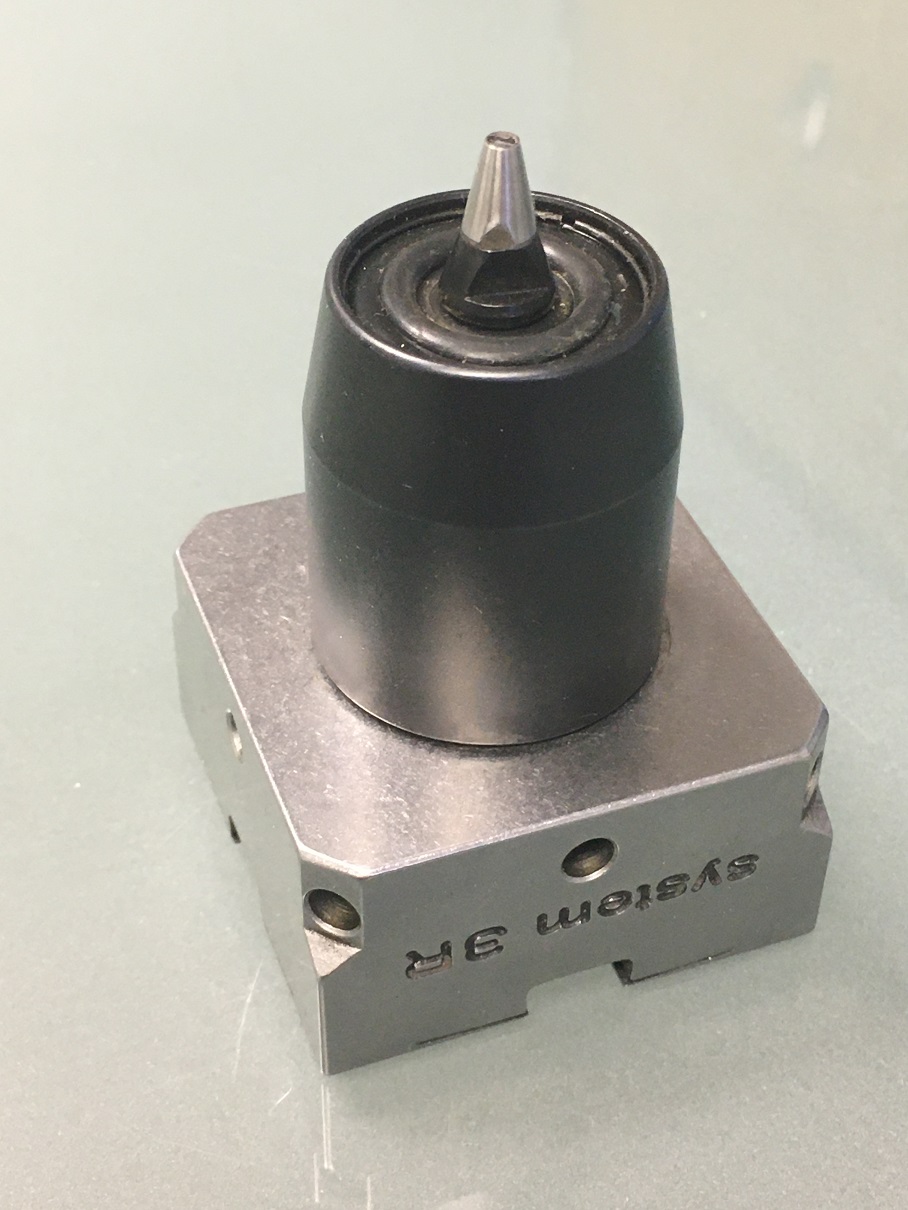

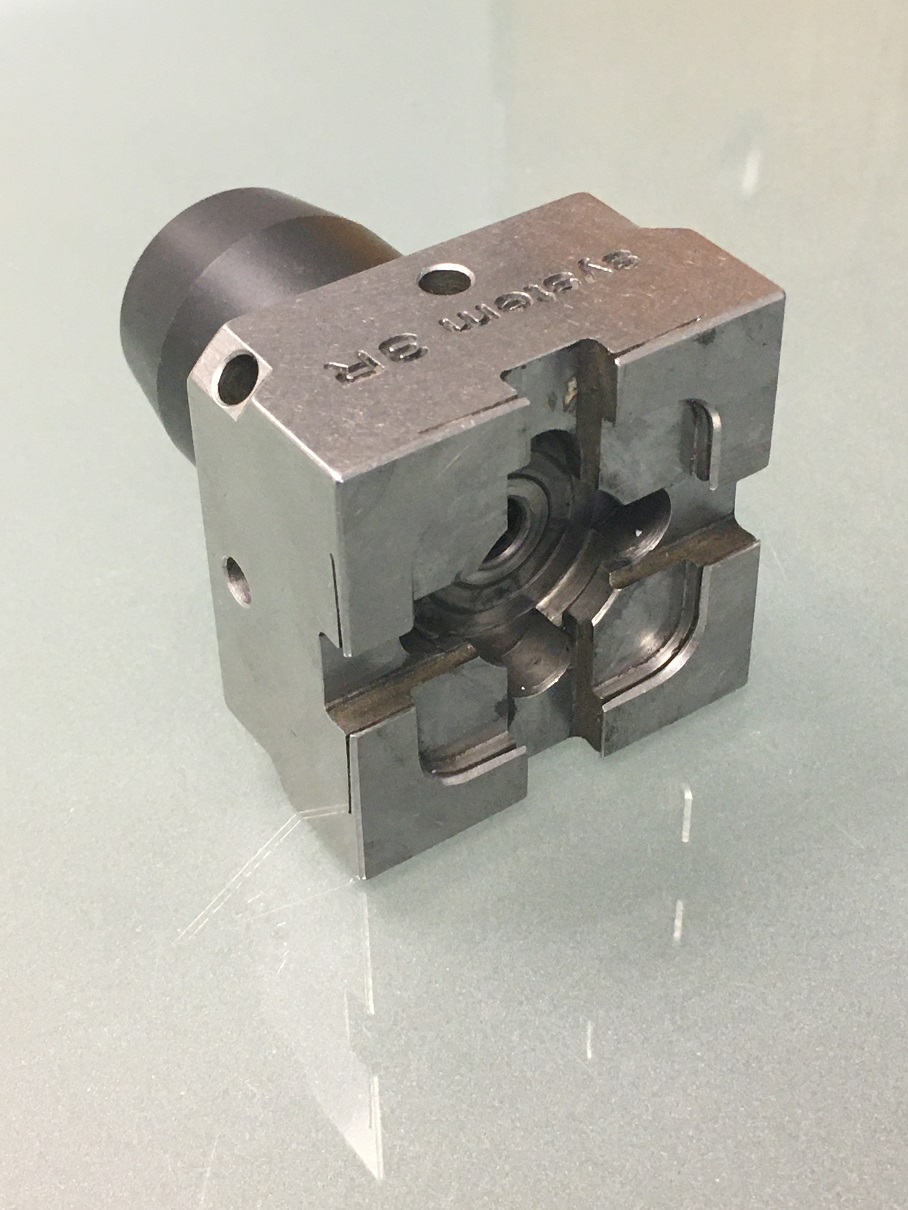

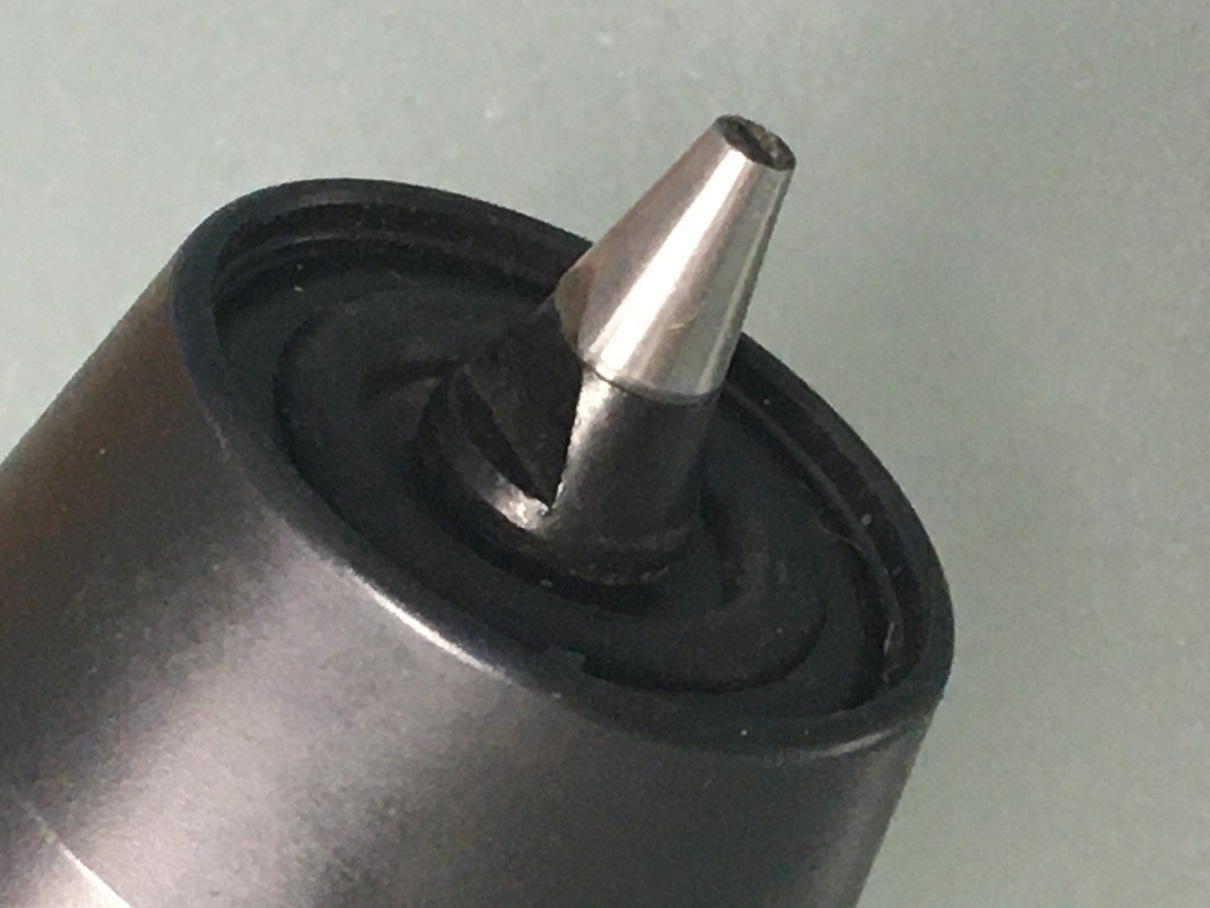

System 3R Measuring Probe (Needs New Ball Point) Part # 3R-656.21-SP03 This probe is for measuring workpieces, locating edges, hole finding, and depth setting. It's the most accurate method of setting up and verifying work on a CNC Sinker EDM. Repetition accuracy: System 3R compatible Macro Standard - within 0.002 mm. Compatibility: With all System 3R Macro Standard or compatible chucks, drawbars and workholding fixtures. Version: Rust resistant and strong enough to withstand pneumatic automatic production. Mounting: Use 3R-605.2 long drawbar directly into the bottom of 3R Macro Standard or compatible electrode holders for the purpose of drawing the holder into any 3R Macro Standard or compatible chuck. 1 Available
