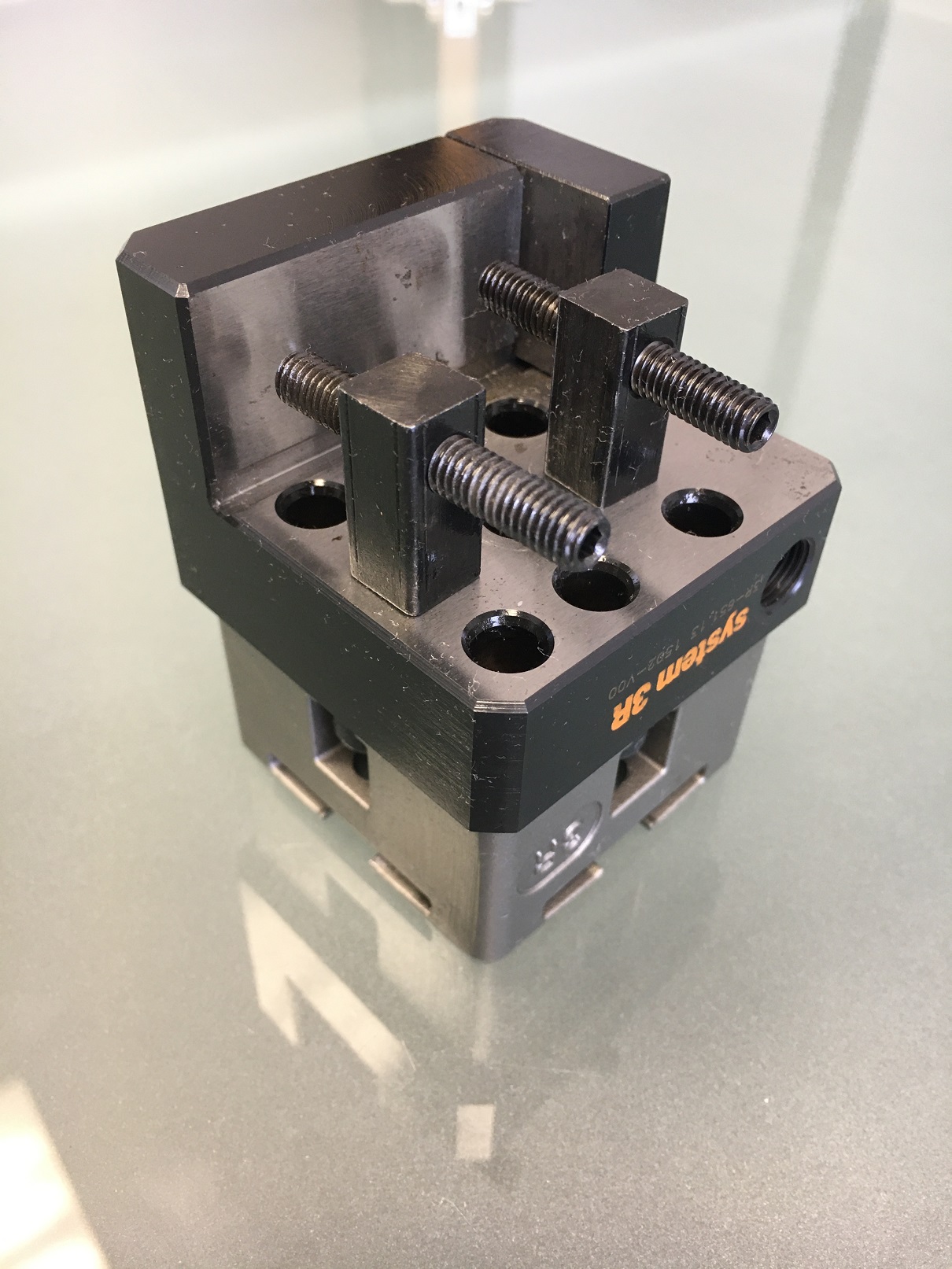

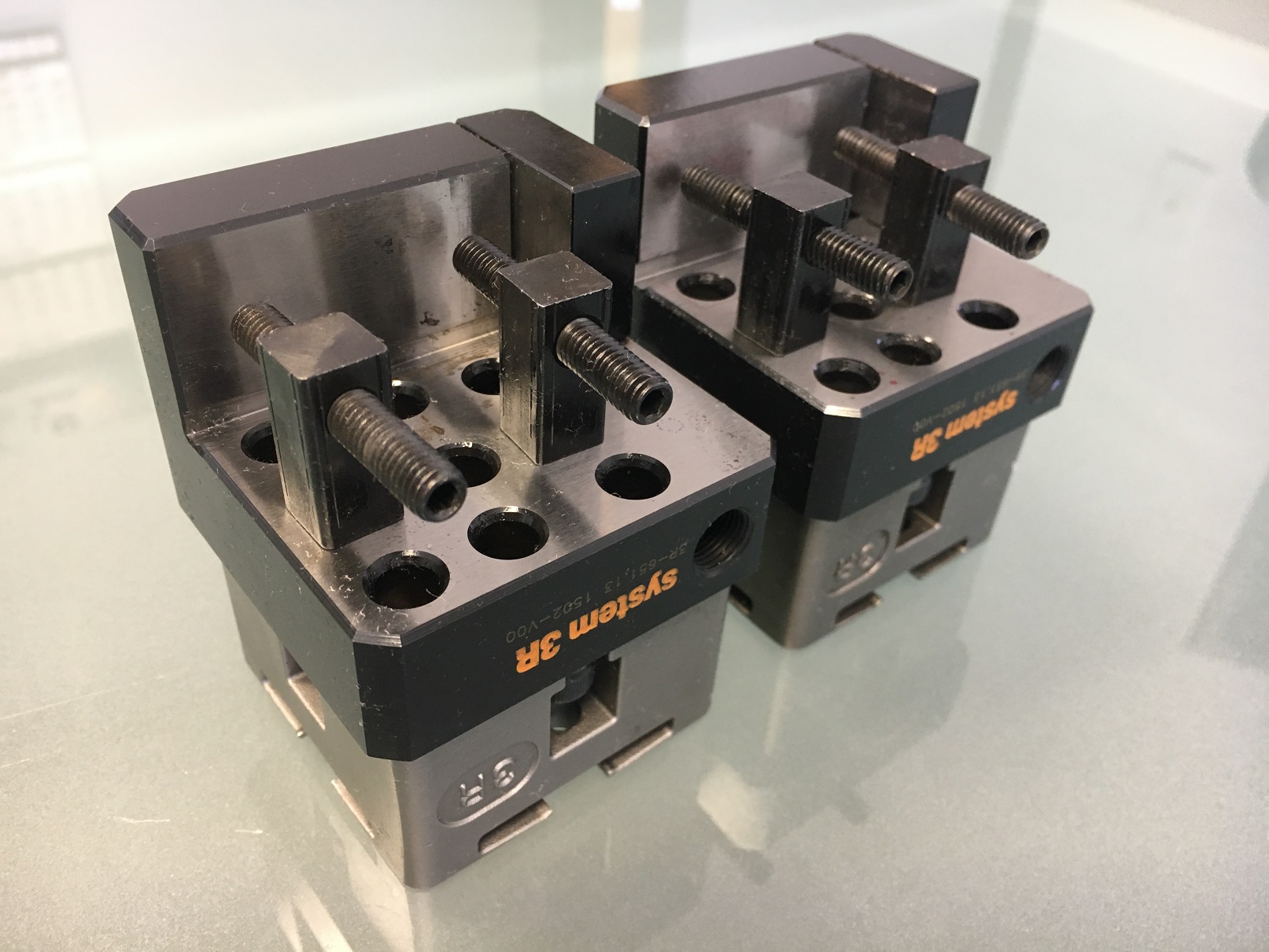

System 3R Macro Electrode Holder - Square Holder - 3R-651.13


System 3R Macro Electrode Holder - Square Holder - 3R-651.13

Stock Number: 9030

System 3R 3R-651.13

Condition: Good - Used





Click to view larger photo



Equipped With:
Hardened holder for square electrodes max 50 mm. Max. workpiece: 32x28 mm Adapted for automatic changing Parallel-ground top and bottom faces Fixed index positions 4x90° Flushing connection Weight 1.2 kg. Repetition accuracy: MacroStandard - within 0.002 mm Locking force - 6000 N Fixed index positions 4x90° Required air pressure, pneumatic chuck - 6±1 bar Recommended tightening torque, manual chuck - 6 Nm Recommended max workpiece weight - 50 kg 2 Available
