System 3R Macro to Mini Holder - 3R-653-S


System 3R Macro to Mini Holder - 3R-653-S

Stock Number: 9005

System 3R 3R-653-S

Condition: Like New

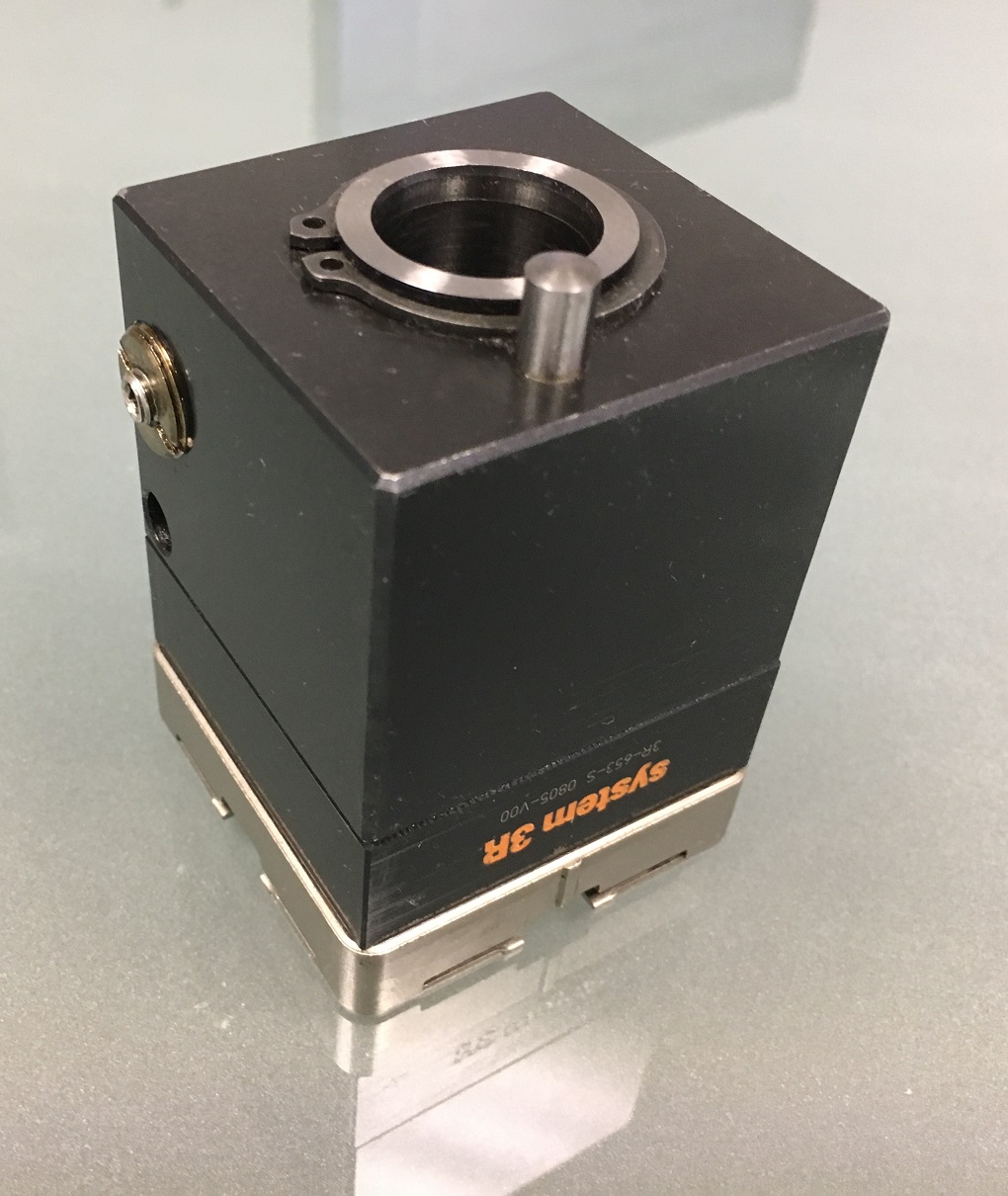

Click to view larger photo



Equipped With:
3R-653-S, Manual chuck adapter, Macro-Mini For mounting Mini holders (20mm Shank Type) in the Macro system. * MacroStandard coupling * Can be changed automatically * Weight 1.3 kg. * Repetition accuracy: MacroStandard - within 0.002 mm * Locking force - 6000 N * Fixed index positions 4x90 * Required air pressure, pneumatic chuck - 61 bar * Recommended tightening torque, manual chuck - 6 Nm * Recommended max workpiece weight - 50 kg This item has been checked out to make sure it operates properly 1 Available
