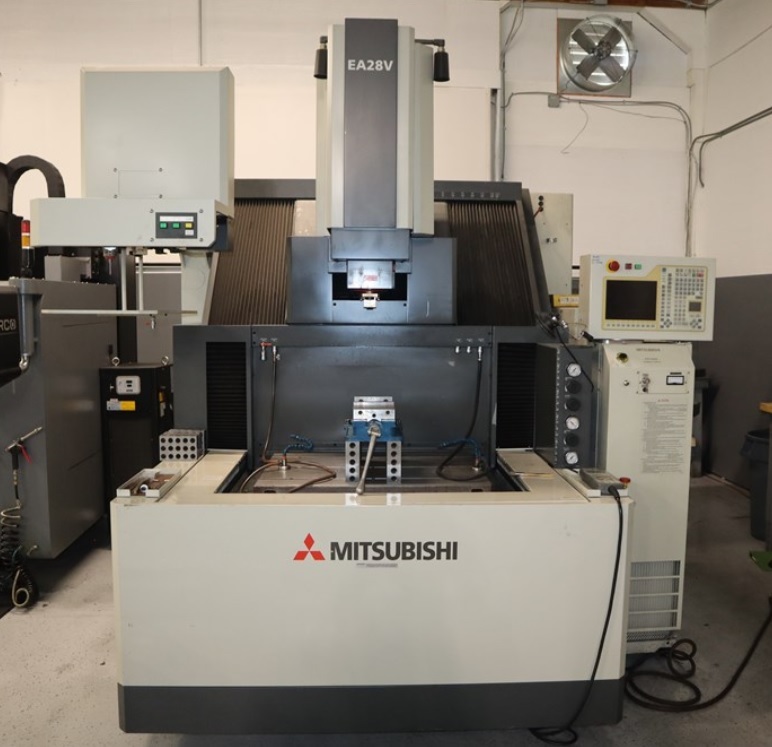

Mitsubishi EA28V CNC Sinker

Stock Number: 1143

Mitsubishi EA28V

Age: 2008

Condition: As Is, Where Is

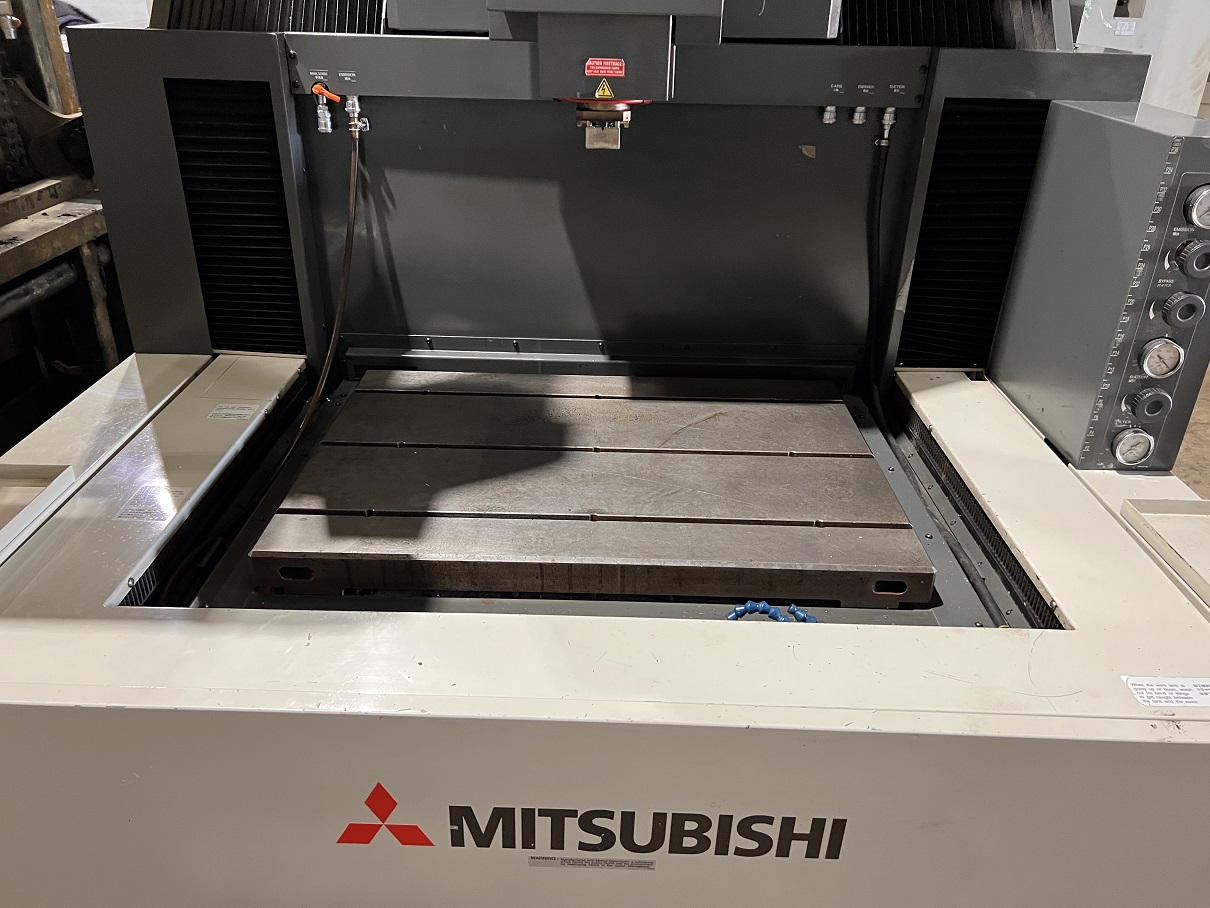

Mitsubishi EDM introduces its newest die-sinking EDM, the EA28V. The EA28V's new FP120V power supply takes performance to the next level while enhancing accuracy and productivity. The machine's space-saving design reduces the required floor space and simplifies the maintenance layout. The EA28V's new three-sided drop tank design provides many additional benefits. The fast fill/drain system keeps the tank height and fluid levels constant. The new drive system makes tank operation easier and quicker. Programmable fluid circulation can be used at zero tank height for improved thermal stability during job setup and removal.

Click to view larger photo

Specification	Description
Machining Travels	25.6" x 17.7" x 13.8"
Worktank Internal Dimensions	43.3" x 31.9" x 17.7"
Max. Dielectric Fluid Level	15.7"
Max. Workpiece Dimensions	41.3" x 29.9" x 13.8"
Max. Workpiece Weight	4,409 lbs
Max. Electrode Weight	440 lbs
Table to C-Axis Chuck Distance Min ~ Max	16.7 ~ 30.5
Minimum Command Unit / Resolution	.00001 / .000002
Rapid Travel Speed	78.7 in/min.
Electrical Requirements	200-220V/3Phz/60Hz
Machine Tool Shipping Dimensions	79" x 93" x 103"
Machine Tool Weight	11,904 lbs
Machine Footprint Dimensions	96" x 99" x 103"
Machine Total System Weight	12,870 lbs

Equipped With:

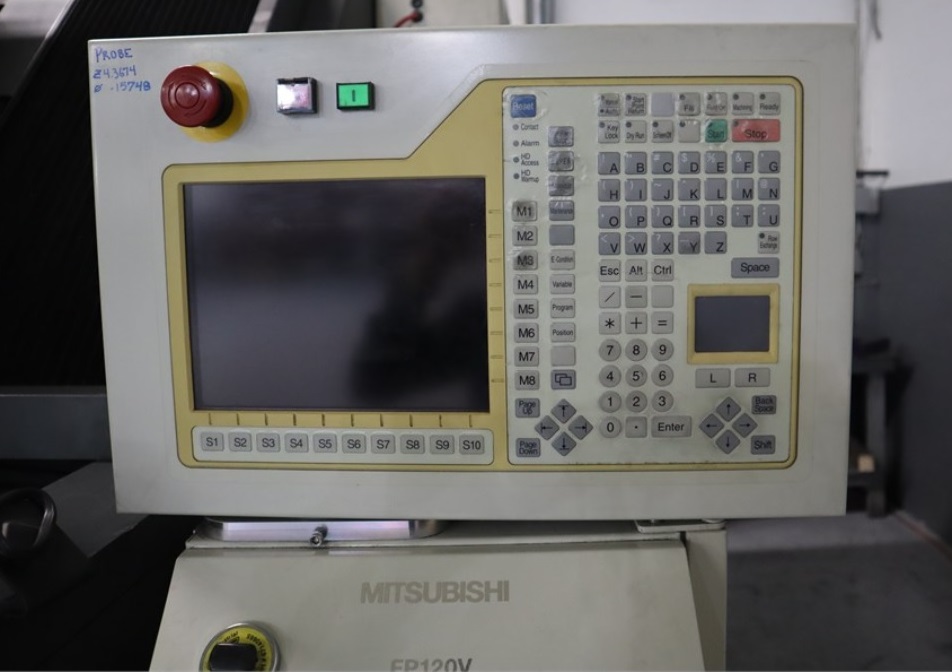

* Mitsubishi 700 Series CNC Control * 120 Amp Power Supply * 3 Sided Auto Drop Tank * 20 Position Automatic Electrode Changer * C Axis with Erowa ITS Chuck (Option for System 3R Macro Chuck) * Remote Hand Pendant * Electric Chiller * Transformer 30 kVA P480/240V S208V * All Available Manuals ** Table vise, riser blocks, and tooling pictured are NOT included with the machine
