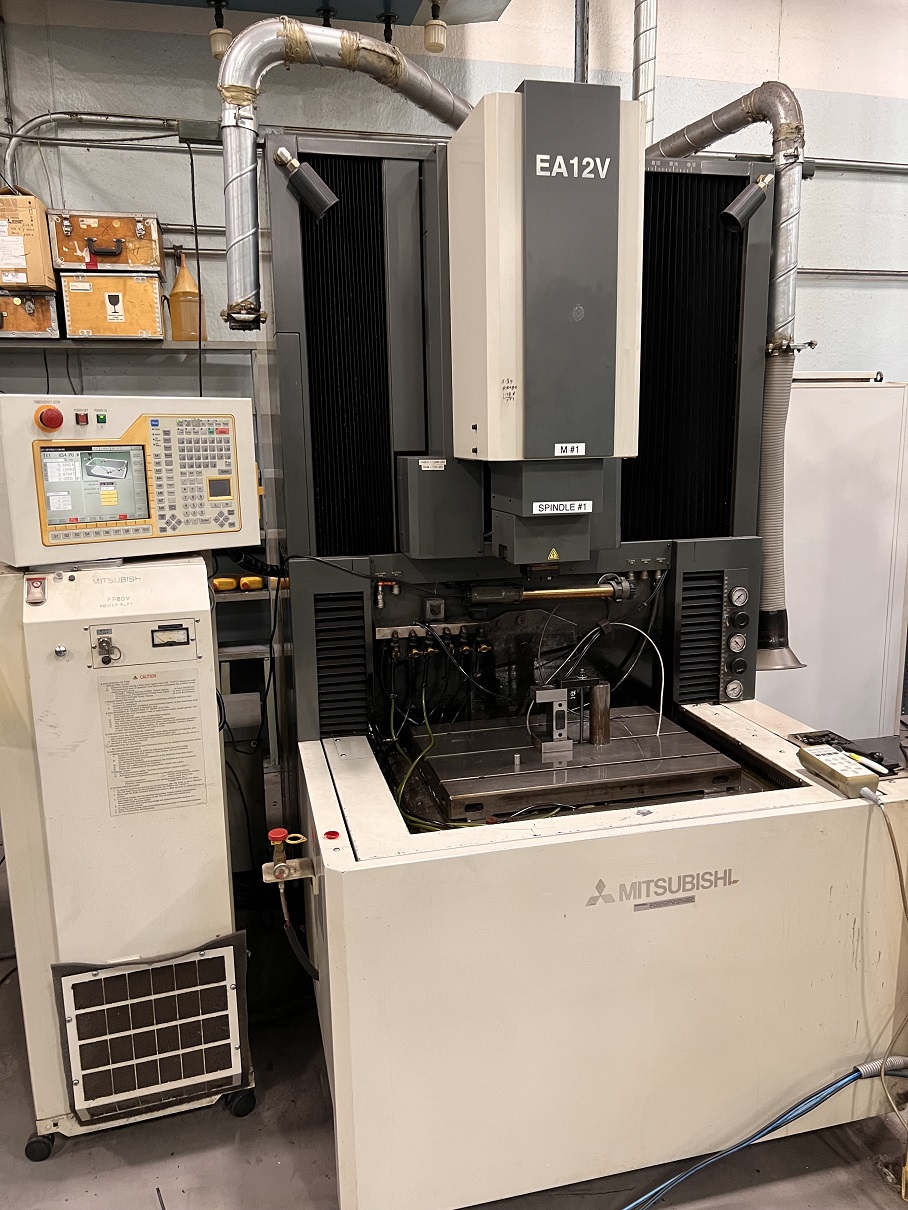

Mitsubishi EA12V CNC Sinker
Stock Number: 1128
Mitsubishi EA12V
Age: 2004
Condition: As Is, Where Is
The EA12V sinker EDM machine is one of the most accurate and productive machines on the market. Featuring the new M700 series control with a touchscreen, these machines are even more user-friendly than previous models. One of the most attractive features of the EA12V is the space-saving design. Compared with conventional models, required floor space has been reduced by nearly 20 percent. Installation space is also greatly reduced and the maintenance area has been simplified.
EA SERIES Features:
Fuzzy pro emulates an experienced operator optimizing the burn process from rough to finish orbit.
High-speed jump creates the ability to do most burns with no flush.
Saddle-less column movement system uses a special combined linear motion way system.
New digital AC Smart Servo System improves resolution to 0.05 µm (2 millionths inch) speeding response time.
Fine Pulse 2 (FP2) function which operates in a pumping action to keep the gap clean, improves finish and reduces the power consumed.
SC circuit reduces electrode wear by enacting pulse discharge during high-precision machining.
PS circuit provides accurate finish by controlling surface pulse discharge.
Click to view larger photo
| Specification | Description |
|---|
| Machining Stroke ( X x Y x Z ) | 15.7" x 11.8" x 11.8" |
| Machining Movement (C) | 360 Degrees |
| Chuck to Table Clearence | 6.0" x 17.8" |
| Worktank Size | 37" x 24" x 14" |
| Table Size | 28" x 20" |
| Tank Type | 3-Sided Drop Tank |
| Maximum Workpiece Dimensions | 33.5" x 25.2" x 9.8" |
| Maximum Workpiece Weight | 1,540 lbs |
| Maximum Current | 80 Amps |
| Maximum Electrode Weight | 110 lbs/22 lbs with C-Axis |
| Dielectric Capacity | 106 Gal |
| Machine Total Weight | 8,195 lbs |
| Machine Base Only Weight | 7,480 lbs |
Equipped With:
* Mitsubishi M700 CNC Control
* C-Axis (3R Macro Standard)
* FP80V Power Supply
* Dual Feedback Construction with Glass Scales and Encoders (X,Y,&Z)

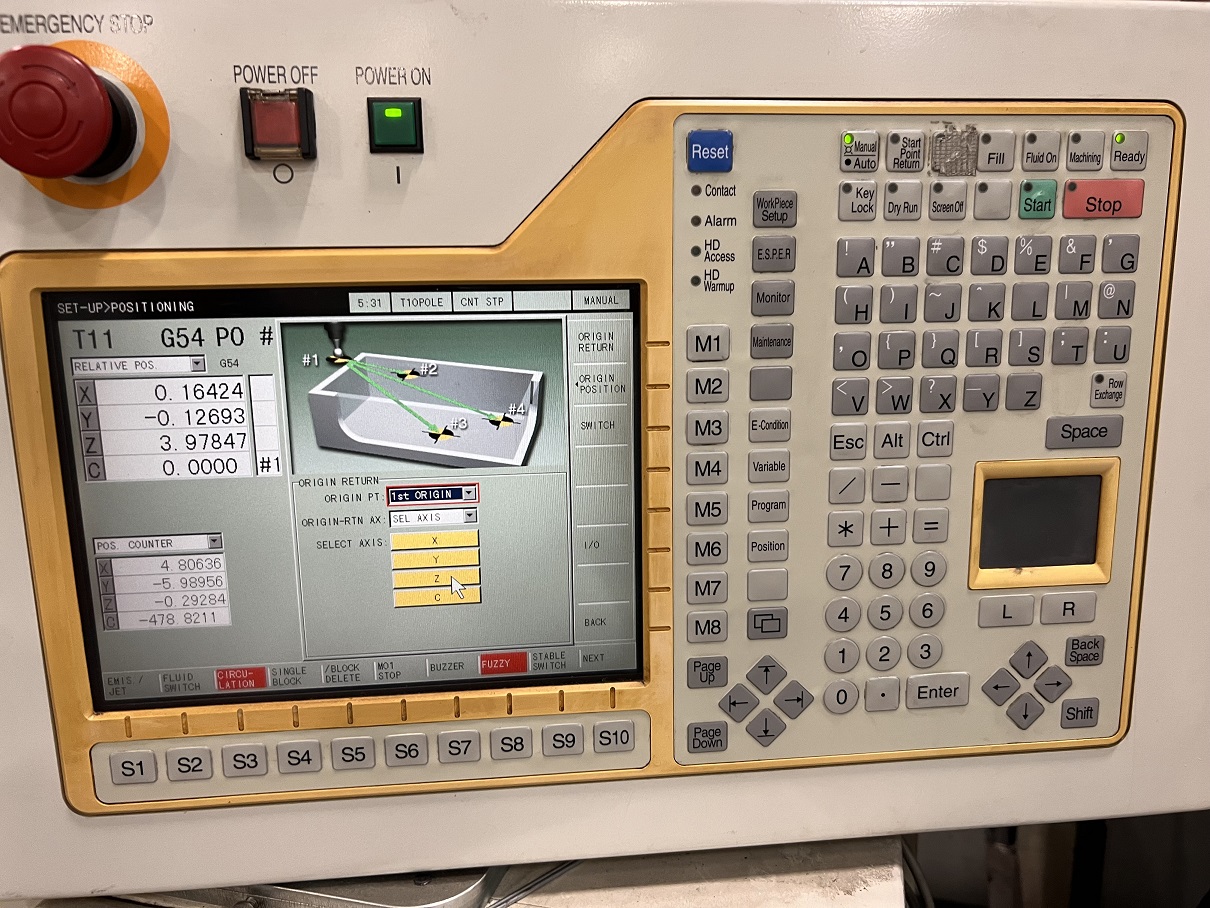

* PC Based CNC Control With Touchscreen Monitor
* 10MB User Program Storage On Hard Drive
* Ethernet / DNC / FTP Connections
* Electric Chiller
* Remote Hand Controller
* All Available Manuals and Accessories
