Belmont SY-1210TGUR CNC High Speed Hole Driller

Belmont SY-1210TGUR CNC High Speed Hole Driller

Stock Number: 5027

Belmont SY-1210TGUR

Age: 2014

Condition: As Is, Where Is

Belmont SY Series Features: * 6 Coordinate Systems * 3 Step Control of EDM Parameters * Password Protected Settings * 1,000 RPM Programmable Spindle * Windows Based Controller * Multi-tasking Capabilites * Ethernet Connectivity and USB Support * Automatic Depth Control * Glass Scale Feedback

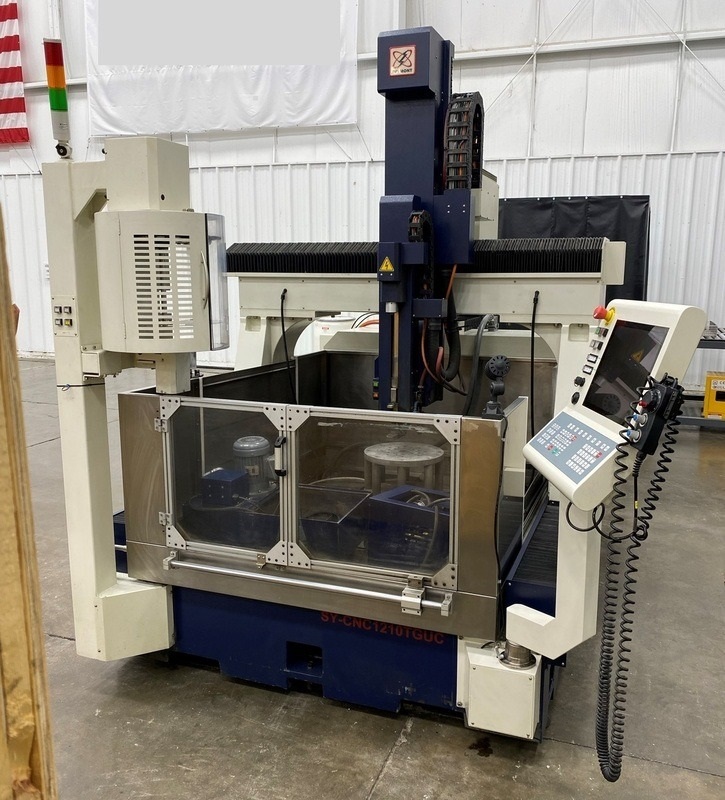

Click to view larger photo

SpecificationDescription
X-Axis Travel39.3"
Y-Axis Travel47.2"
W-Axis Travel39.3"
U-Axis (Tilt Head) Travel+/-100 Degrees from Vertical
Z-Axis Travel15.7"
Open Height3.1" - 39.3"
Electrode Diameter Capability.008" - .120" (0.2-3.0mm)
Worktable Dimensions43.3"(L-R) x 51.1" (F-B)
Worktank Dimensions59" (L-R) x 70.8" (F-B)
Max. Workpiece Weight5,500 lbs
Rotary Table Faceplate5.9" Dia.
Rotary Table Max Weight Capacity110 lbs
Machining Maximum Amps30
On & Off Time1-99 Microseconds
Capacitors0-1.81 MU F
Auto Electrode Changer20 Positions
Spindle Speed1,000 RPM
Electrode Diameter Range w/o AEC .004" - .256"
Electrode Diameter Range w/AEC.012" - .120"
Max. Electrode Length 17.7"
Min. Electrode Length2.75"
Electrical Requirement208-220V, 3 Phase, 50/60Hz
Machine Dimensions - Catalog104" x 134" x 142"H
Machine Weight - Catalog12,980 lbs
Control/Power Supply Dimensions32" x 40" x 76" H
Control/Power Supply Weight875 lbs
Dielectric System Dimensions62" x 36" x 71" H
Dielectric System Weight320 lbs

Equipped With:
* Window Based Control w/G & M Code Programming * Integrated Rotary Table * Integrated Tilting Head * 20 Position Automatic Electrode Changer * Full Machine Tool Guarding * Stainless Steel Table & Riser Support * High Pressure Flushing Pump * Water Dielectric Unit * Ethernet Connectivity - Six Coordinate System - Three Step EDM Parameter Control - Automatic Depth Control * All Available Manuals and Accessories
