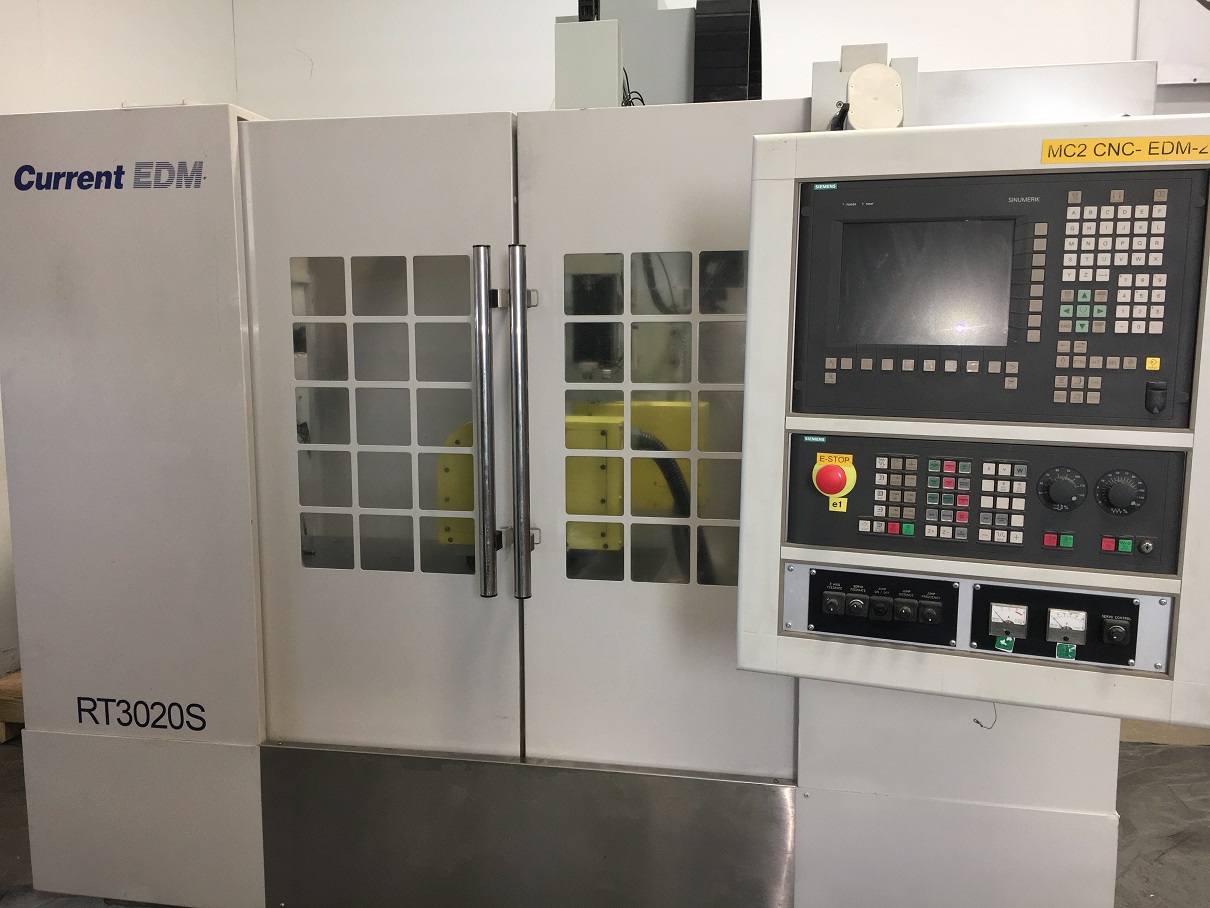

Current EDM RT3020S 5-Axis CNC Hole Driller w/Siemens 840DI Control


Current EDM RT3020S 5-Axis CNC Hole Driller w/Siemens 840DI Control

Stock Number: 5019

Current RT3020S

Age: 2007

Condition: As Is, Where Is


Current EDM manufactures the finest EDM hole drillers in the world. Used in applications such as aerospace, medical, aircraft and automotive, they are known for excellent build quality combined with the best in EDM technology to drill in the most demanding applications.


Click to view larger photo


SpecificationDescription
X-Axis Travel30"
Y-Axis Travel20"
Z-Axis Travel16"
G-Axis Travel (Guide)22"
Table Resolution0.0000390"
Max. Workpiece Weight1,000 lbs
Rotary Table Faceplate8" Dia.
Rotary Table Max Weight Capacity220 lbs
Machining Amps57 Peak
Auto Electrode Changer24 Positions
Max. Flo Rate1.0 Gal/min
Electrode Diameter Range w/o AEC.004" - .256"
Electrode Diameter Range w/AEC.012" - .120"
Max. Electrode Length17.7"
Min. Electrode Length2.75"
Electrical Requirement208VAC, 3 Phase, 50/60Hz
Machine Dimensions96" x 69" x 100"H
Machine Weight9,000 lbs
Control/Power Supply Dimensions 32" x 40" x 76" H
Control/Power Supply Weight875 lbs
Dielectric System Dimensions62" x 36" x 71" H
Dielectric System Weight320 lbs

Equipped With:

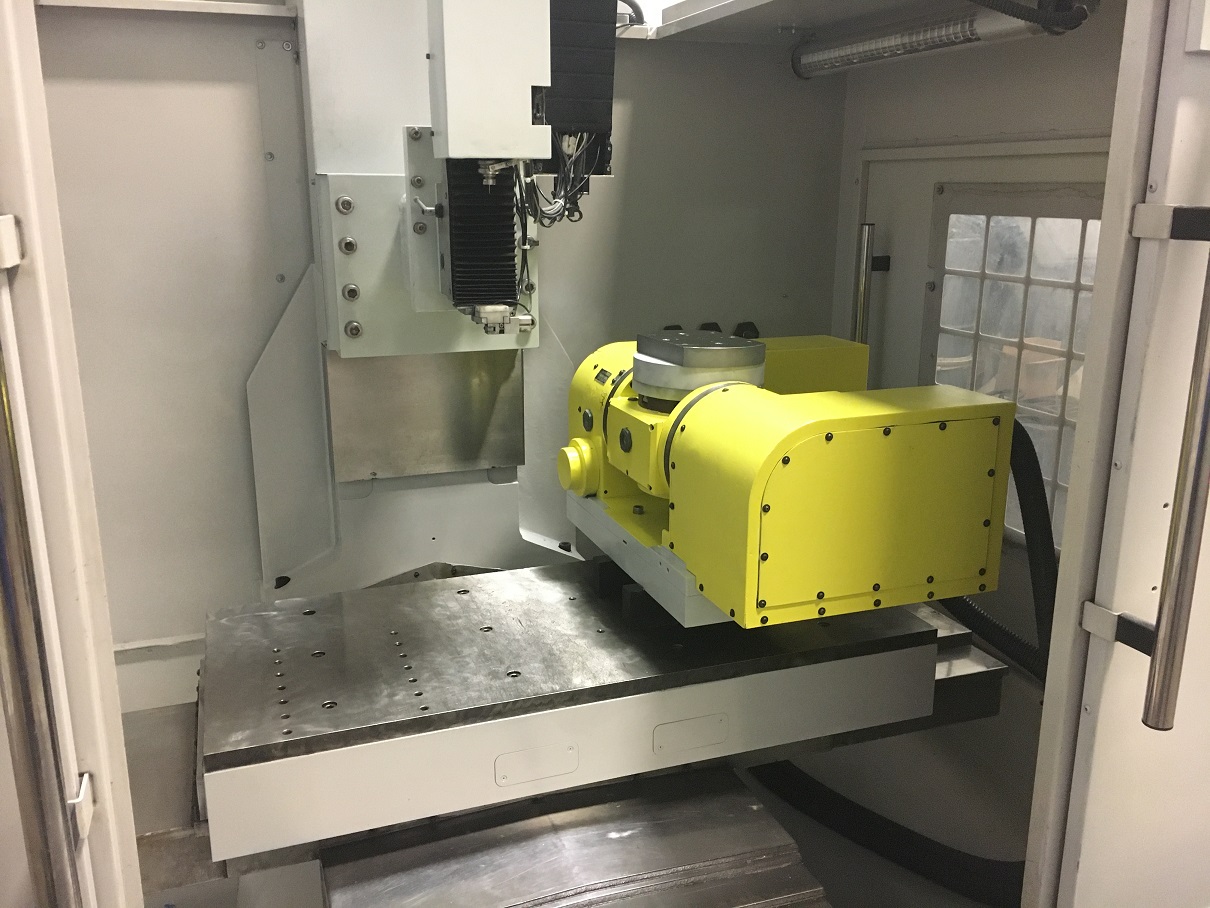

* Siemens 840DI CNC Controller * Nikken 5AX-200II 4th & 5th Axis Rotary Table * Programmable Guide Axis-Programmable Height Adjustment of Spindle * AEC 24 Position Automatic Electrode Changer * Full Machine Tool Guarding * Stainless Steel Riser Support for Rotary Table * High Pressure Flushing Pump * Ebbco 200 Gallon Water Dielectric Unit * Ozone Generator * Auxillary Dielectric Tank * Electric Chiller * All Available Manuals and Accessories
