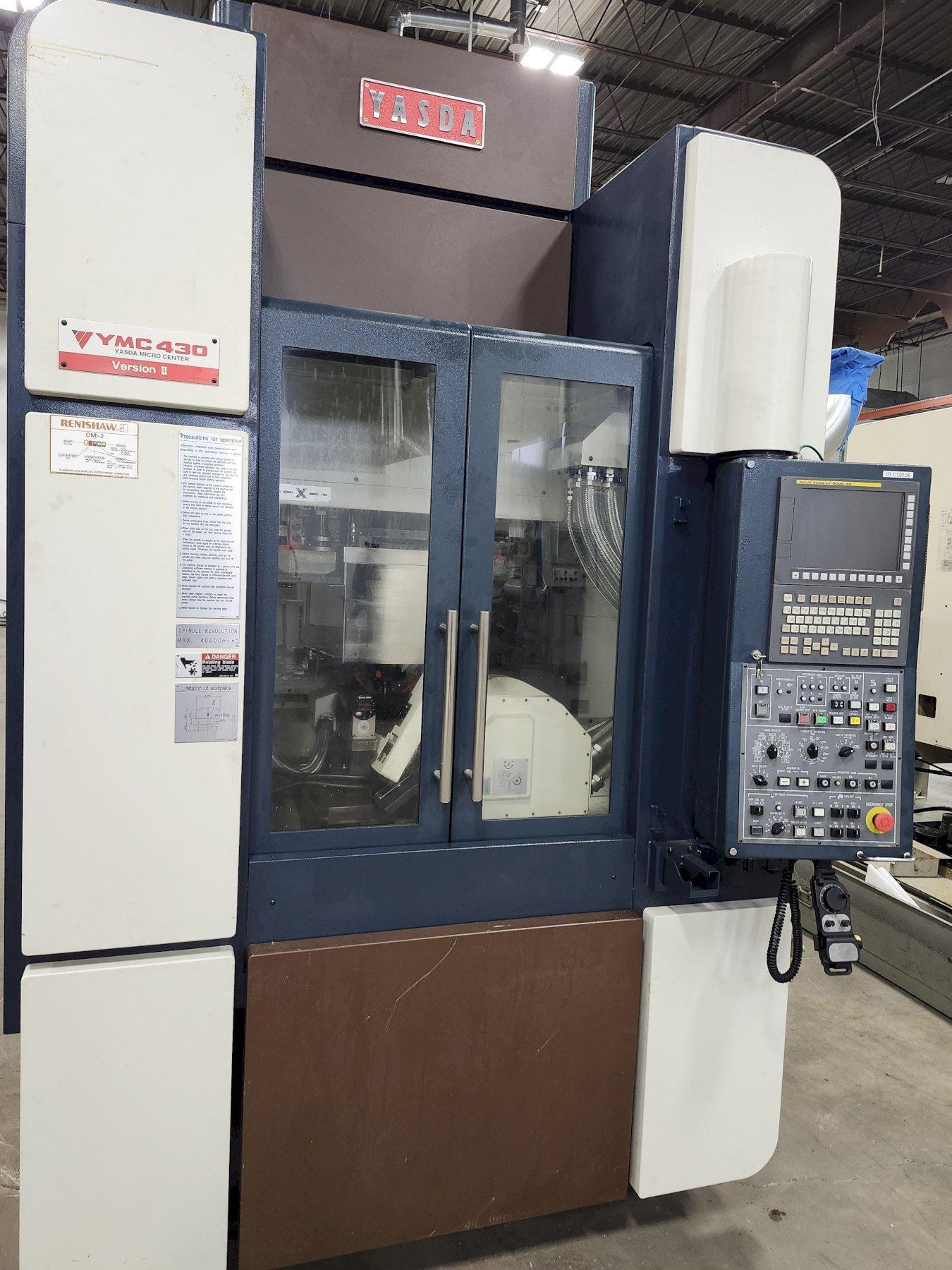

Yasda YMC 430 Ver II High Speed 5-Axis Vertical Machining Center
Stock Number: 2099
Yasda YMC 430 Ver II
Age: 2017
Condition: As Is, Where Is
Yasda YMC 430 is the state-of-the-art high-end machine that meets the constantly increasing demand for ultra-high precision and high quality in the micro machining fields.
The combination of ultra precision linear guides and linear motor drives realizes an ultra high level of straightness and smoothness during axis movement.
Click to view larger photo
| Specification | Description |
|---|
| X-Axis Table Travel: | 16.5" |
| Y-Axis Saddle Travel: | 11.8" |
| Z-Axis Spindle Head Travel: | 9.8" |
| Table to Spindle Nose: | 5.9" - 15.7" |
| Swiveling Range (B-Axis): | -10 to 100 degrees |
| Turning Range (C-Axis): | 360 degrees |
| Table Size: | 26.6" x 13.7" |
| Table Load Capacity: | 33LBS |
| Rapid Feed Rate (XYZ): | 787 IPM |
| Maximum Feed Rate (XYZ): | 393 IPM |
| Spindle Taper: | HSK E32 |
| Spindle Speeds: | 20 - 40,000 RPM |
| Spindle Drive Motor: | 10 HP |
| Automatic Tool Changer: | 32 Station |
| Electrical Requirements: | 400V/3Phz/85kVA |
| Machine Weight: | 17,700 lbs |
| Machine Size: | 135"W x 97"L x 119"H |
Equipped With:

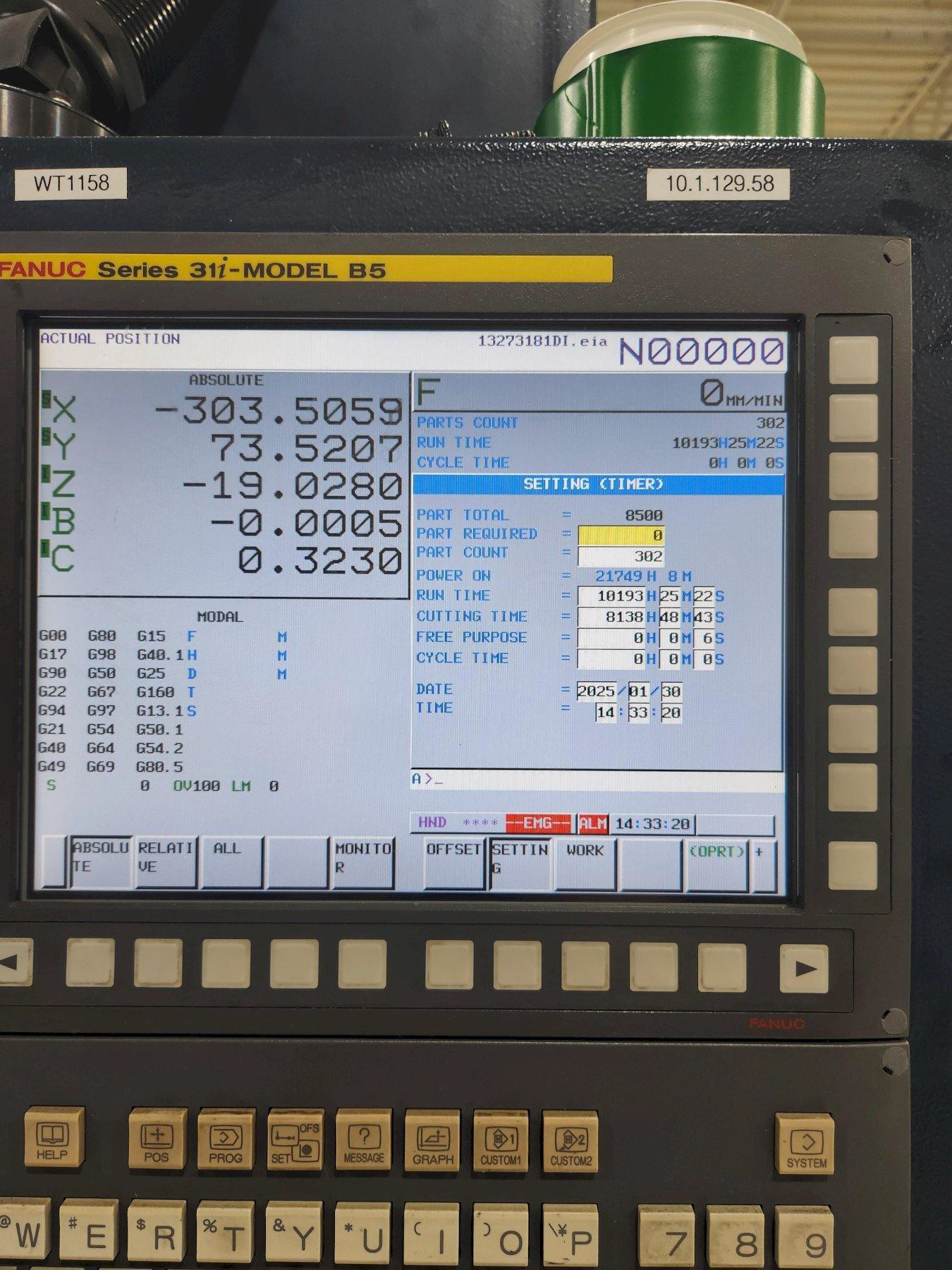

* Fanuc 31i-B5 CNC Control
* 40,000 RPM HSK-E32 Spindle

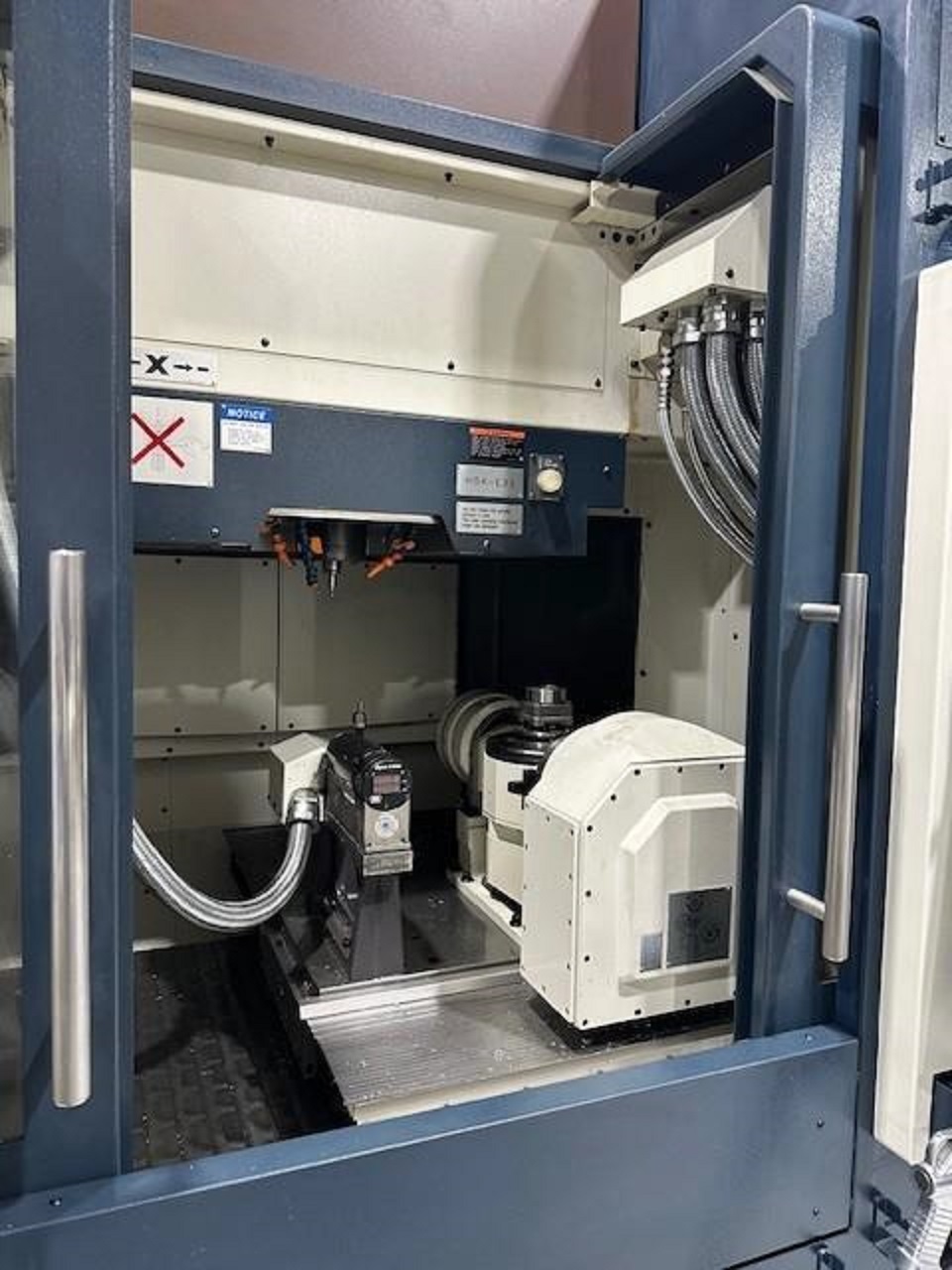

* RT 10 Trunnion Table
* System 3R Macro Standard Table Chuck
* 32 Automatic Toolchanger
* Hard Milling Capability
* Spindle Compensation
* Laser Tool Measuring
* Renishaw OMP 400 Probe
* Remote Hand Control
* Oil Mist Coolant
* Oil Chiller for Spindle and XYZ Axis
* Coolant System
* All Available Manuals and Accessories
