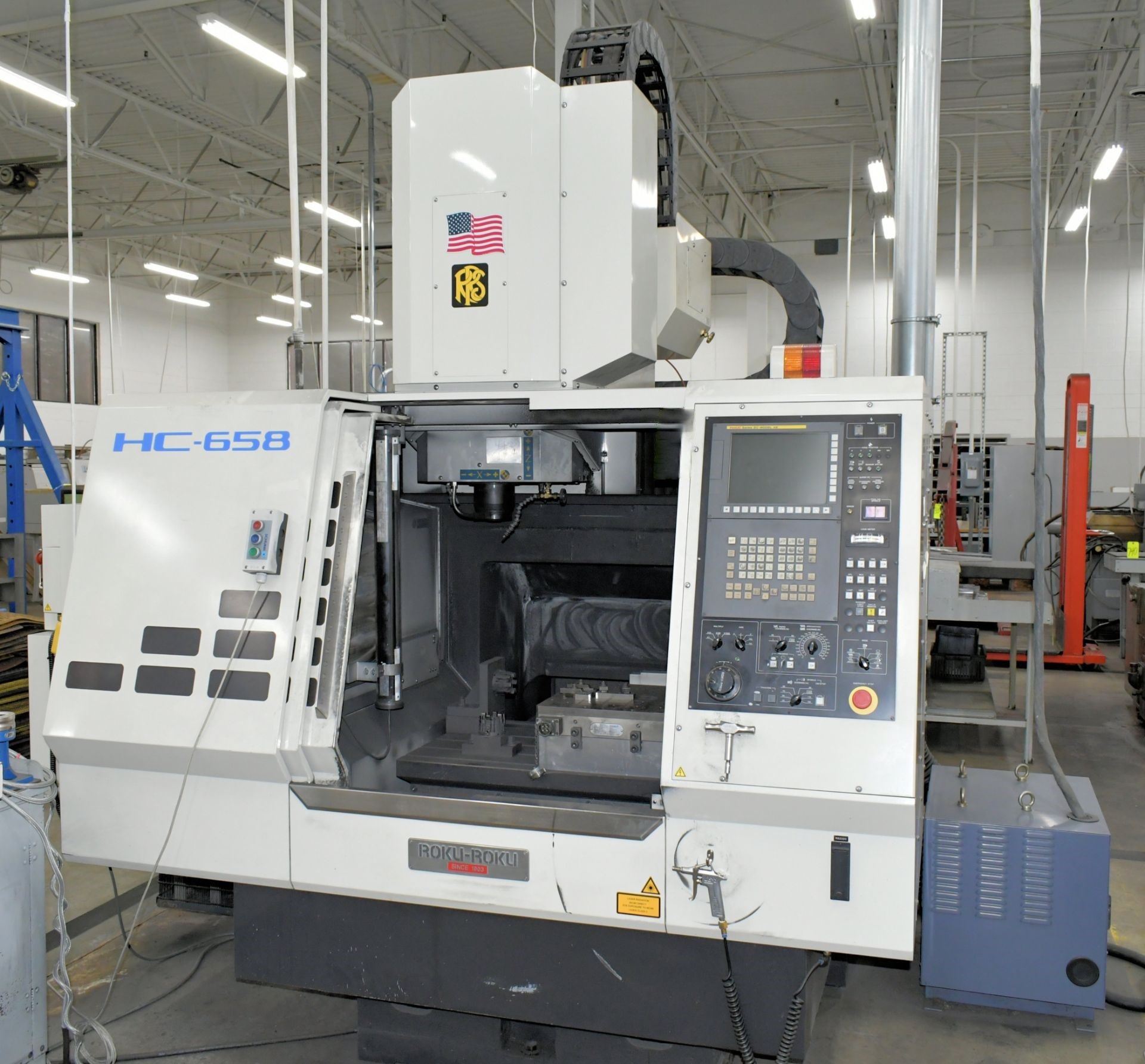

Roku-Roku HC658 High Speed VMC
Stock Number: 2097
Roku-Roku HC658
Age: 2012
Condition: As Is, Where Is
The Roku-Roku HC658 is built to jig borer standards of quality and accuracy. It features bridge style construction with Meehanite cast iron for both the bridge and base. This design provides excellent shock and vibration dampening as well as minimal thermal distortion.
The machine is equipped with dual pneumatic counter balances which provide smooth and accurate movement during high speed contouring and drilling. The 40,000 rpm direct drive spindle utilizes ceramic bearing technology. Spindle temperature is maintained by a spindle oil chiller.
Graphite machining produces volumes of graphite dust which creates excessive machine wear, poor working conditions and environmental hazards. The machine is equipped with a seal tight full enclosure which confines the dust for efficient collection, contaiment and disposal.
Click to view larger photo
| Specification | Description |
|---|
| Machine Travels (X, Y, Z) | 23.6" x 19.6" x 15.7" |
| Table Work Area | 30" x 20" |
| Spindle Speeds | 200 - 40,000 RPM |
| Taper Shank | HSK 40 |
| Rapid Traverse (X, Y, Z) | 787 IPM |
| Tool Storage Capacity | 30 Tools |
| Spindle Motor | 8.5 HP |
| Machine Dimensions (Including Dust Collector) | 118" x 118" x 113" H |
| Power Supply | 200-220V/3Phz/60hz 22KVa |
| Machine Weight | 12,100 lbs |
Equipped With:

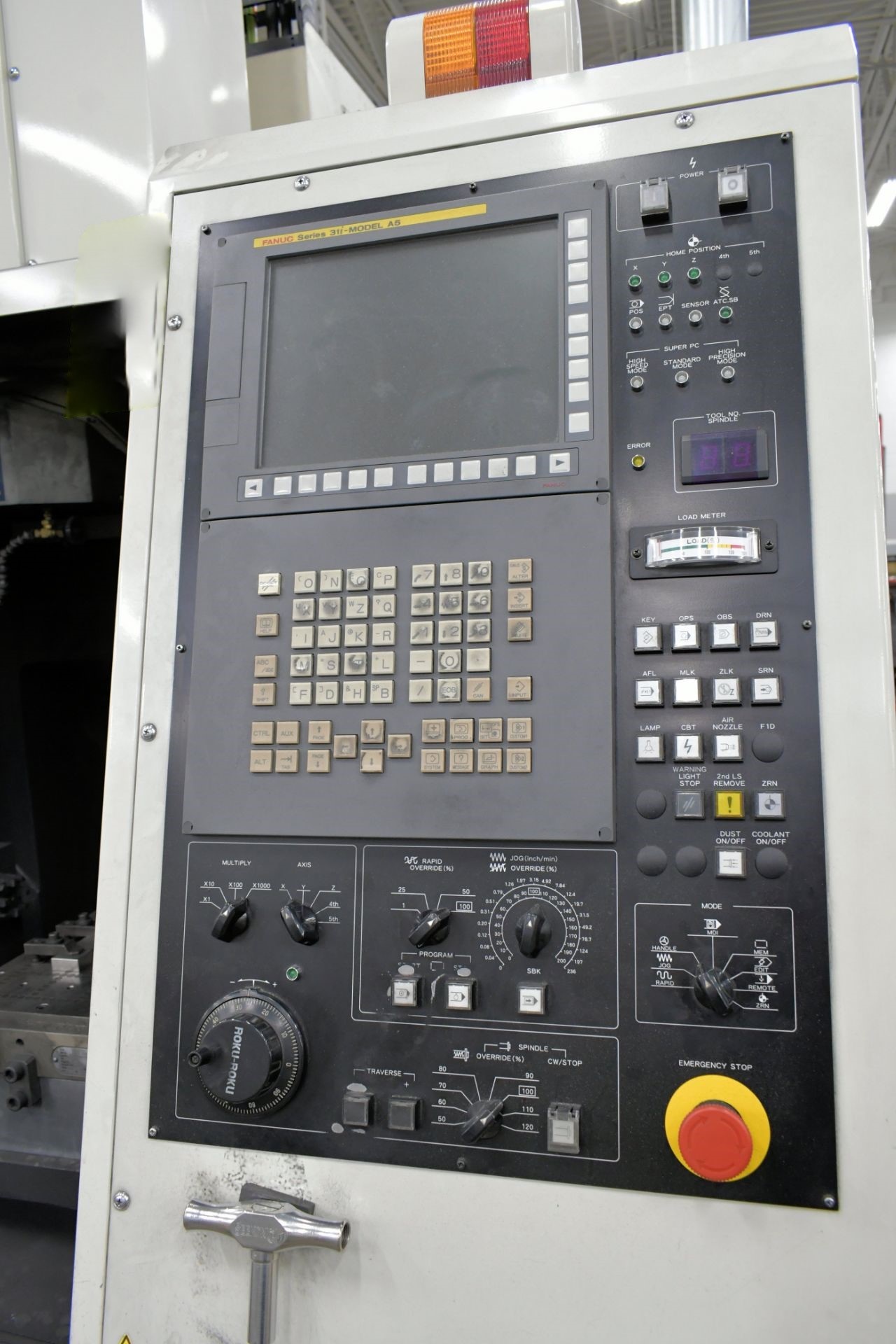

* Fanuc 3li CNC Control
* 40,000 RPM Spindle
* 30 Position Tool Changer
* HSK-E40 Taper
* Super Hybrid Concept - Hard Milling or Graphite

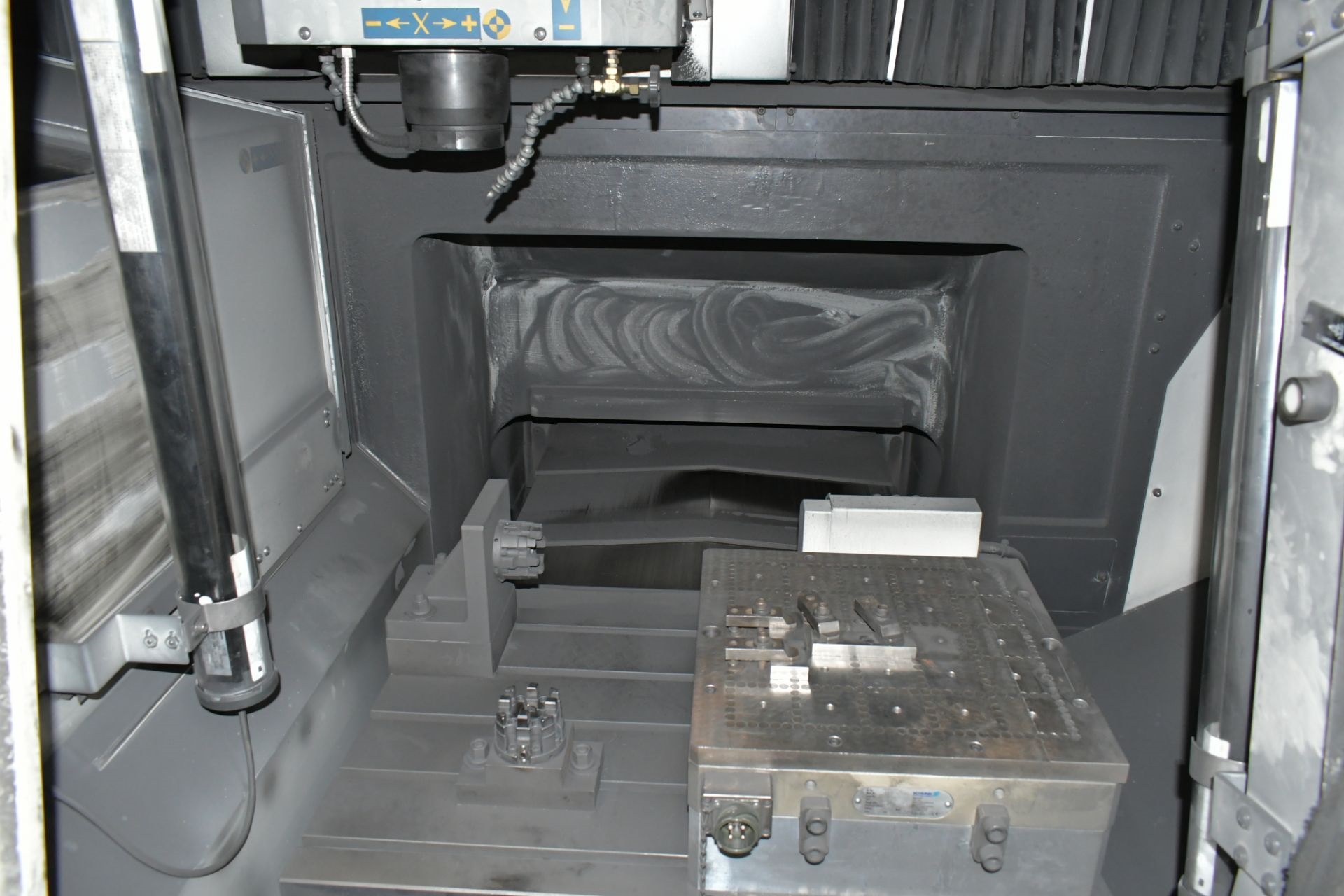

* Schunk Magnetic Table Chuck
* Linear Glass Scales
* Blum TC52 Touch Probe
* AirTight Full Enclosure
* Air Blast Through Spindle
* Oilmatic Spindle Chiller (Chilled & Circulated Oil System)
* Hankison Air Dryer
* Transformer
* All Available Manuals
** System 3R Table chucks are NOT included with the machine.
