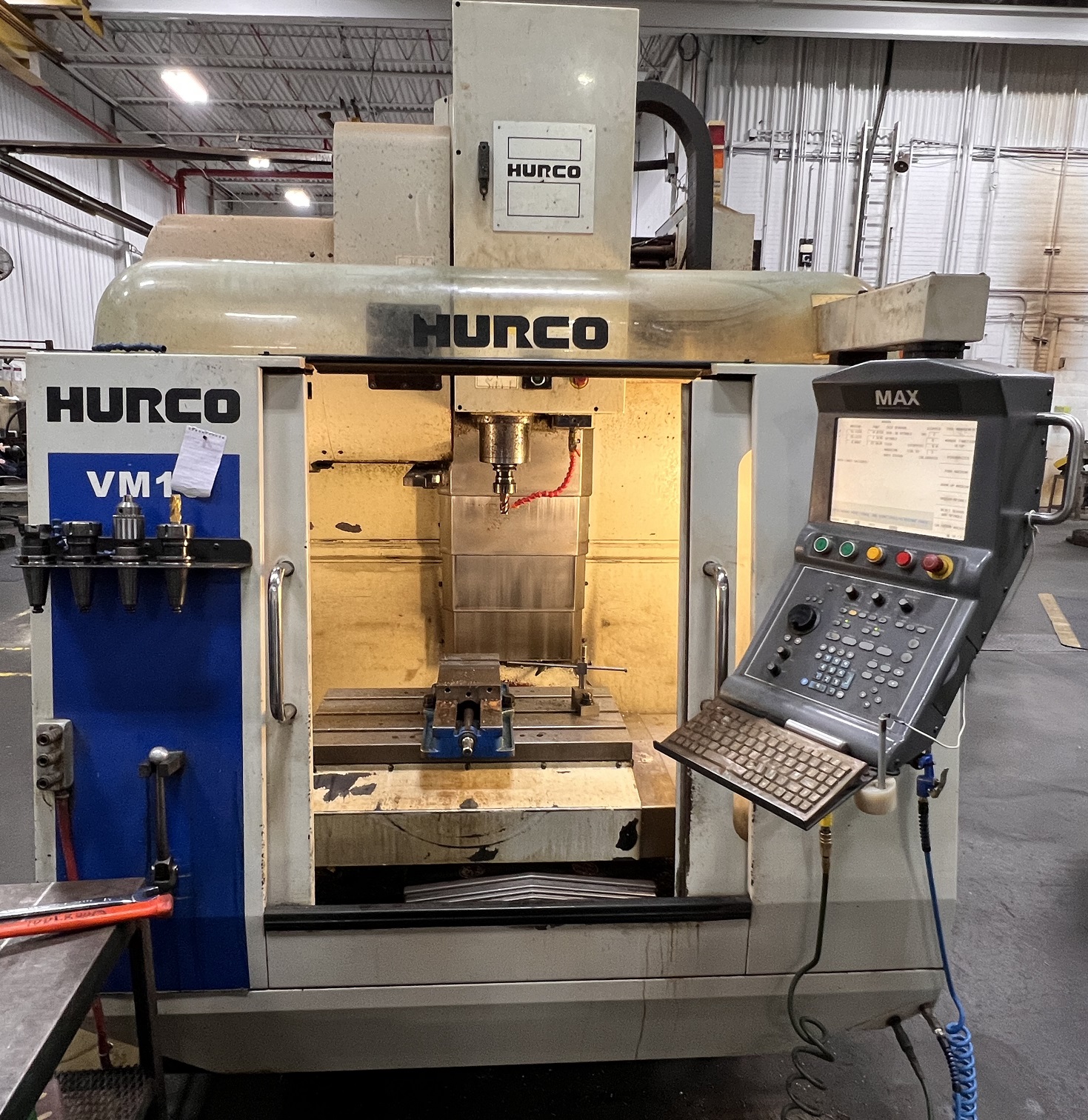

Hurco VM10 Vertical Machining Center

Hurco VM10 Vertical Machining Center

Stock Number: 2091

Hurco VM10

Age: 2008

Condition: As Is, Where Is

The Hurco VM CNC vertical milling machines offer powerful machining with a compact footprint, and absolutely the best value on the market. These small CNC machining centers are the perfect combination of size and functionality. Designed to conserve space with the smallest possible footprint, the VM mills are loaded with remarkably big capacity, productivity and user flexibility.


Click to view larger photo

SpecificationDescription
Machine Travels (X,Y,Z) 26" x 16" x 20"
Table Size30" x 16"
Max Work Load750 Lbs
Spindle Motor15 HP
Spindle Speed10,000 RPM
Tooling TypeCAT 40
Number of ATC Stations20
Max Tool Diameter3.5"
Max Tool Length9.8"
Max Tool Weight15.5 lbs
Rapid Traverse Rate945 IPM
Max Programmable Feedrate300 IPM
Machine Dimensions78" x 91" x 100"H
Machine Weight6,400 Lbs

Equipped With:

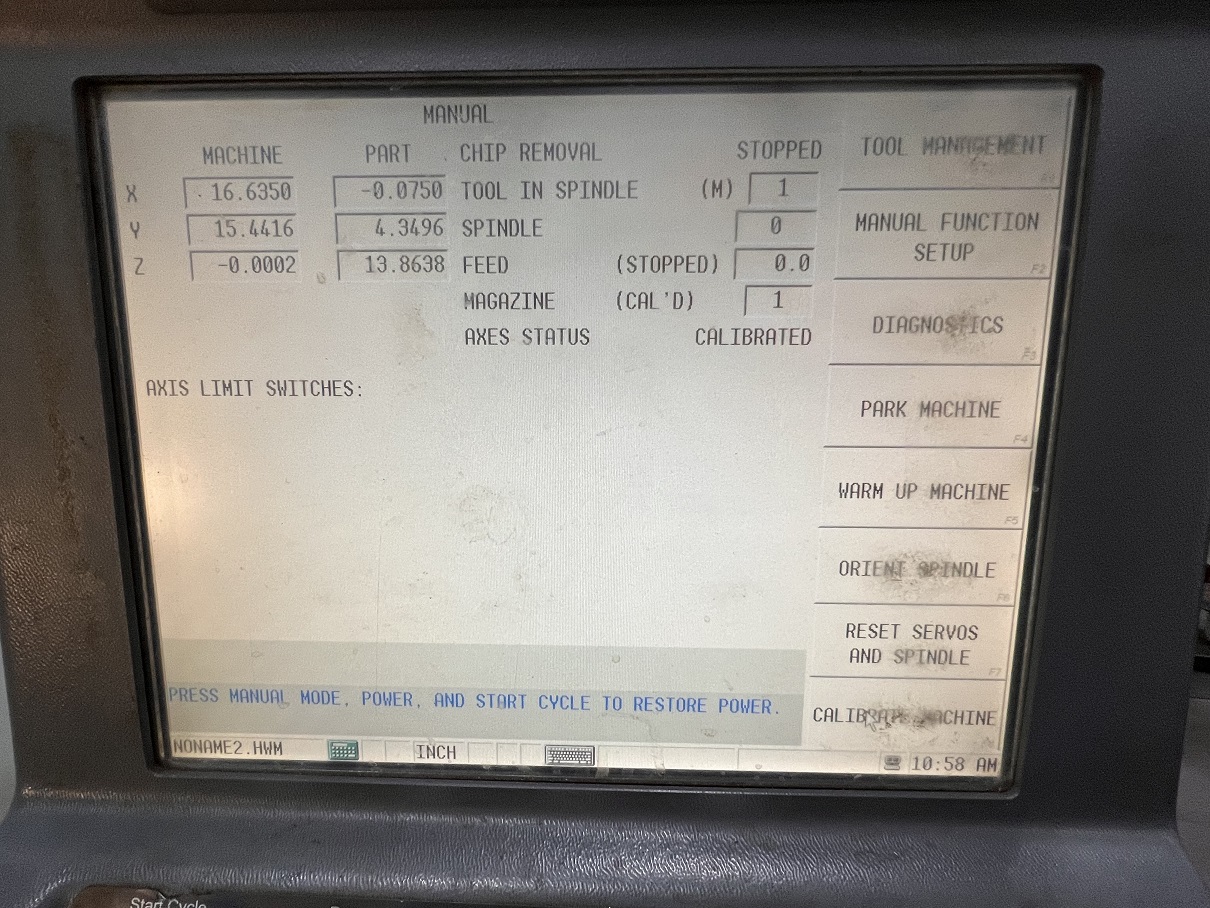

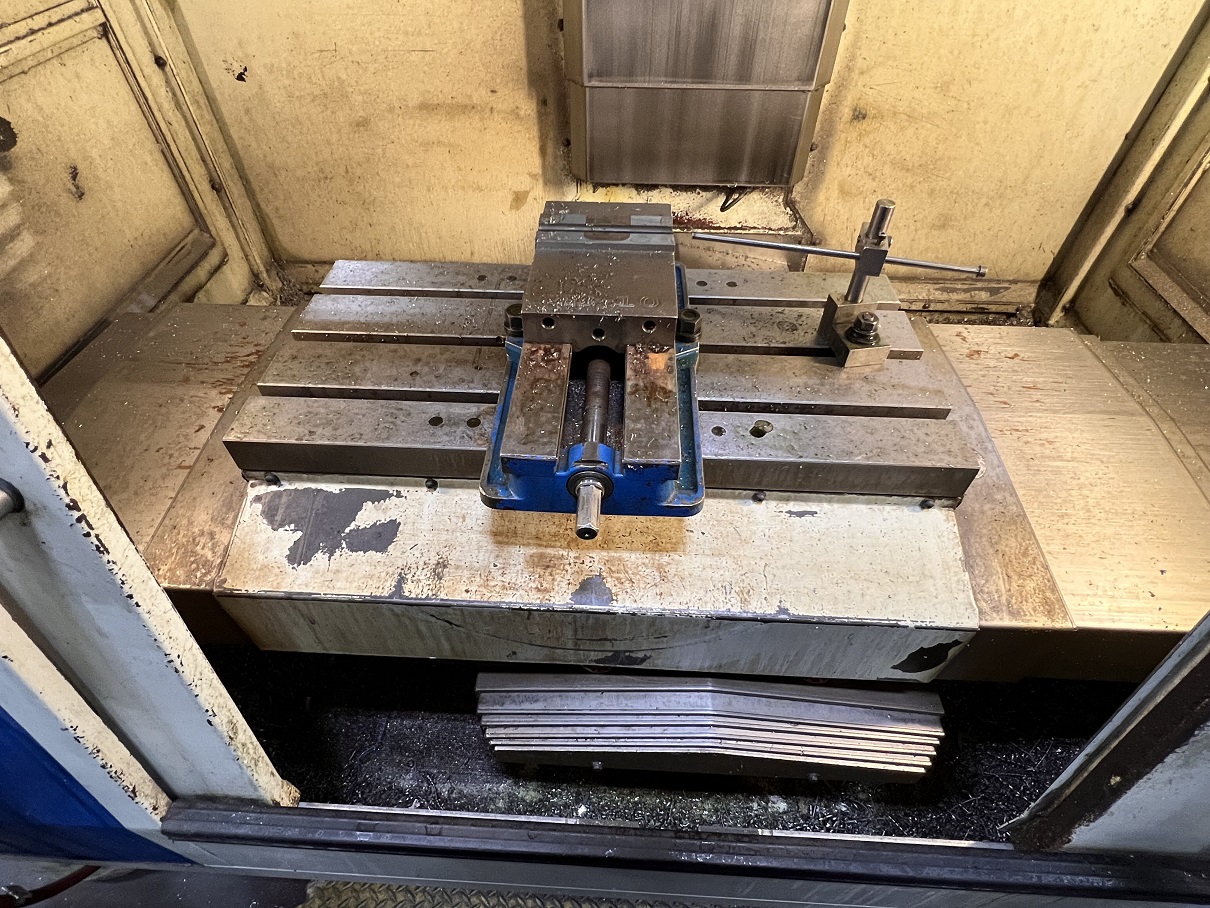

* Hurco WinMax CNC Control * 10,000 RPM Spindle * Rigid Tapping * Coolant Tray ** Table vise and tooling shown are NOT included with the machine.
