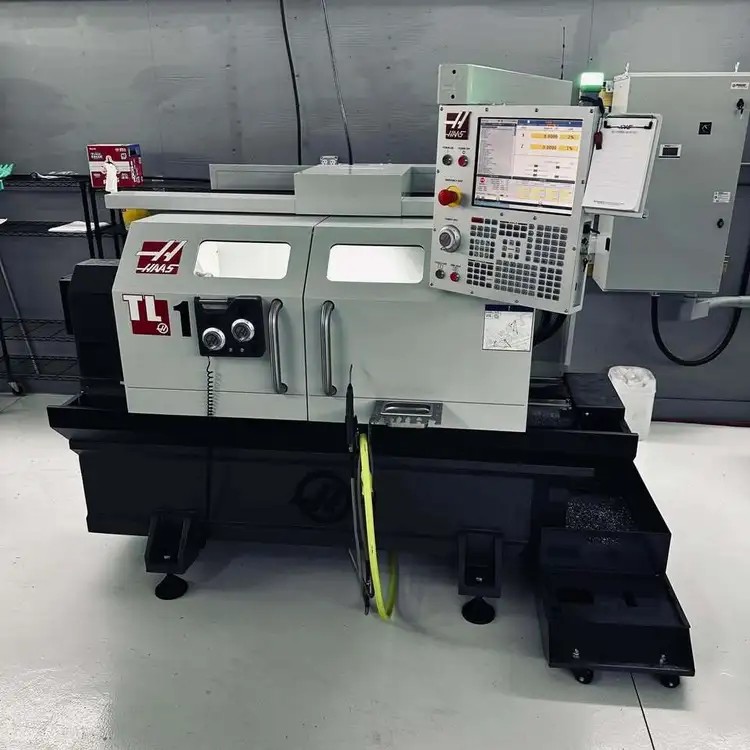

Haas TL-1 CNC Lathe
Stock Number: 4054
Haas TL-1
Age: 2023
Condition: As Is, Where Is
The TL Series Toolroom Lathes are affordable, easy to use, and offer the precision control and flexibility of the Haas CNC system. The TL-1 is very easy to learn and operate - even without knowing G-code. It is the perfect machine for start-up shops, or as a first step into CNC machining.
Click to view larger photo
| Specification | Description |
|---|
| Chuck Size | 8" |
| X-Axis Travel | 8" |
| Z-Axis Travel | 30" |
| Swing | 20" |
| Number of Axis | 2 |
| Power | 10HP |
| Spindle Bore | 2.3" |
| Turning Diameter | 11" |
| Spindle Nose | A2-5 |
| Axis FeedRates | 11.4IPM |
| Approx. Machine Dimensions | 89.0 in x 66.5 in x 83.0 |
| Approx. Machine Weight | 4200lbs |
Equipped With:
* Haas CNC Control
* 4 station automatic turret
* Electronic hand wheels
* 3000 rpm 12hp spindle

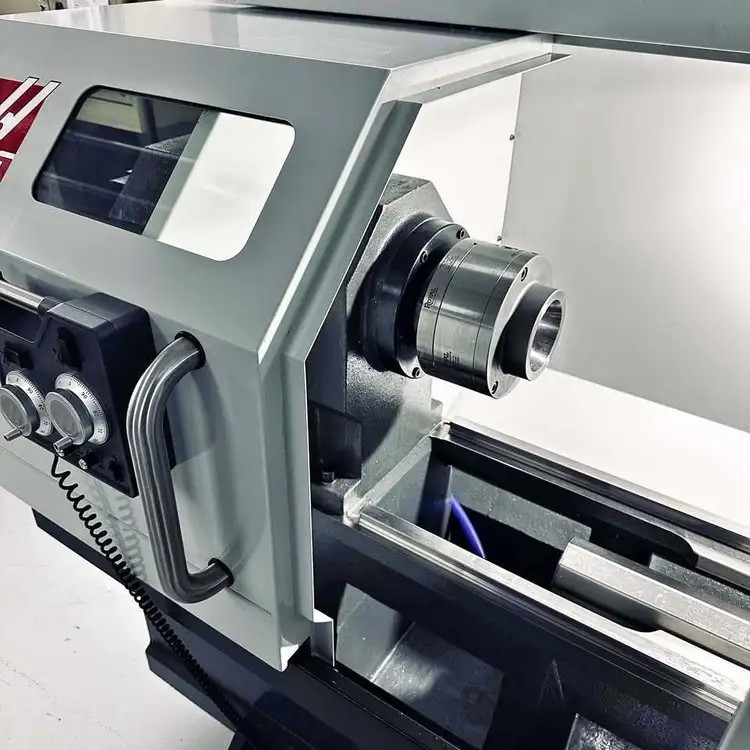

* QG65 Royal Collet Chuck
* Coolant Pump
* Single phase 220v
* All Available Disks and Manuals
RC Machinery Sales Company
PO Box 563
Hampshire, IL 60140
630-927-3247
