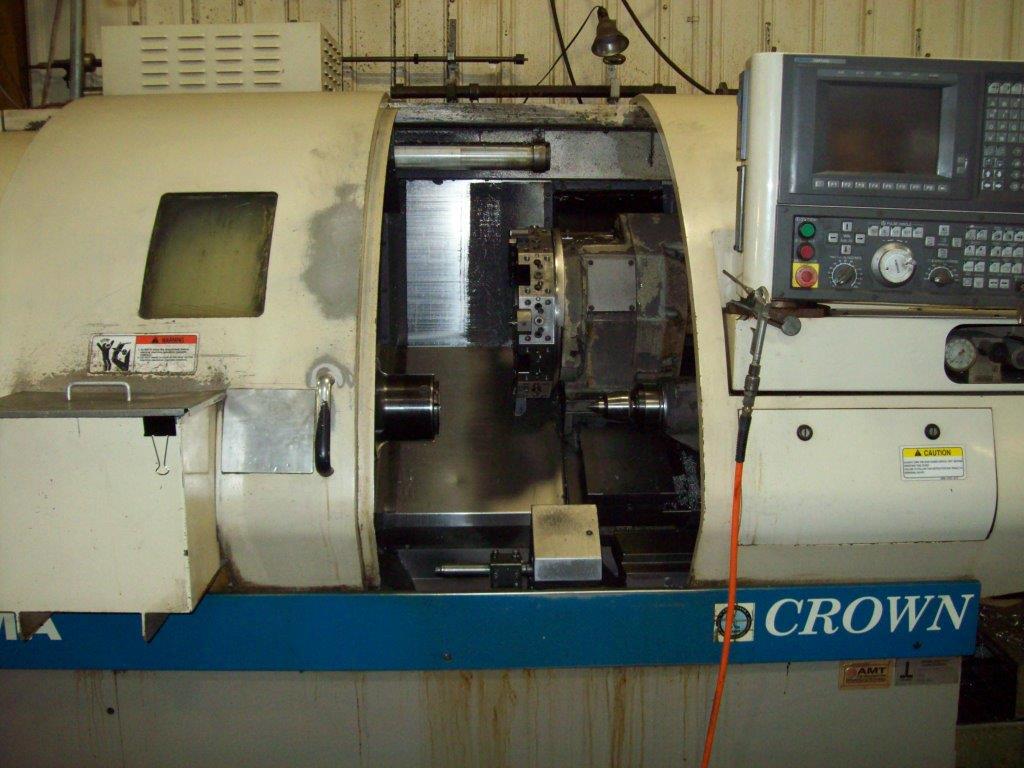

Okuma Crown "Big Bore" CNC Lathe
Stock Number: 4040
Okuma Crown BB
Age: 1998
Condition: As Is, Where Is
The Okuma Crown lathe is built with a Solid Box-Way design including Hand-Scraping, Direct-Drive Ball Screw System, Servo Driven Turret, and Okuma's own OSP CNC control. These features and more provide you with a lathe that offers more Accuracy, Reliability and Productivity than most in it's class.
Click to view larger photo
| Specification | Description |
|---|
| Chuck Size | 10" |
| Swing Over Bed | 21.75" |
| Maximum Turning Diameter | 10.63" |
| Maximum Turning Length | 20.47" |
| Spindle Bore | 3.15" |
| Bar Capacity | 2.75" |
| Spindle Motor | 24HP |
| Spindle Speeds | 50 - 3,500 RPM |
| Maximum Torque | 361 Ft/Lbs |
| Rapids X/Z | 591/787 ipm |
| Tool Stations | 12 Station Servo Turret |
| Turret Index Time | 0.2 (Servo) |
| Boring Bar Capacity | 1.5" |
| Square Tool Capacity | 1." |
| SMW Barfeed Capacity | .25"-3.125" Dia |
| SMW Barfeed Length(limit by length of spindle) | 5'6" |
| SMW Barfeed Bar Capacity | 6@3.125" to 68@.5" |
| Electrical Requirements | 220V/3Phz |
| Machine Dimensions | 95" x 69" x 71" |
| Machine Weight | 9,800 Lbs |
Equipped With:
* Okuma OSP 700L CNC Control
* 10" Kitagawa Power Chuck
* ATS S30 Collet Chuck
* Big Bore Spindle
* 12 Station Fast Servo Turret
* User Task II
* LAP 4
* IGF (Conversational Control)
* Programmable Tailstock
* Flood Coolant
* Air Blow
* Worklight

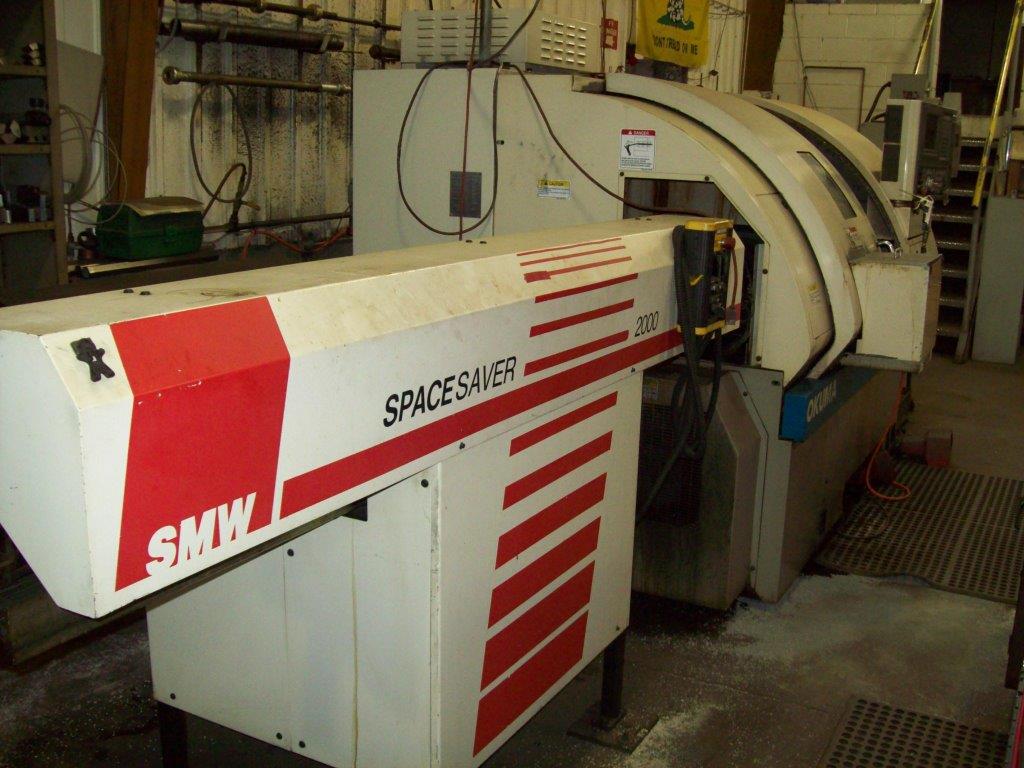

* SW Space Saver 2000 Barfeed
* Chip Conveyor
* Assorted Collets, Tool Blocks, and Spindle Liners
* All Available Manuals and Accessories
RC Machinery Sales Company
PO Box 563
Hampshire, IL 60140
630-927-3247
rob@rcmachinerysales.com
