Charmilles Robofil 440CC Wire EDM
Stock Number: 0499

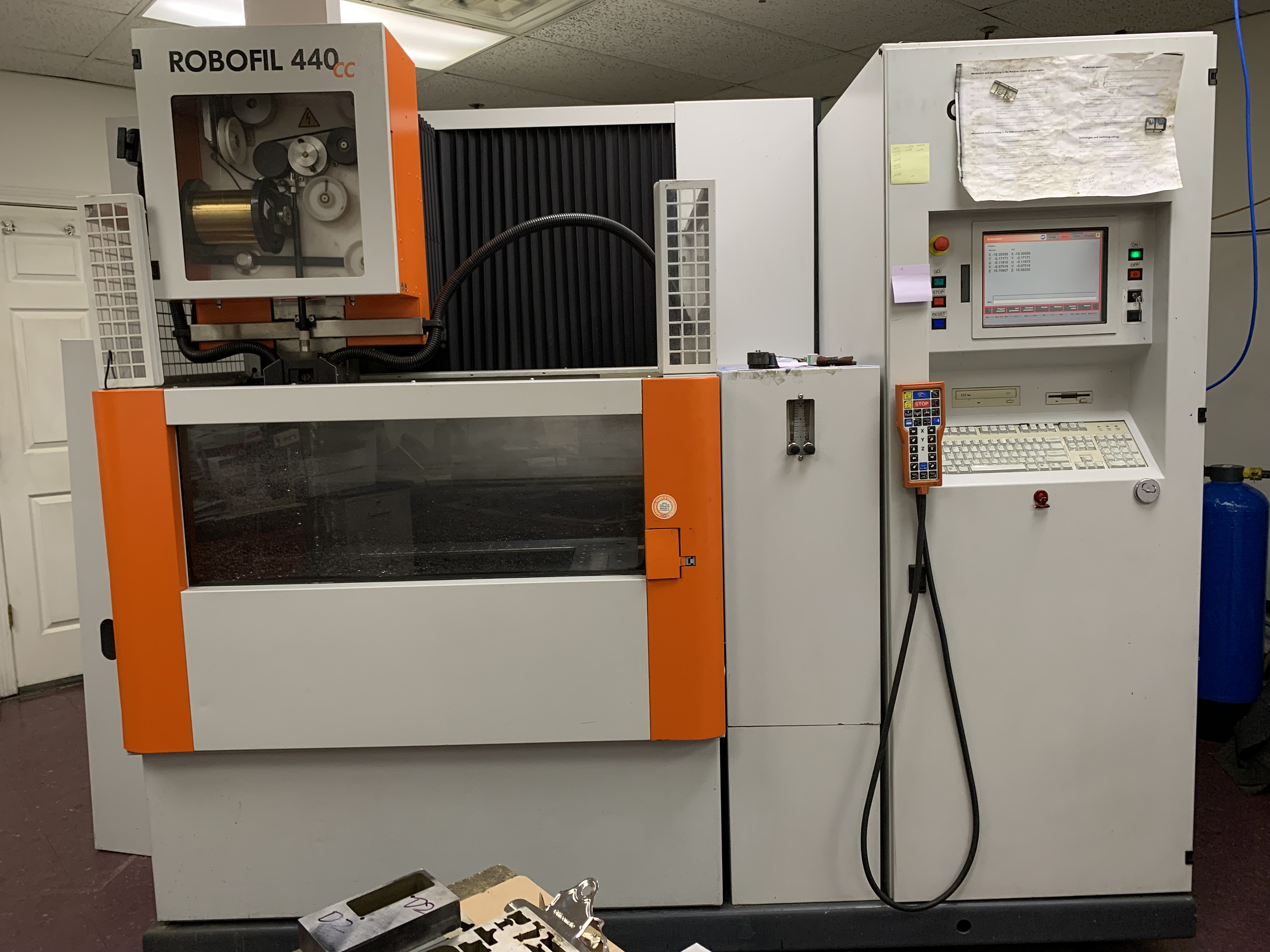

Charmilles Robofil 440CC
Age: 2006
Condition: As Is, Where Is
* Space saving compact design

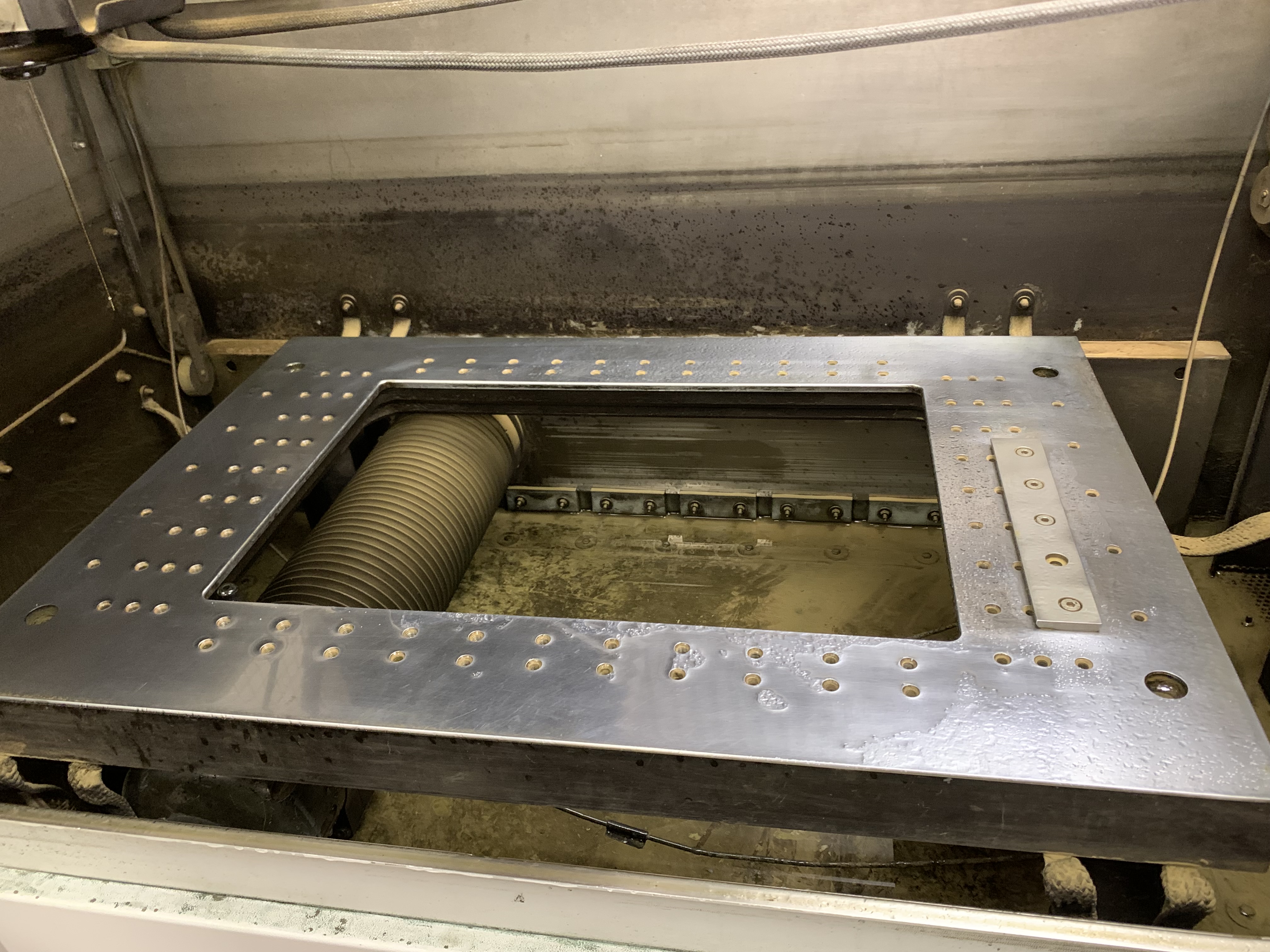

* Chrome harden table - 56Rc
* Heavy workpiece design without the loss of accuracy
* Low consumable cost filtration system
* 30° taper capability at max Z height
* 0.00002" resolution glass scales on all axes
* Industrial speed of 37sq. inches/hour
* Collision protection on all axes
* Rhenocast base for thermo stability and vibration dampening
Click to view larger photo
| Specification | Description |
|---|
| X, Y, Z Travels: | 21.7" x 13.8" x 15.75" |
| Extended Z Travel: | 24" with Charmilles Riser |
| Maximum Workpiece Dimensions: | 47.24" x 27.6" x 15.75" |
| Table Dimensions: | 35.43" x 23.62" |
| U, V Travel: | 21.7" x 13.8" |
| Maximum Taper Angle: | +/- 30 Deg / 15.75" |
| Wire Capability: | .004" to .013" |
| Reservoir Capacity: | 431 Gallons |
| Power Supply: | 380/400 V , 10 KVA |
| Machine Dimensions: | 117" x 145" x 97" |
| Machine Weight: | 7,200 Lbs |
Equipped With:

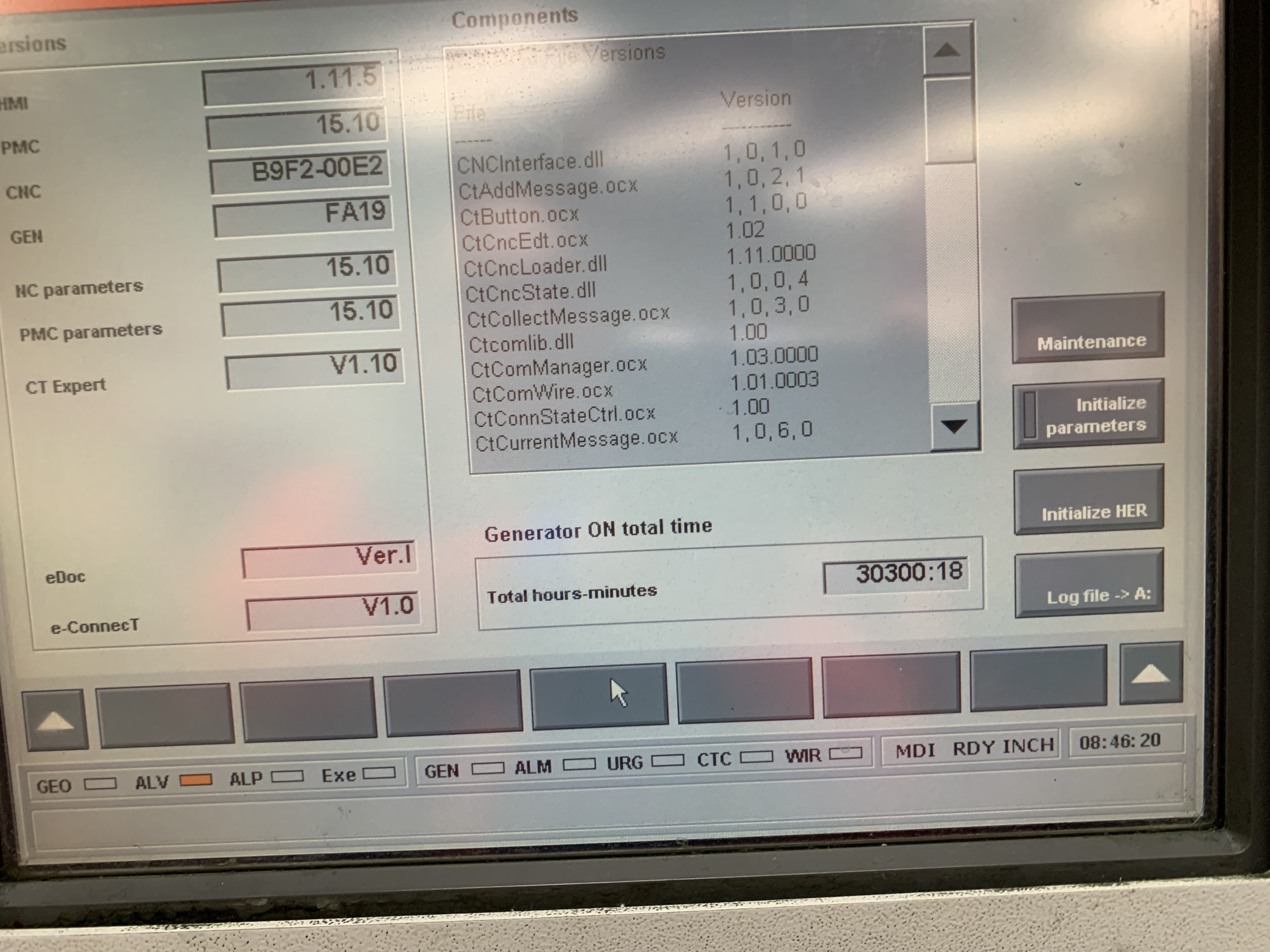

* Charmilles Millennium CNC Control
* AC Clean Cut Generator & Technology
* Submerged Cutting Capability
* Automatic Wire Threading
* Additional X-Axis opening - 14" Cubed
* Factory installed and removable Z axis riser for up to 24" submerged cutting capabilities
* Large Diameter Wire Spooler (44lbs.)
* Advantage Electric Chiller
* Transformer
* All Available Manuals and Accessories
