Charmilles Robofil 440CC Wire EDM
Stock Number: 0486

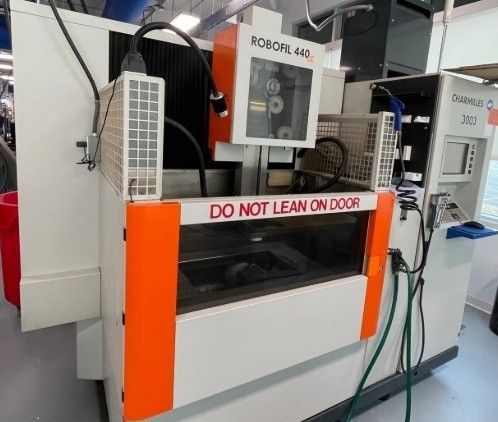

Charmilles Robofil 440CC
Age: 2003
Condition: As Is, Where Is
* Space saving compact design

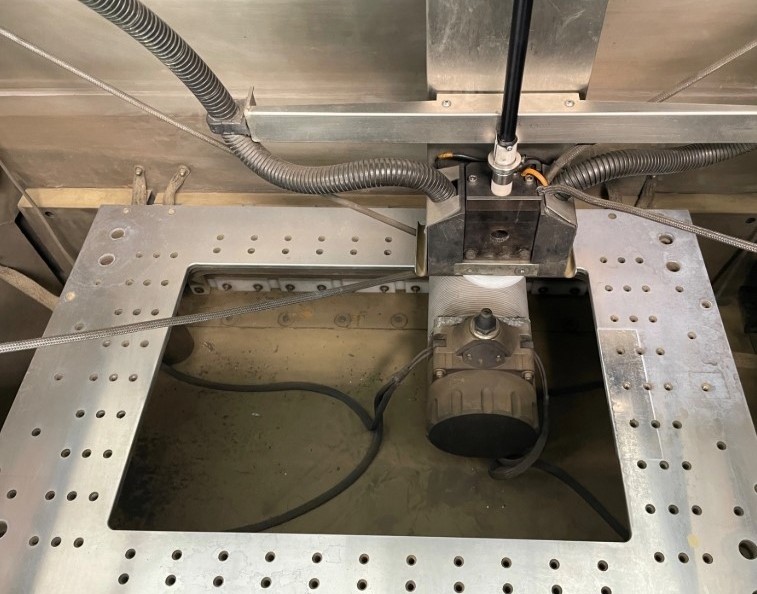

* Chrome harden table - 56Rc
* Heavy workpiece design without the loss of accuracy
* Low consumable cost filtration system
* 30° taper capability at max Z height
* 0.00002" resolution glass scales on all axes
* Industrial speed of 37sq. inches/hour
* Collision protection on all axes
* Rhenocast base for thermo stability and vibration dampening
Click to view larger photo
| Specification | Description |
|---|
| X, Y, Z Travels | 21.7" x 13.8" x 15.75" |
| Maximum Workpiece Dimensions | 47.24" x 27.6" x 15.75" |
| Table Dimensions | 35.43" x 23.62" |
| U, V Travel | +/- 30 Deg / 15.75" |
| Wire Capability | .004" to .013" |
| Maximum Taper Angle | +/- 30 Deg / 15.75" |
| Reservoir Capacity | 317 Gallons |
| Power Supply | 380/400 V , 10 KVA |
| Machine Dimensions | 102.36" x 110.63" x 83" |
| Machine Weight | 7,200LBS |
Equipped With:
* Charmilles Millennium CNC Control
* AC Clean Cut Generator & Technology
* Submerged Cutting Capability
* Automatic Wire Threading
* Large Diameter Wire Spooler (44lbs.)
* Transformer
* All Available Manuals and Accessories
