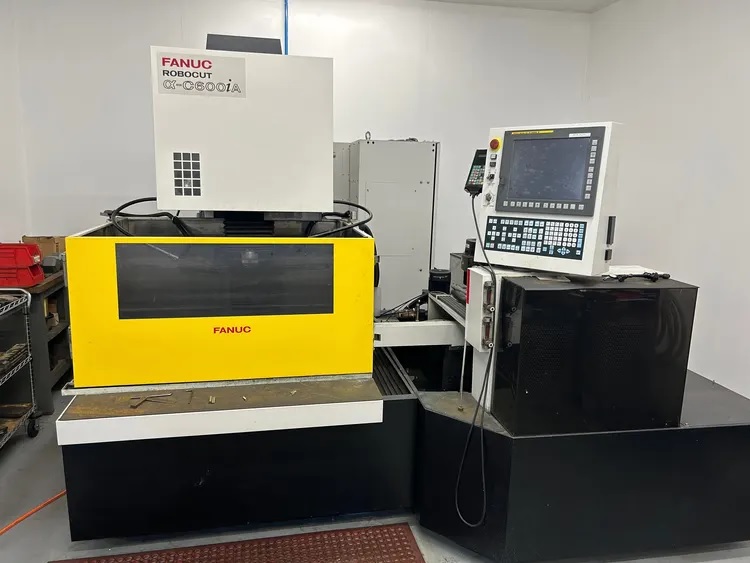

Fanuc Robocut c600iA Wire EDM
Stock Number: 0479
Fanuc c600iA
Age: 2016
Condition: As Is, Where Is
FANUC CiA Series Wire EDM machines feature the powerful FANUC 31i-WB Control, extremely reliable auto-thread and a new economy mode for energy and wire usage savings. The ciA-Series machines burn with virtually no re-cast and the AWF has been enhanced to thread while submerged through the gap of a workpiece with a thickness of up to 8".
| Specification | Description |
|---|
| Max. Part Size (L x D x H) in. | 44.000" x 32.300" x 12.200" |
| Worktank Capacity | 301 Gal |
| Max. Part Weight | 3,550 Lbs |
| Max. Cutting Speed | 31.00 ipm |
| Travels X/Y/Z | 23.6"x15.7"x16.1" |
| Travels U/V | ±3.937" |
| Wire Size | .004"-.012" |
| Linear Glass Scales | .000004" |
| Total Power Requirement | 13KVA 200-220V/3Phz/60Hz |
| Machine Weight | 6,700 Lbs |
| Machine Total Footprint | 116" x 108" x 85"H |
Equipped With:
* Fanuc 31i-WB Control
* 15" Touch Screen Interface
* Wire Size - .004-.012"
* AC power supply (Anti-Electrolosys)
* Inverter Controlled Chiller
* All available manuals and disks
