Mitsubishi FX-10K Wire EDM
Stock Number: 0473
Mitsubishi FX-10K
Age: 1998
Condition: As Is, Where Is
This machine is designed for superior accuracy and rigidity. Equipped for submerged cutting with automatic wire threader and dielectric system.

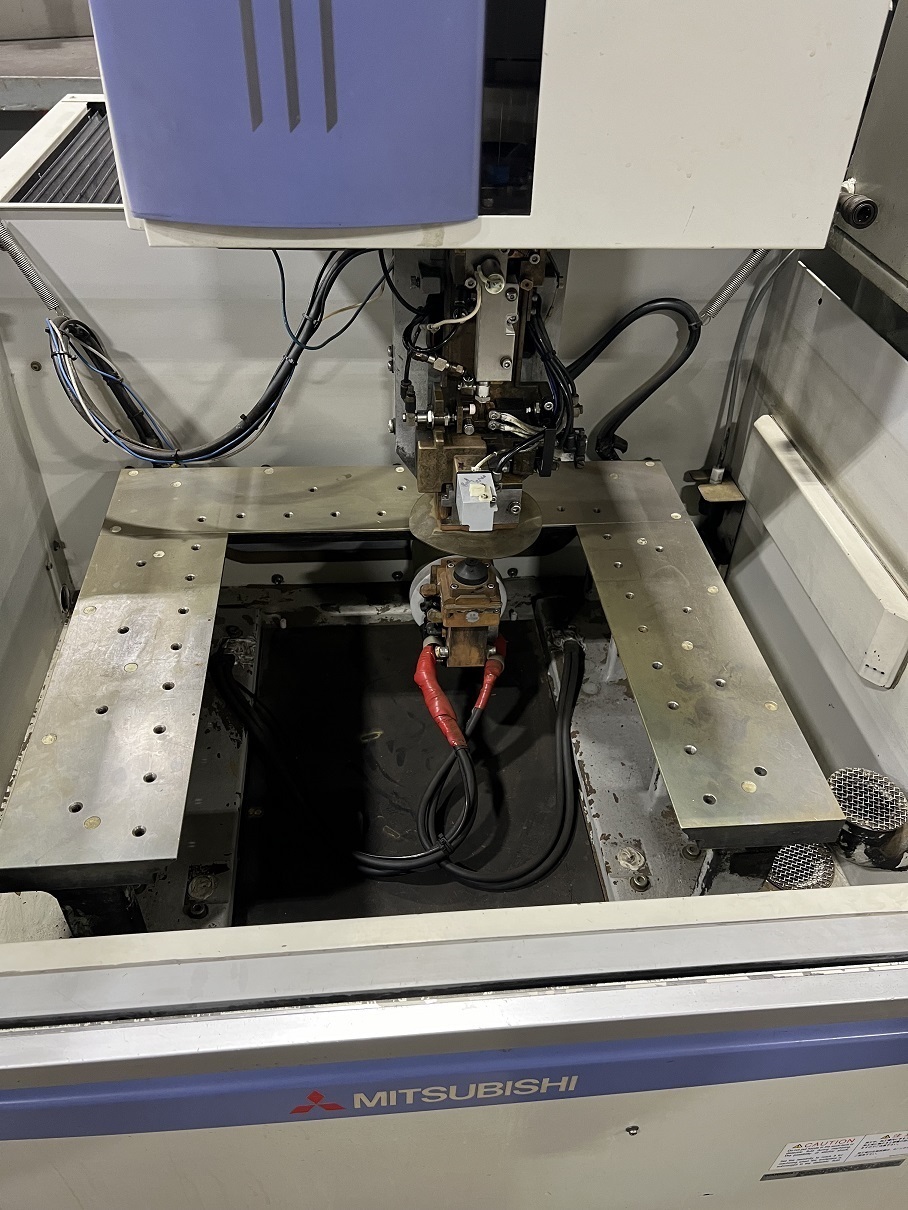

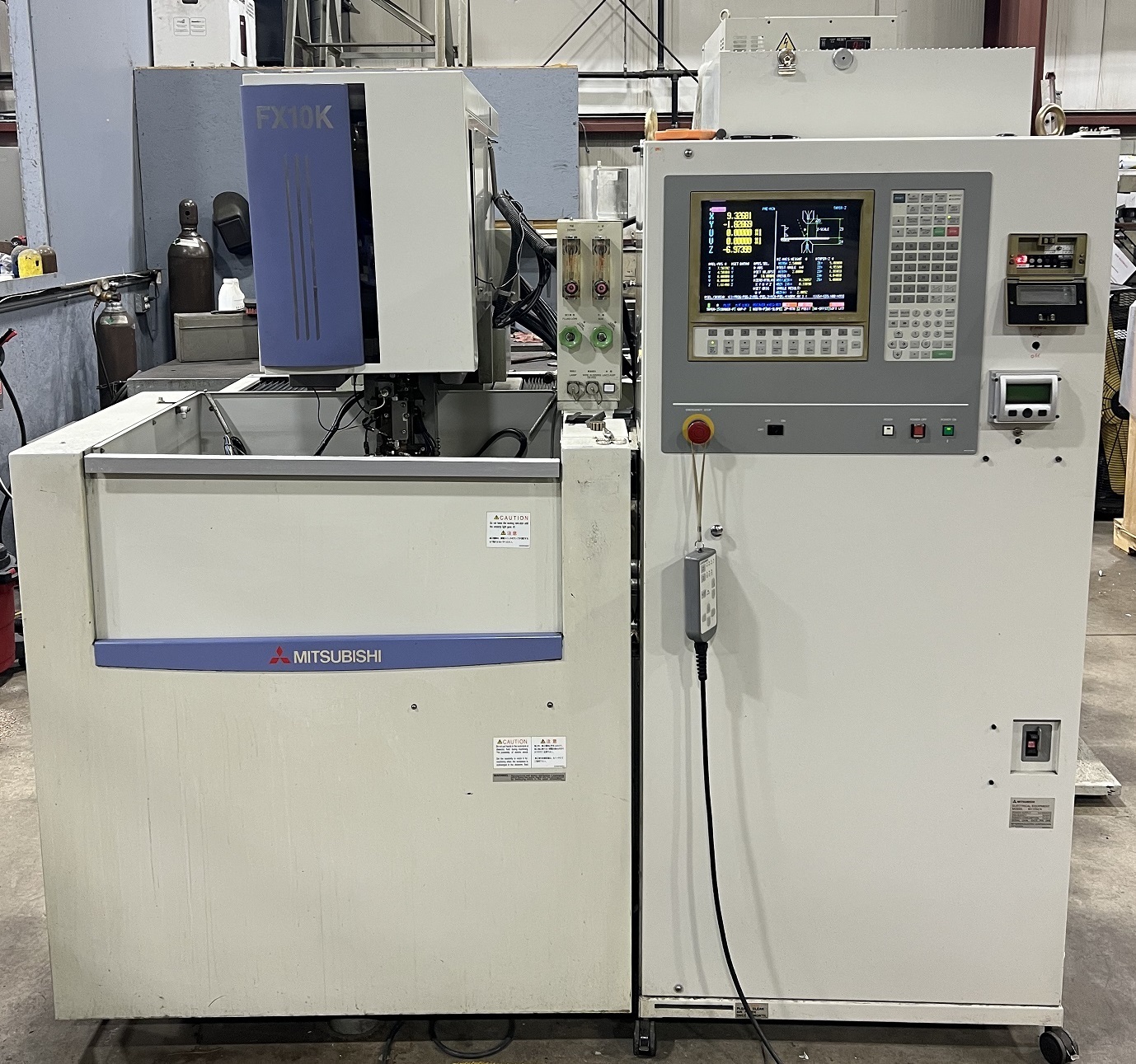

Click to view larger photo
| Specification | Description |
|---|
| Machining Stroke (X x Y x Z) | 13.77" x 9.84" x 8.66" |
| Table Size | 24.80" x 20.86" |
| Maximum Workpiece Size | 31.49" x 22.63" x 8.66" |
| Maximum Workpiece Weight | 1,168 Lbs |
| Taper Capacity | 15 degrees +/- in 4" |
| Wire Diameter Capability | .004" - .012" |
| Wire Guides Included | .010" Dia |
| Maximum Amperage | 40 Amps |
| Approximate Overall Dimensions | 92" x 91" x 90" |
| Approximate Machine Weight | 4,070 Lbs |
Equipped With:

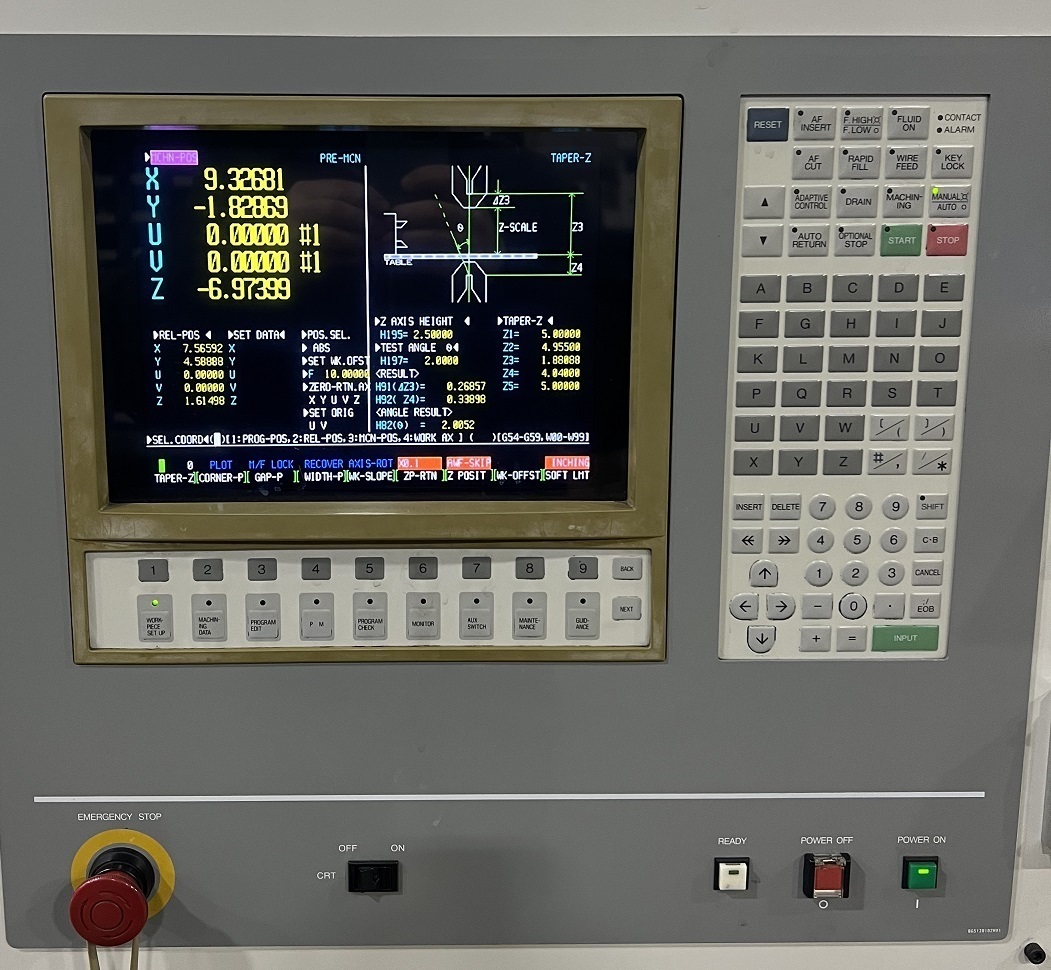

* Mitsubishi 32 Bit CNC 5 Axis Control w/ 14" Color CRT
* Automatic Wire Threader (AF3)
* Submerged Cutting Capability
* USB Emulator
* Wire Chopper
* Anti-Electrolysis Power Supply
* Three-Sided Stainless Table
* Air Cooling Unit
* All Available Manualsand Accessories
