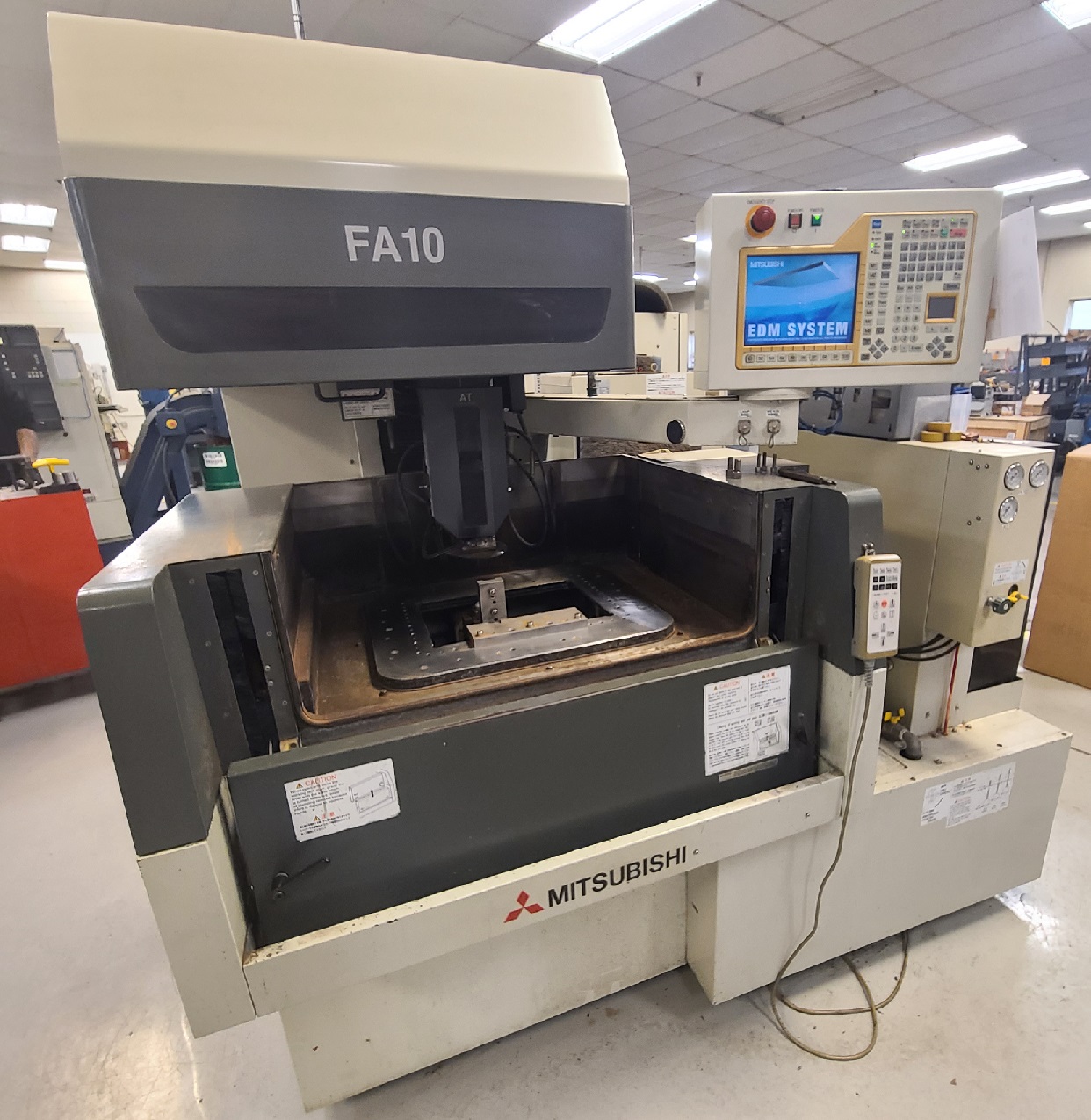

Mitsubishi FA-10 Wire EDM
Stock Number: 0451
Mitsubishi FA-10
Age: 2002
Condition: As Is, Where Is
The FA Series showcases Mitsubishi's continuous dedication to high precision. Die machining has never been as simple as it is now, with the FA Series' anti-electrolysis technology. Power Master makes parts with varying thicknesses and shapes faster and easier, saving up to 50% machining time over previous models.
Click to view larger photo
| Specification | Description |
|---|
| Machining Stroke (X x Y x Z) | 13.8" x 9.8" x 8.6" |
| Table Size | 23.2" x 20.2" |
| Maximum Workpiece Size | 31.5" x 23.6" x 8.5" |
| Maximum Workpiece Weight | 1,105 lbs |
| Machining Stroke (U x V) | ±1.25" x ±1.25" |
| Taper Capacity | +-30 deg max / +-15deg @ 4" |
| Wire Diameter Range Possible | 0.006"~0.012" |
| Wire Guides Included | .010" |
| Min Hole Diameter for Autothread | .020" |
| Max Wire Spool Size | 22 lbs |
| Filter Tank Capacity | 116 gal |
| Approximate Overall Dimensions | 77.7" x 81.6" x 80.71" |
| 77.7" x 81.6" x 80.71" | 4,400 lbs |
Equipped With:
* Mitsubishi 64 Bit PC Based CNC Control
* Submerged Machining Capability

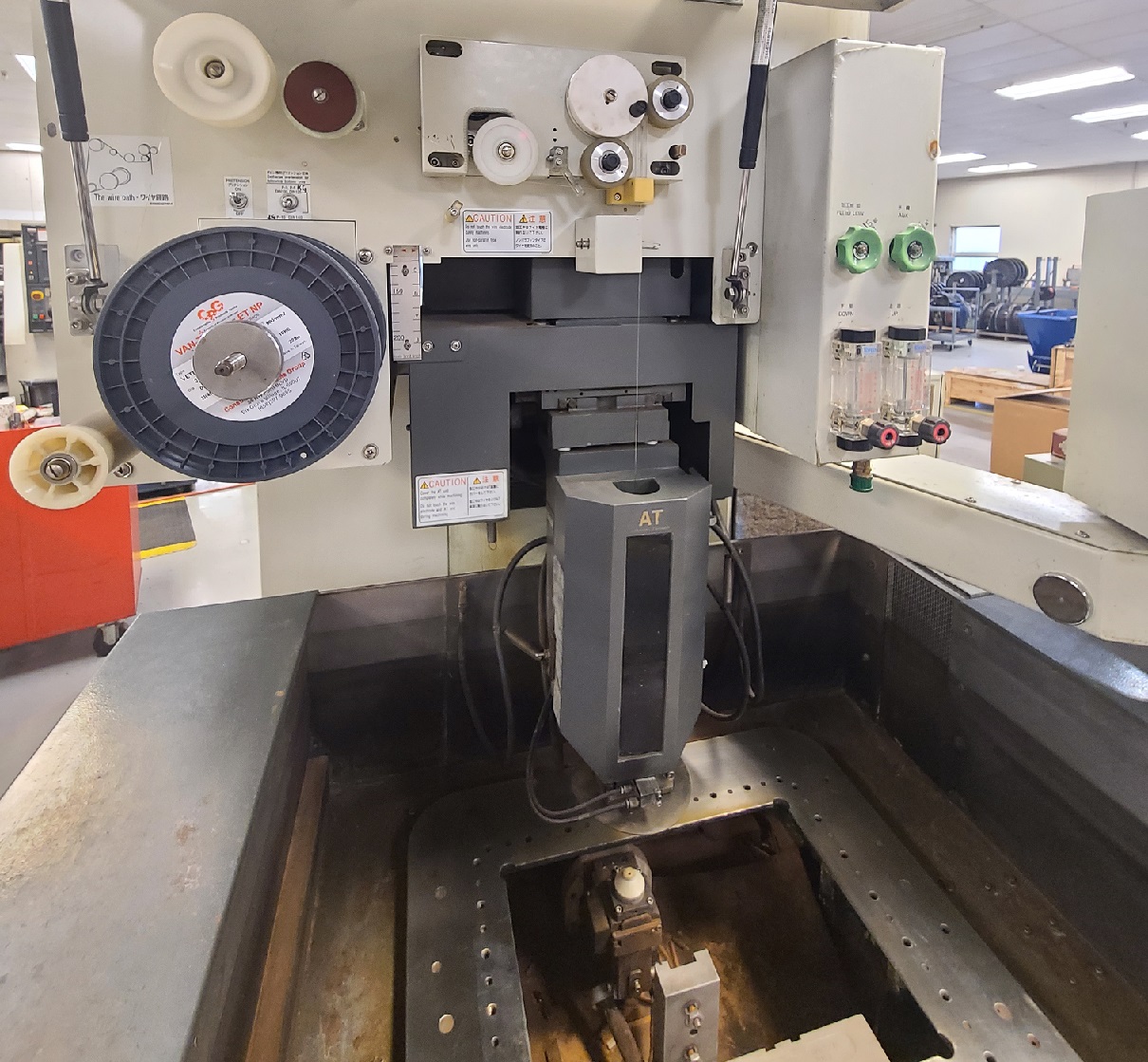

* Automatic Wire Threader (AT)
* Wire Chopper
* Automatic Fluid Level Control
* Auto-Lock Vertical Tank Door Mechanism
* Full 4-Sided Work Table
* Color CRTWith 3D Graphics
* Power Master Control (Automatically Adjusts Power Settings)
* Standard Hand Pendant Control
* Fine-Grain Dianite Casting Material
* Moving Column Design
* Auto Lube System
* Filtration System
* Electric Chiller
System:
* Direct Drive 25mm Ball Screws
* Linear Motion Guide Ways
* AC Servo Drives
* Fine Resolution Encoder Feedback
* All Available Manuals and Accessories
