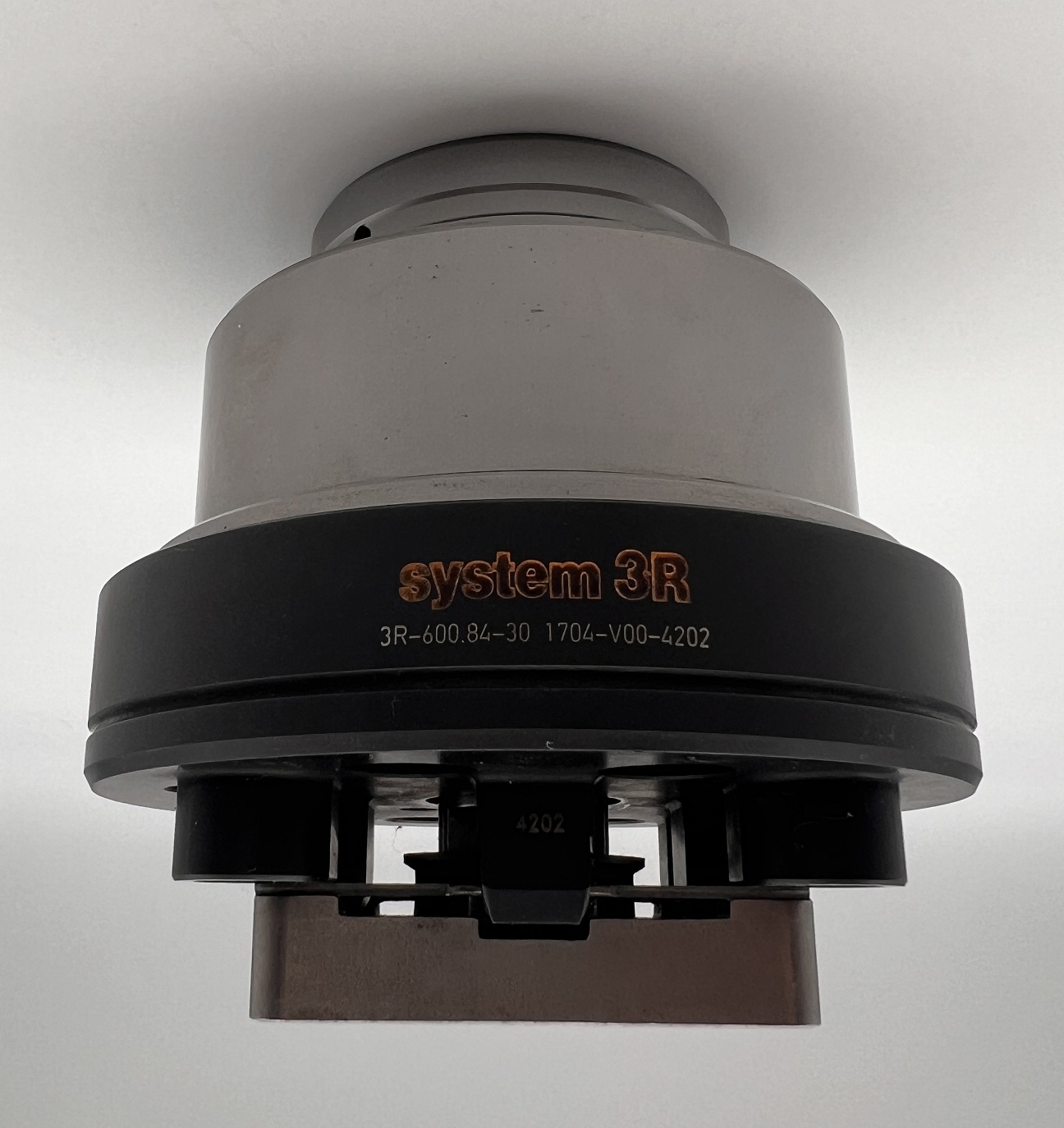

System 3R Automatic Macro Chuck
Stock Number: 9106

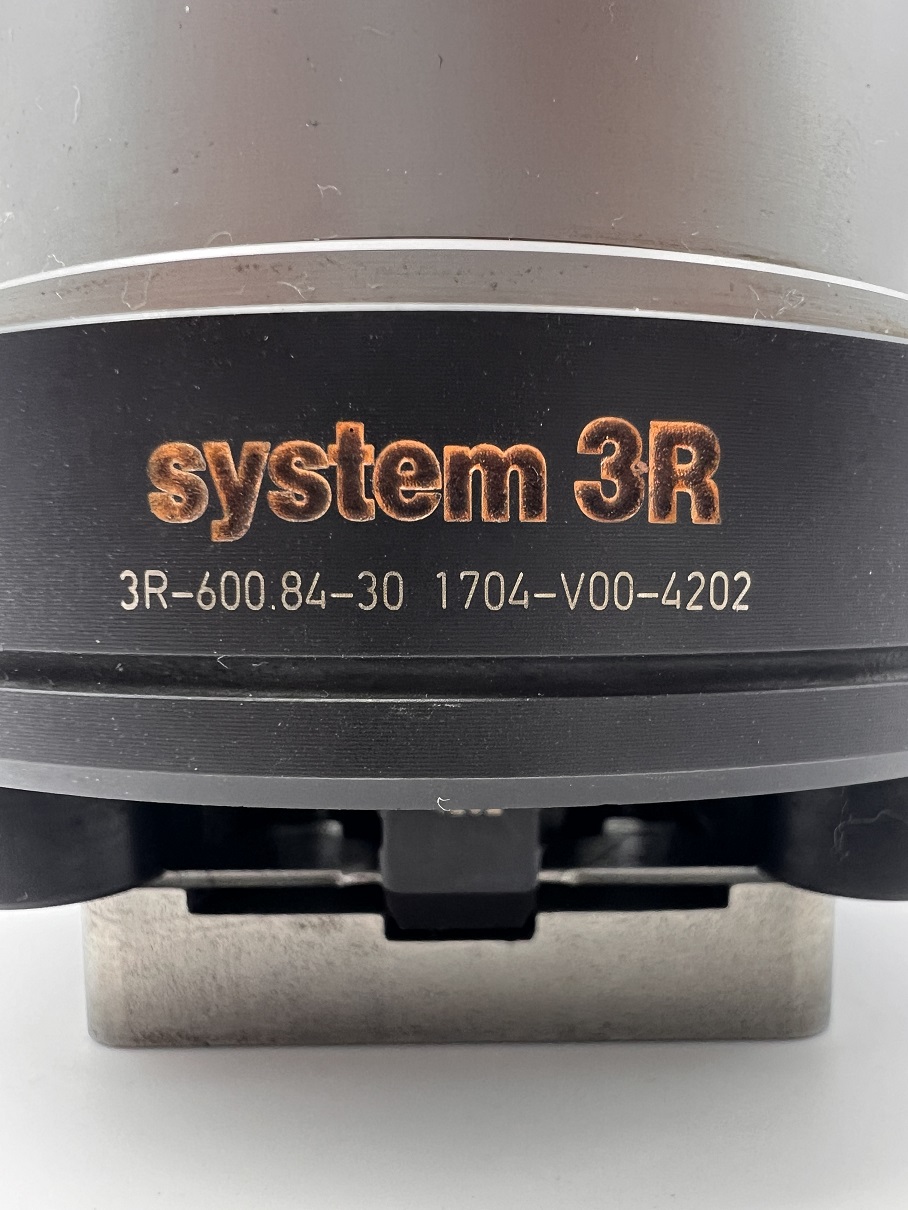

System 3R 3R-600.84-30
Condition: Good - Used
Click to view larger photo
Equipped With:
Pneumatic chuck for mounting directly on the machine spindle. All X/Y/Z references in hardened and ground steel.
Note: When ordering state machine make and type.

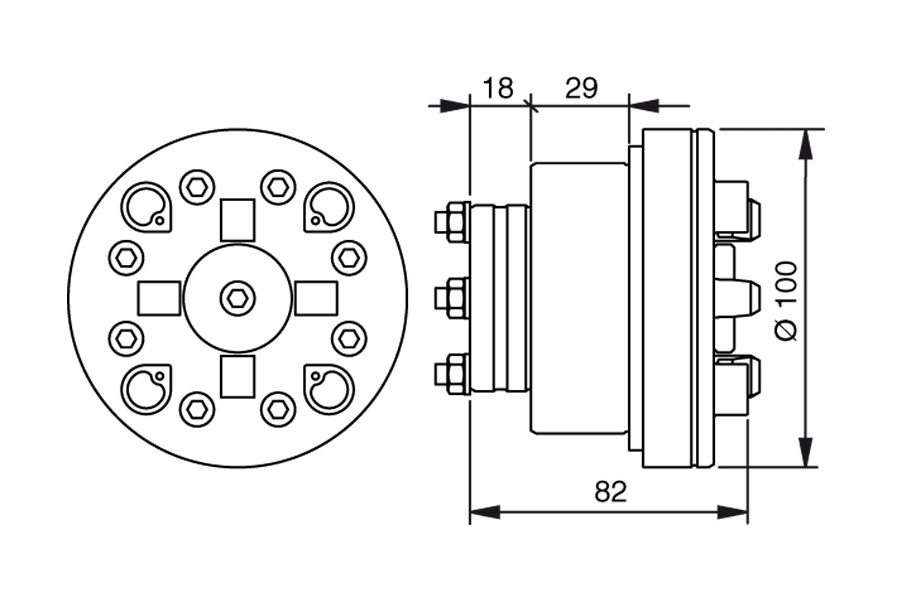

" Four M6 clearance holes, Ø 45 mm.
" Required drawbar 3R-605.1
" Required air pressure 6±1 bar
" Fixed index positions 4x90°
" Air-blast cleaning of the Z-references
" Flushing connection
" Turbo locking
" Weight 2.4 kg.
MacroStandard, MacroHighPerformance & MacroNano
" Repetition accuracy: MacroNano - within 0.001 mm
" Repetition accuracy: MacroHighPerformance - within 0.0015 mm
" Repetition accuracy: MacroStandard - within 0.002 mm
" Locking force - 6000 N
" Fixed index positions 4x90°
" Required air pressure, pneumatic chuck - 6±1 bar
" Recommended tightening torque, manual chuck - 6 Nm
" Recommended max workpiece weight - 50 kg
Spindle Chuck for Agie, Charmilles, AgieCharmilles, or Ona CNC Sinkers
Currently 1 in Stock
