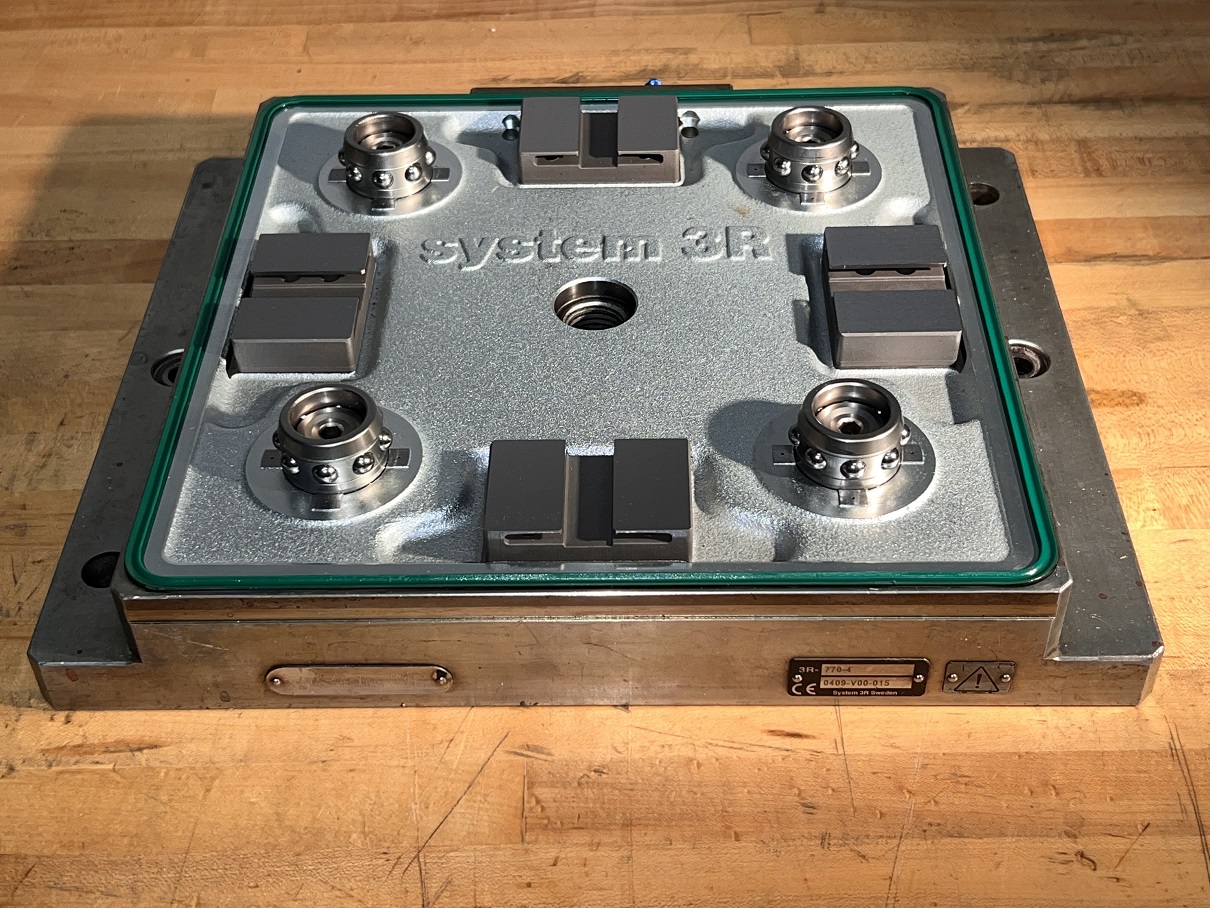

System 3R Dynafix Table Chuck w/Alignment 3R-770.4 $6,650
Stock Number: 9091
System 3R 3R-770.4
Condition: As Is, Where Is
System 3R Dynafix permits machining with optimal cutting data, without sacrificing accuracy and quality. The easy-to-handle aluminium pallets have reference elements of high-alloy steel with directly measurable Z-references.
Locking mechanism with built-in soft-landing function
protects the references and simplifies handling in
applications involving heavy workpieces. In addition,
automatic air-blast cleaning of the Z-references and
peripheral sealing make Dynafix a practical and user-friendly reference system which minimises setting-up times, increases machine capacity and provides a basis for automated production.
Click to view larger photo
Equipped With:
3R-770.4 - System 3R Dynafix Table Chuck
+ Repetition accuracy - within 0.002 mm
+ Locking force = 60 000 N
+ Fixed index positions - 4x90°

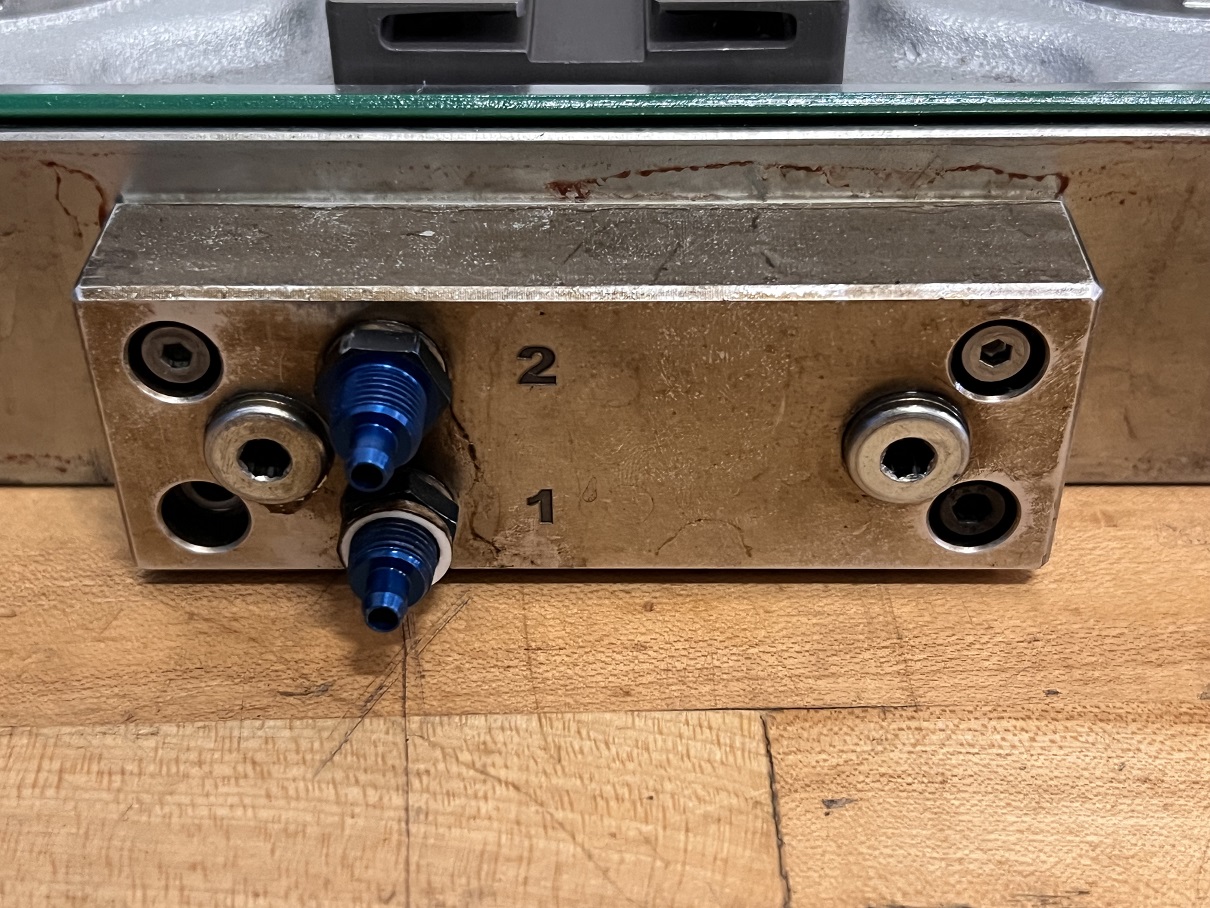

+ Required air pressure, pneumatic chuck = 6±1 bar.
Rapid, precise pallet changing in sizes from Ø25 mm to 400 x 400 mm in the same basic mounting, manually or automatically.
1 Available
