System 3R Dynafix Magnetic Chuck 3R-772.1-MT $4,950

System 3R Dynafix Magnetic Chuck 3R-772.1-MT $4,950

Stock Number: 9090

System 3R 3R-772.1-MT

Condition: Good - Used

System 3R Dynafix permits machining with optimal cutting data, without sacrificing accuracy and quality. The easy-to-handle aluminium pallets have reference elements of high-alloy steel with directly measurable Z-references. Locking mechanism with built-in soft-landing function protects the references and simplifies handling in applications involving heavy workpieces. In addition, automatic air-blast cleaning of the Z-references and peripheral sealing make Dynafix a practical and user-friendly reference system which minimises setting-up times, increases machine capacity and provides a basis for automated production.

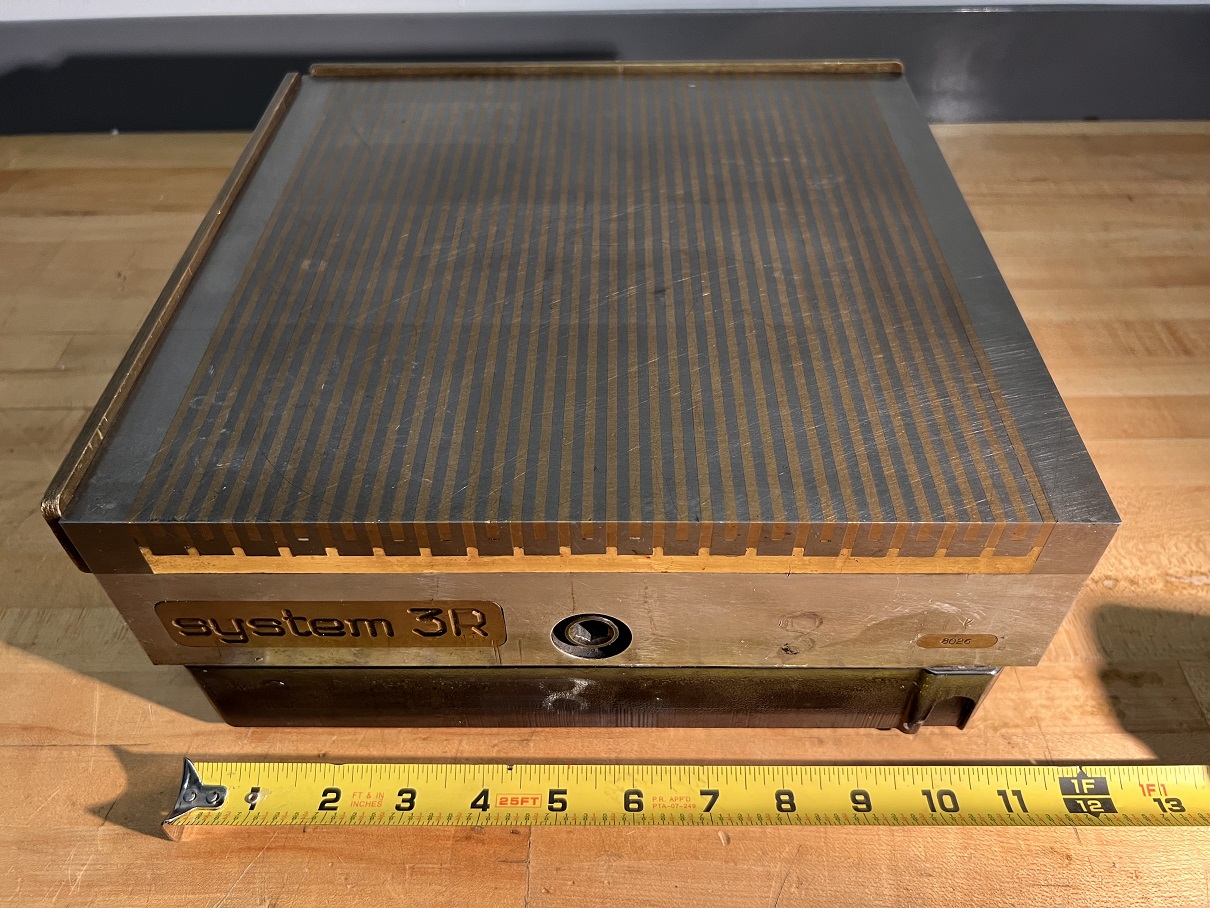

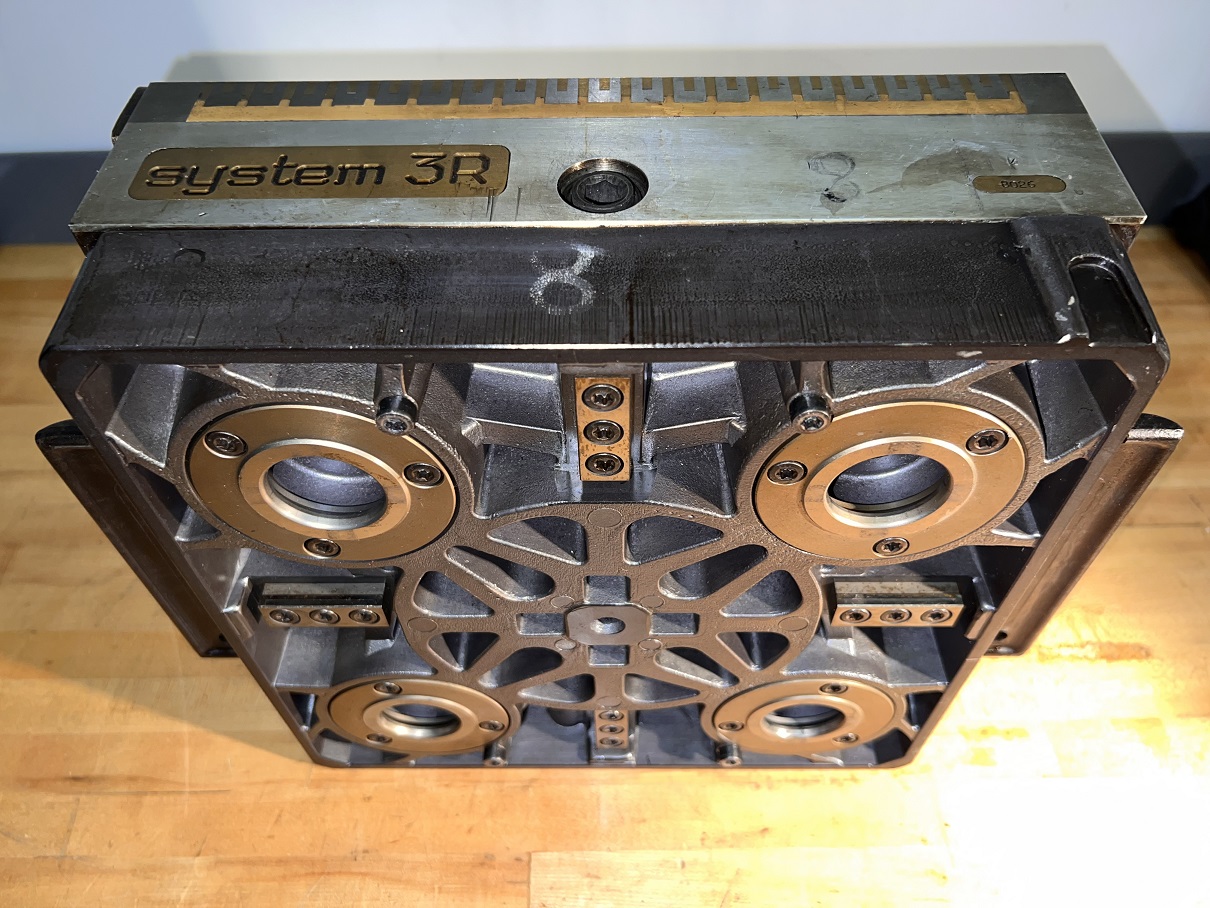

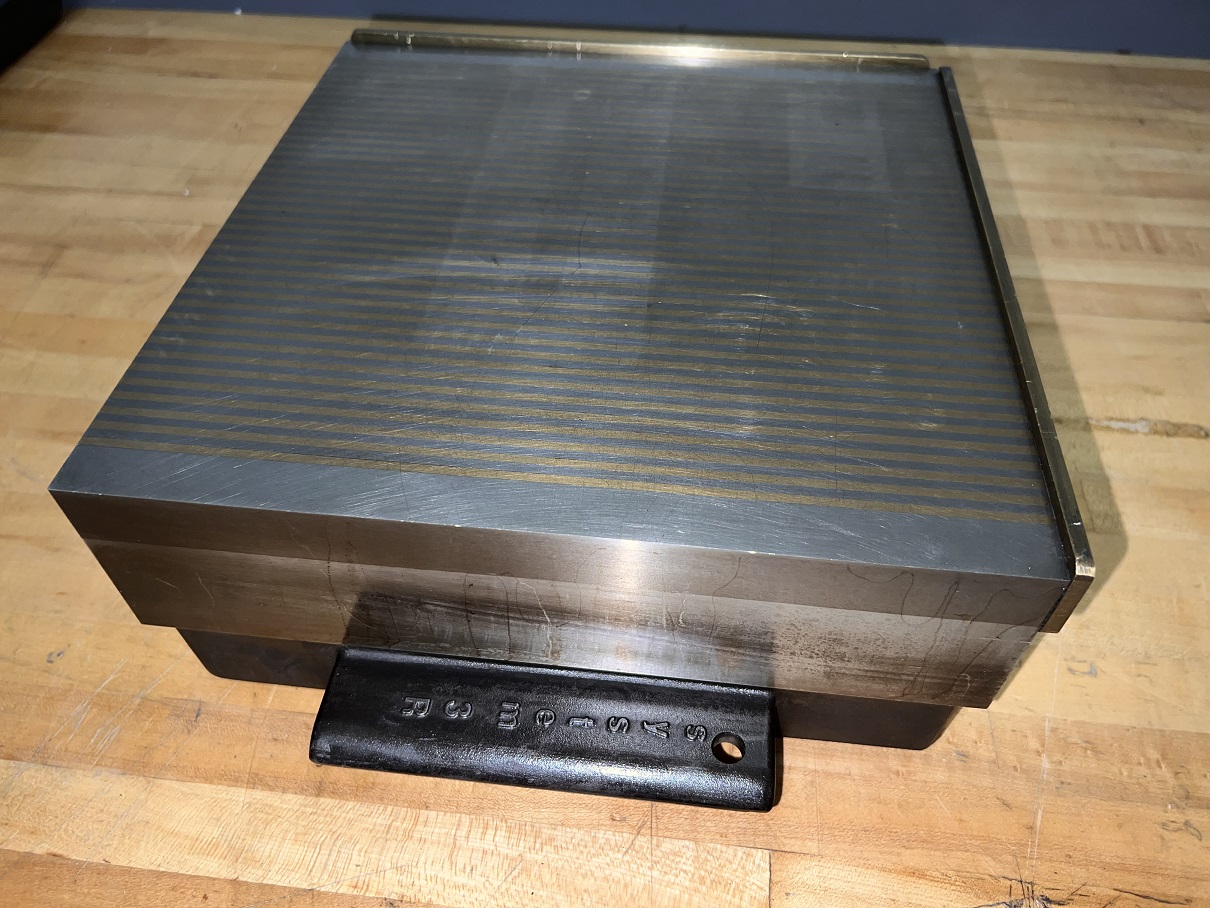

Click to view larger photo


Equipped With:
3R-772.1-MT - System 3R Dynafix Magnetic Chuck Magnet 280x280 mm, 3R-772.1 MT Ground fine pole chuck. * Adapted for automatic changing * Ready for code carrier * Flatness 0.005 mm * Thickness tolerance -0.1/-0.14 mm 1 Available
