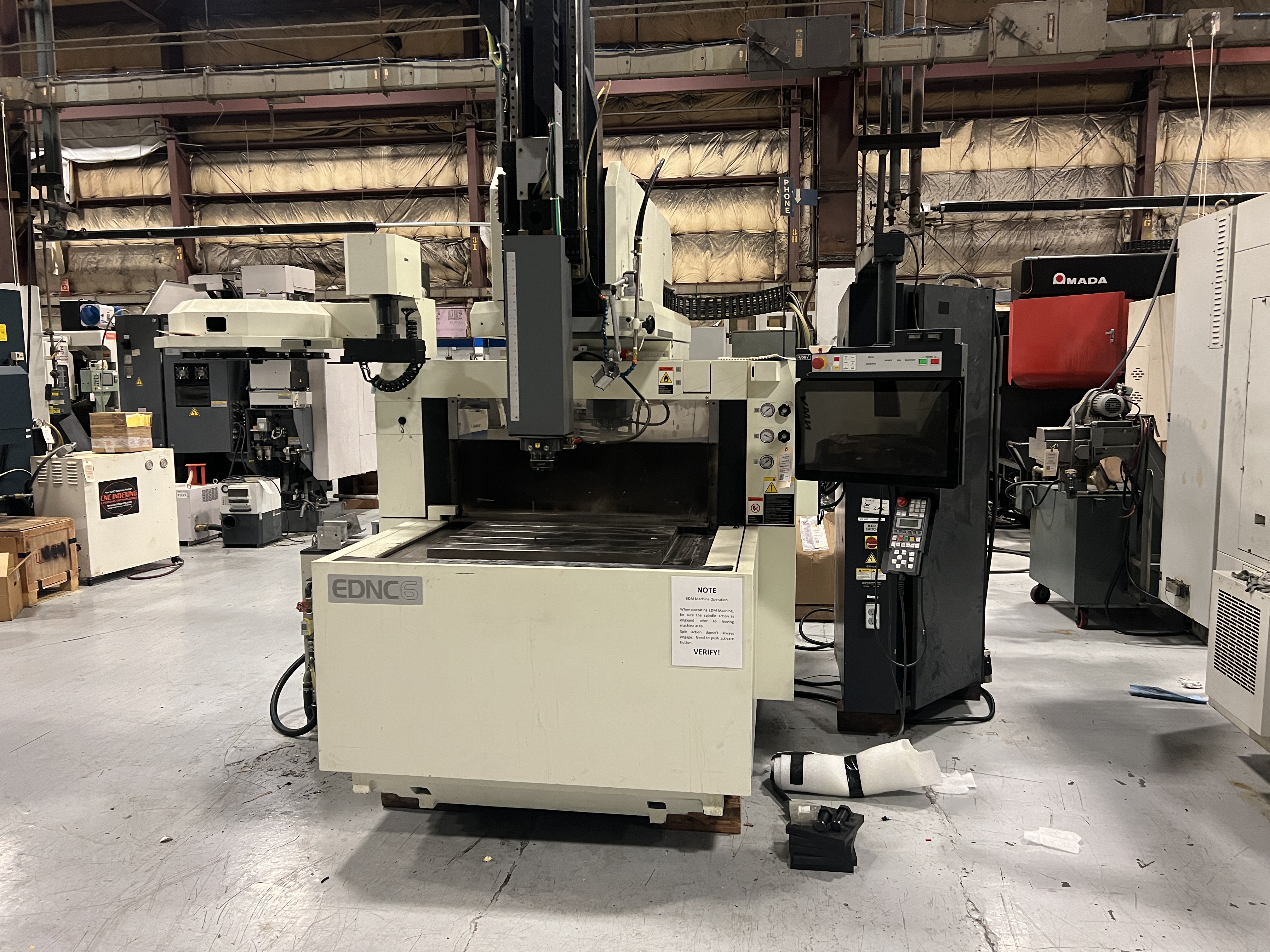

Makino EDNC-6 CNC Sinker EDM
Stock Number: 1144
Makino EDNC-6
Age: 2018
Condition: As Is, Where Is
The performance of the EDNC6 is unmatched with its power and flexibility using the intuitive Hyper-i control system that makes effective use of Makino’s advanced HyperCut and SuperSpark™ IV technologies. Hyper-i uses a wide hi-definition touch screen with a graphical interface that improves machine productivity by intelligently streamlining operations so that operators at all skill levels can achieve the most efficient results. The capability and ease of operation of the Hyper-i control is further enhanced with integrated on-board digital manuals, intelligent E-Tech Doctor help functions and e-learning training system that can be quickly accessed for operator convenience. The Hyper-i control contains many useful functions that assist the operator with programming and operation and ensure the selection of the most productive and efficient process.
Click to view larger photo
| Specification | Description |
|---|
| X-Axis Travel | 25.6" |
| Y-Axis Travel | 17.7" |
| Z-Axis Travel | 13.8" |
| Power Supply | 60 amps |
| Worktank Size | 43.3" x 29.5" x 17.7" |
| Max. Workpiece Weight | 3307 LBS |
| Max. Electrode Weight | 220 LBS |
| Table Size - W | 31.5" |
| Table Size - L | 17.7" |
| | |
Equipped With:

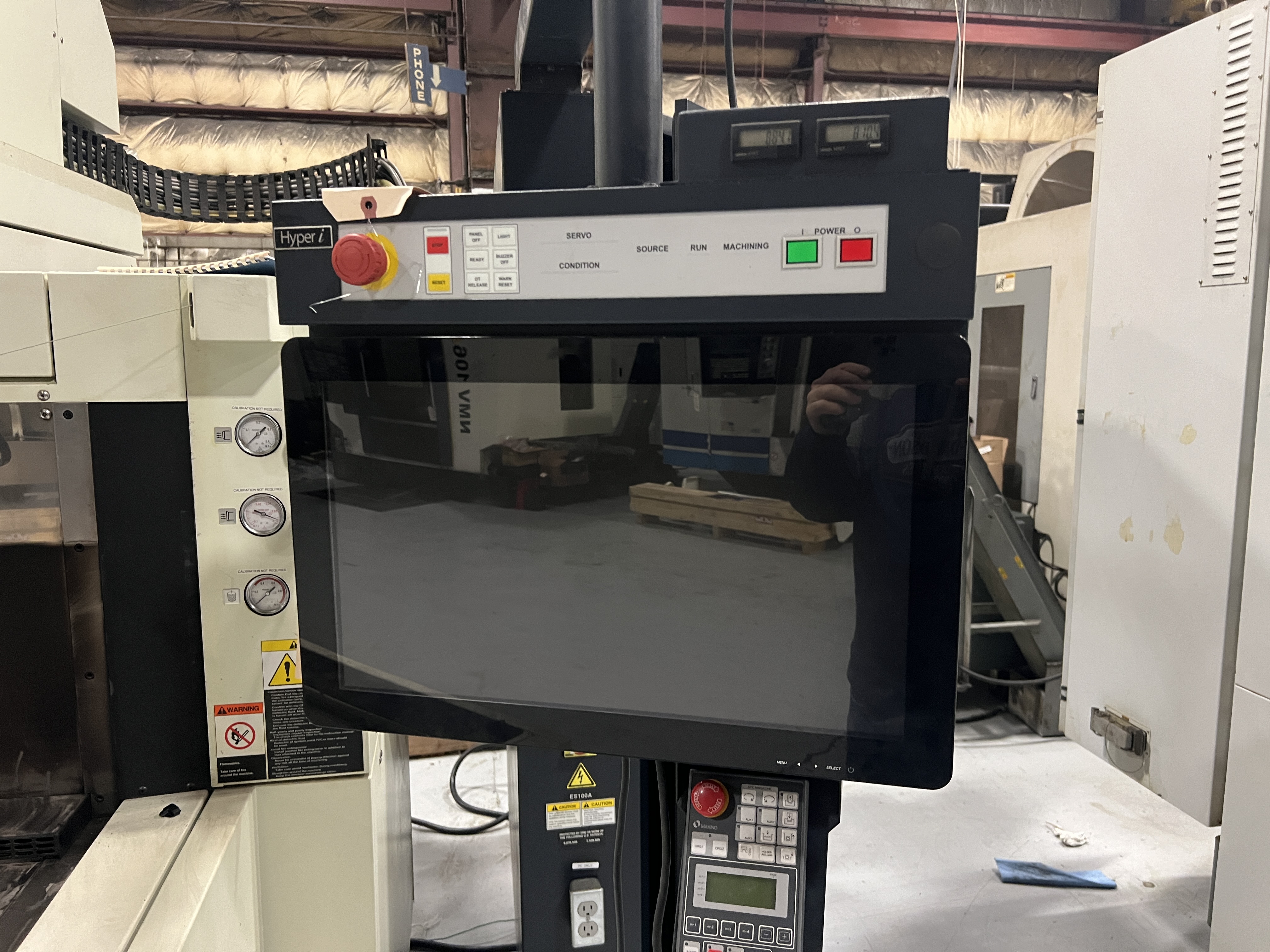

* Hyper i CNC Touchscreen Control with Graphical Interface
* Automatic Fire Extinguisher
* 3-Sided Programmable Rise and Fall Work Tank
* Chiller
* 16 Position ATC
* C-Axis
* All Available Disks and Manuals
