Hurco VMX42 Vertical Machining Center
Stock Number: 2093

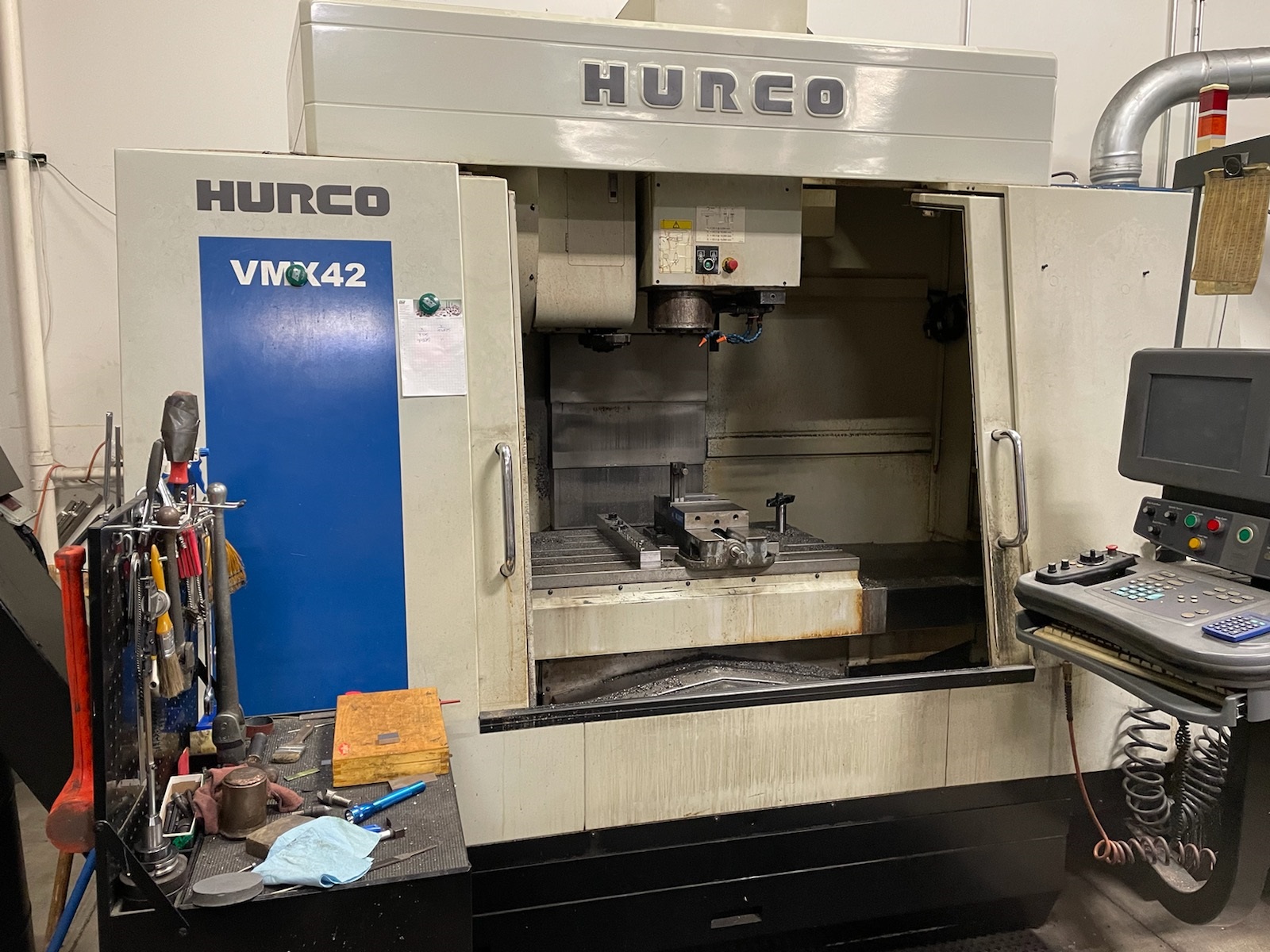

Hurco VMX42
Age: 2007
Condition: As Is, Where Is
Our signature line of VMX machining centers takes CNC machining to the next level. These machines deliver high-precision capabilities to any machining application. Whether you are doing batch production, one-off's, or die/mold work, the VMX CNC mills will make you more productive and your machine shop more profitable.
Click to view larger photo
| Specification | Description |
|---|
| Machine Travels (X,Y,Z) | 42" x 24" x 24" |
| Table Size | 50" x 24" |
| Max Work Load | 3,000 lbs |
| Spindle Motor | 24 HP |
| Spindle Speed | 10,000 RPM |
| Tooling Type | CAT40 |
| Number of ATC Stations | 24 |
| Max Tool Diameter | 3.5" |
| Max Tool Length | 9.8" |
| Max Tool Weight | 15.5lbs |
| Rapid Traverse Rate | 1,378 IPM |
| Max Programmable Feedrate | 300 IPM |
| Coolant Tray Dimensiions | 16" x 48" x 15"H |
| Coolant Tray Weight | 62 lbs |
| Machine Dimensions | 141" x 86" x 106"H |
| Machine Weight | 14,100 lbs |
Equipped With:

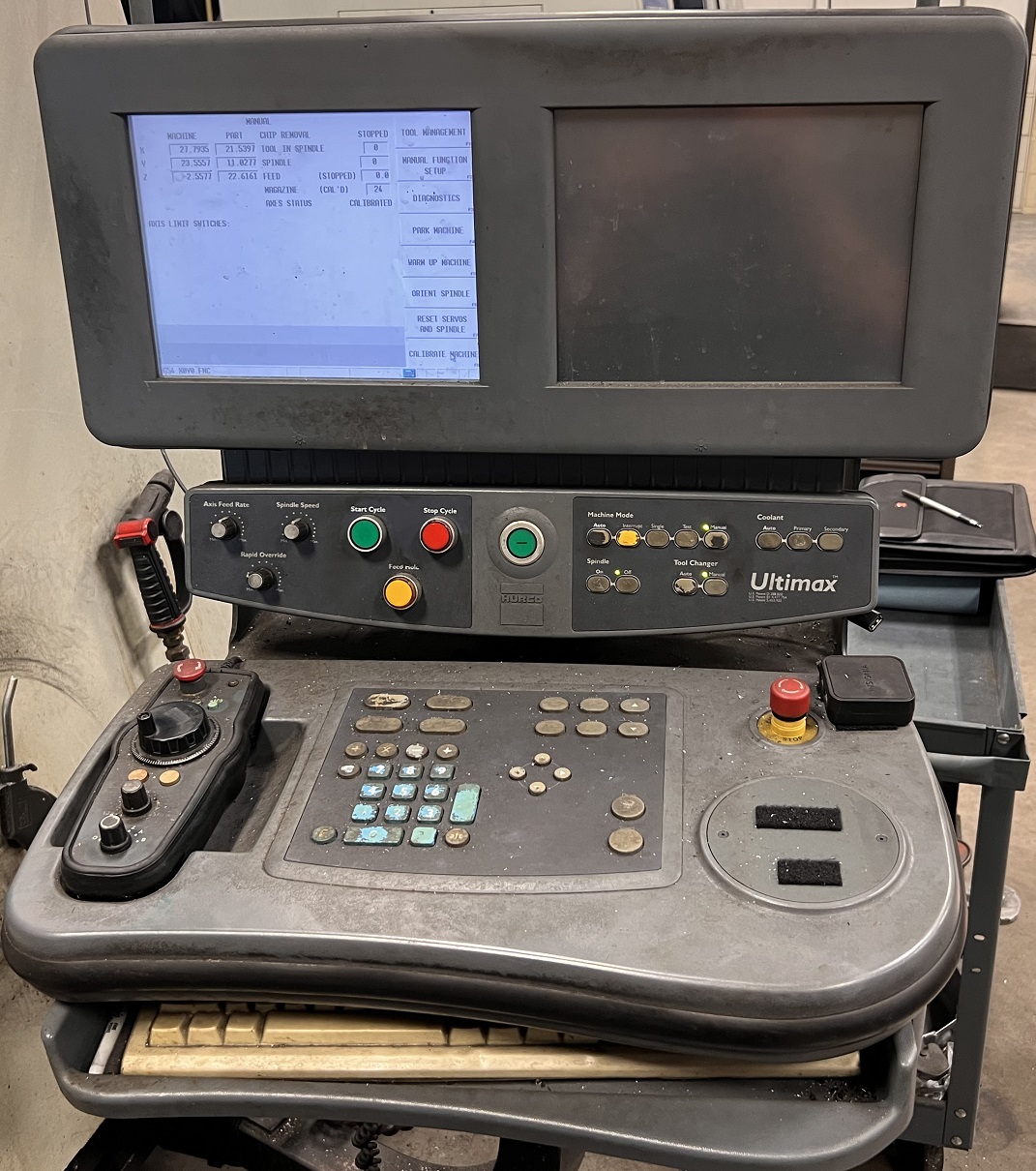

* Hurco WinMax CNC Control
* 10,000 RPM Spindle
* 24 Tool Swing-arm ATC
* Rigid Tapping
* Ethernet, USB, & RS232
* Chip Conveyor
* Coolant Tray
* Spindle Chiller
* All Available Manuals & Accessories
** Table vise and tooling shown are NOT included with the machine.
