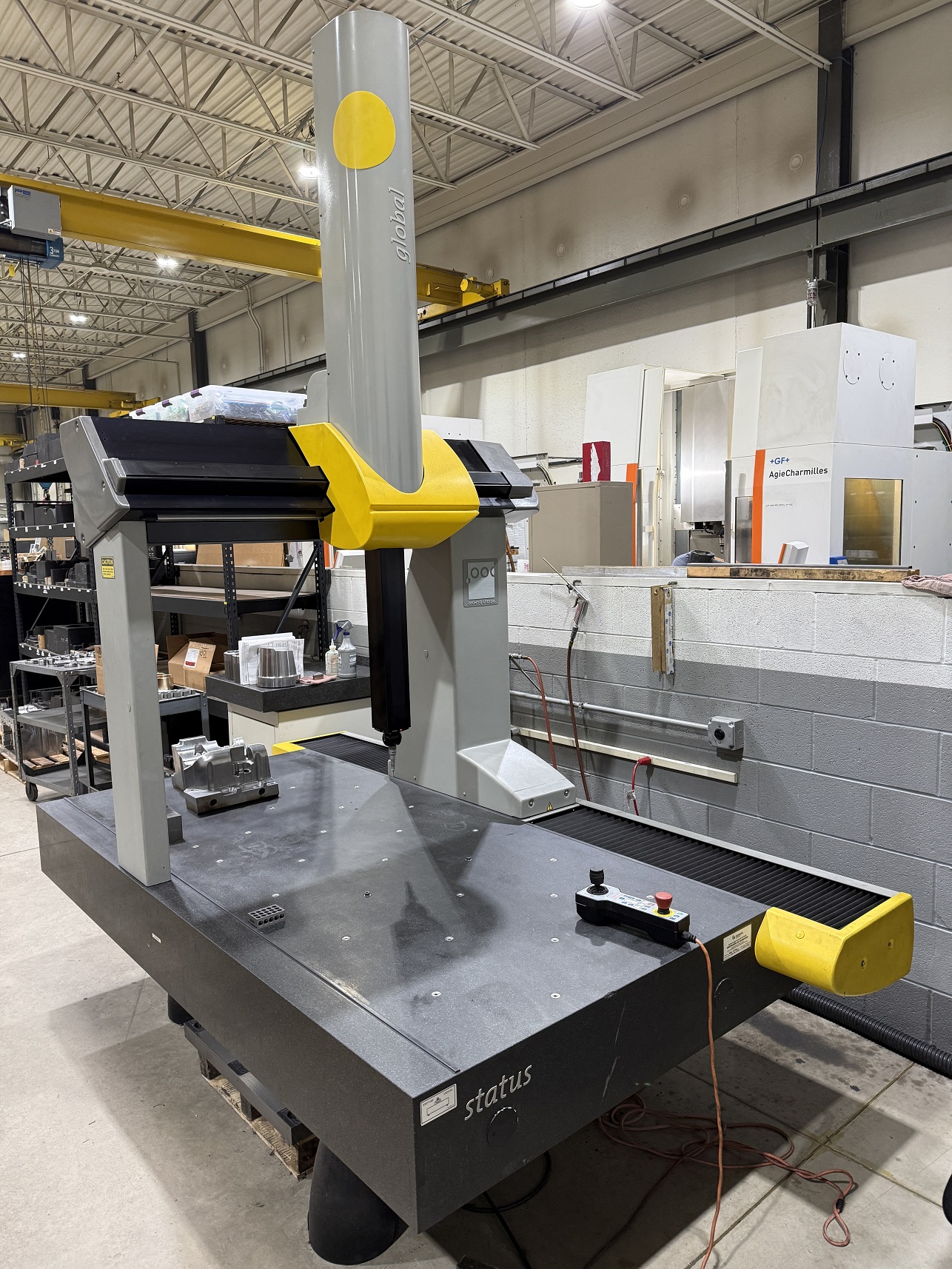

Brown & Sharpe Global Status 9158 5P Coordinate Measuring Machine

Brown & Sharpe Global Status 9158 5P Coordinate Measuring Machine

Stock Number: 6086

Brown & Sharpe Global Status 9158 5P

Age: 2003

Condition: As Is, Where Is




Click to view larger photo

SpecificationDescription
Measuring Range / Axis Travel (X,Y & Z)35.4" x 59.0" x 31.5"
Maximum Work Capacity (X, Y & Z) 40.5" x 91.7" x 33.0"
Scale Resolution.00002"
Maximum Vector Positioning Velocity20.5"/Sec
Maximum Acceleration68.2"/Sec
Guide MethodAir Bearings on Each Axis
Measuring SystemLinear Encoder
Workpiece ClampingM8 x 1.25
Electrical Requirement115VAC/50-60HZ/15A
Air Requirement:70 PSI min
Machine Size60" x 110" x 121"H
Machine Weight5,663 lbs

Equipped With:

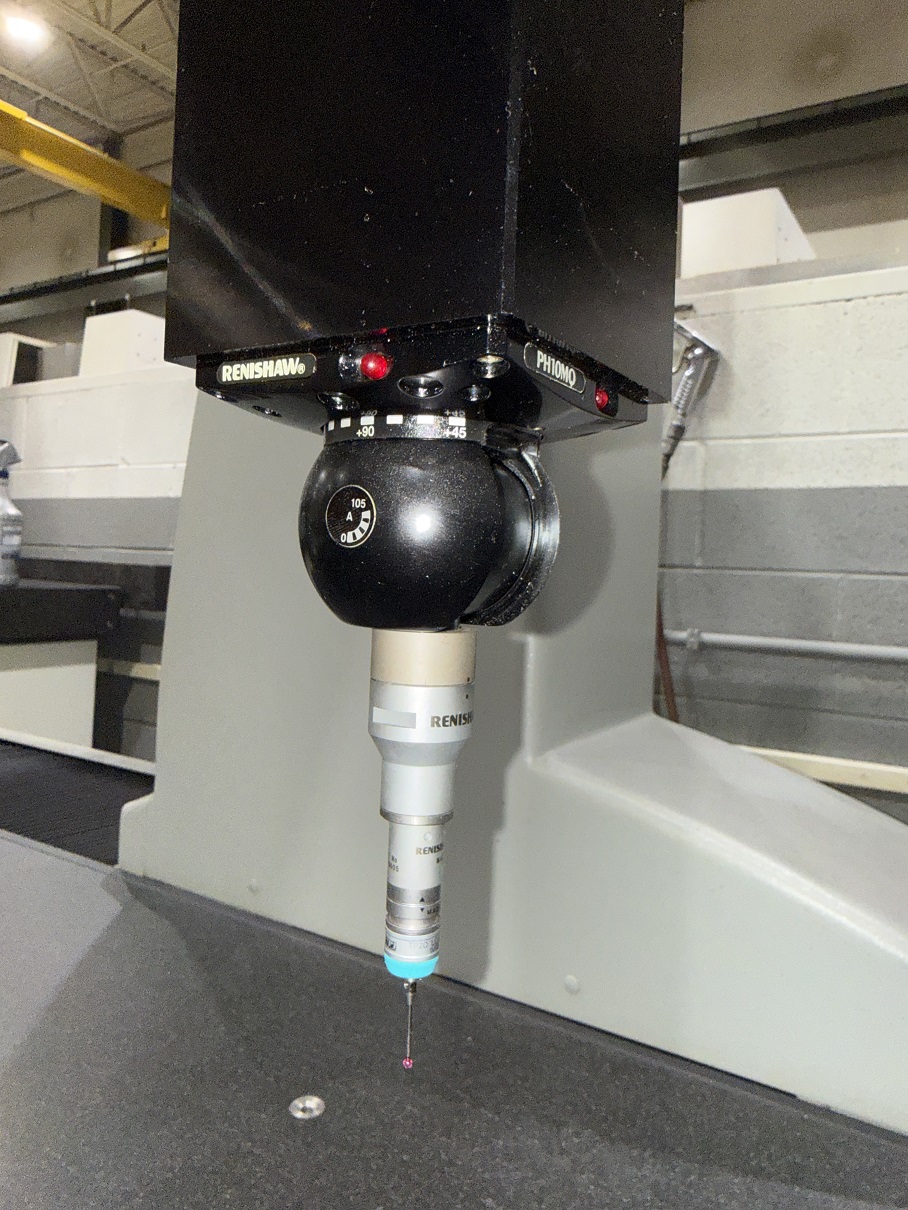

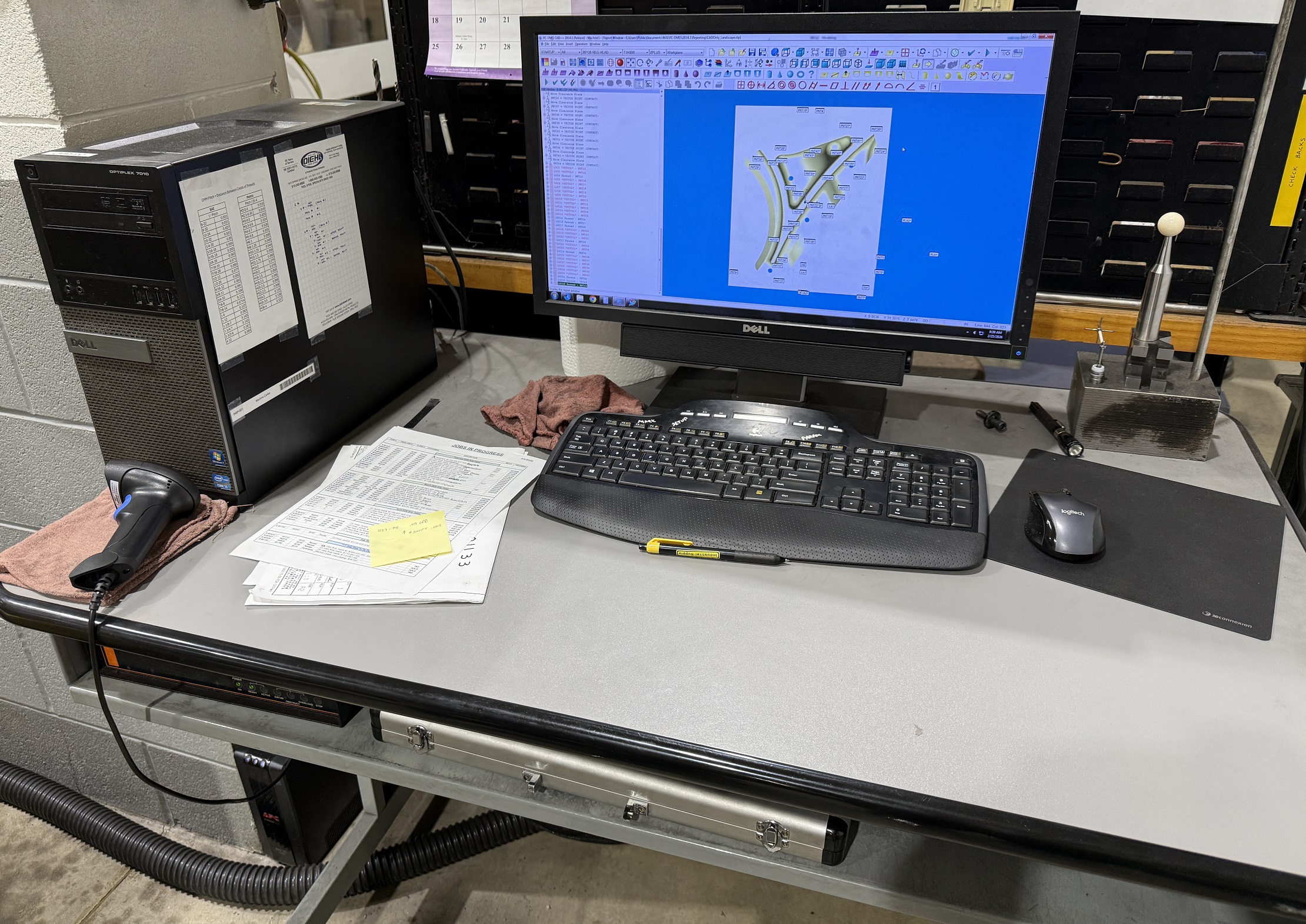

* GLOBAL Status Base Machine * GCI GLOBAL Control System * Renishaw Motorized Probe Head (PH10MQ) * Renishaw Touch Trigger Probe (TP20) * 25mm Certified Reference Sphere * Refrigerent Air Dryer * Computer Control with Workstation * PC-DMIS CAD ++ Software * Unigraphics Direct CAD Interface * Advanced Hand Pendant * All Available Manual and Accessories
